Customize the Azure Monitoring and Alerts Basic overview tiles
Azure Monitoring and Alerts Basic provides three overview tiles for each resource: Database Performance, Performance Overview, and Web App Hosting Plan Performance. The tiles are located, under Overview.
Each of the tiles has a dashboard comprised of parts (granular pieces of information that, when combined, provide a specific overview). You can customize the dashboard of your overview tiles to suit your needs by modifying the existing parts. For example, by default in the Web Applications Load tile, there are three parts (CPU Time per app, Requests per second, and Latency), that make up the overview for the Web Applications Load dashboard.
Prerequisites
Before you can customize the Overview tiles, you must have the following:
-
A Microsoft Azure™ subscription and portal credentials.
-
The Microsoft Azure Operations Management Suite (Azure Monitor), with the Sitecore Azure Monitoring and Alerts Basic module installed.
-
A general understanding of Azure Monitor, including the basic settings and features.
Modify an existing tile
The Azure Monitoring and Alerts Basic module creates several tiles that provide an overview of various analytics tools. You can find the overview tiles in the Azure Monitor workspace summary.
To modify an existing tile:
-
In the Microsoft Azure menu, click Resource groups, and open the resource group that you want an overview for.
-
Open the Log Analytics (Azure Monitor) resource, then click Workspace summary.
-

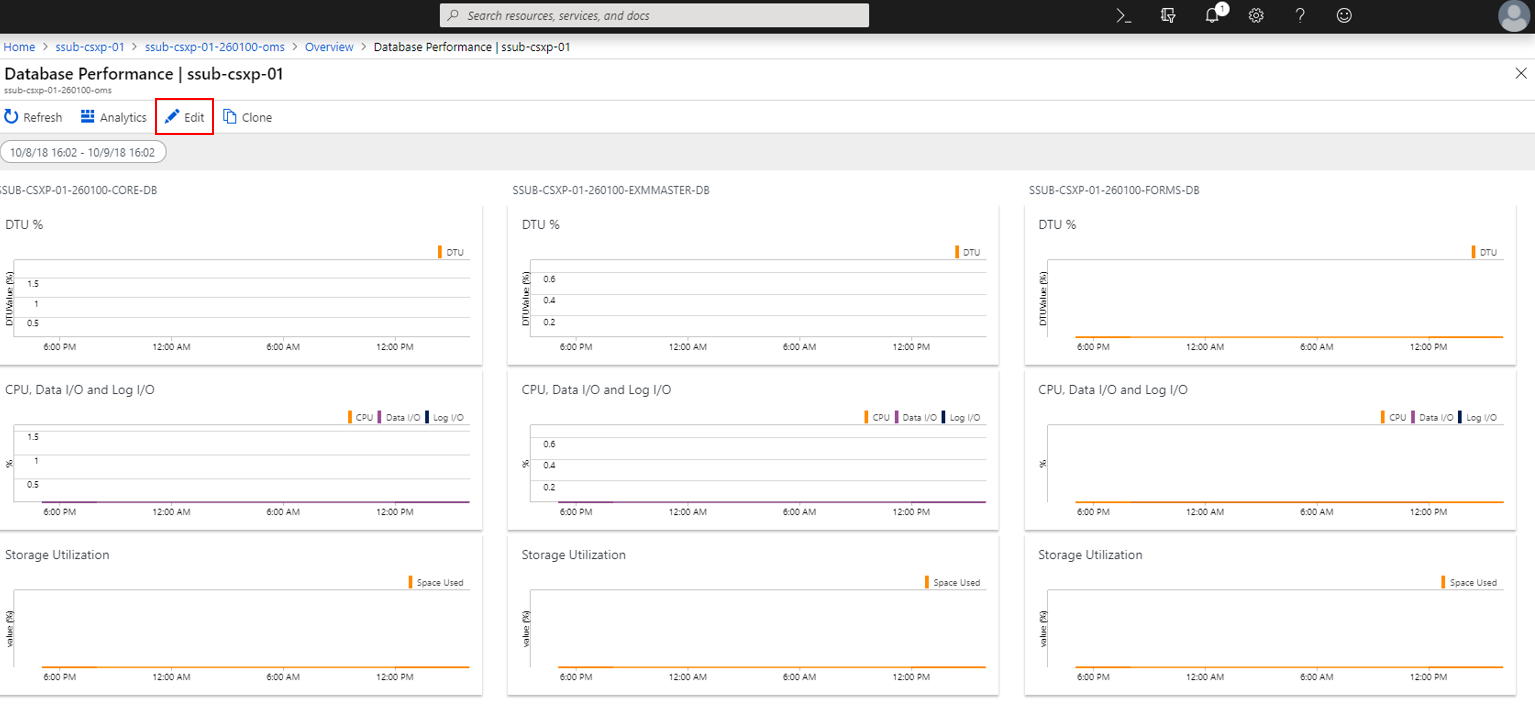

Click one of the tiles to open a new page displaying the dashboards within that tile. For example, on the Database Performance tile, you can view the performance of your databases, including:
-
DTU%
-
CPU, Data, I/O, and Log I/O
-
Storage utilization Overview of tiles
-
-
To display the tile customization page, on the ribbon, click Edit.
-

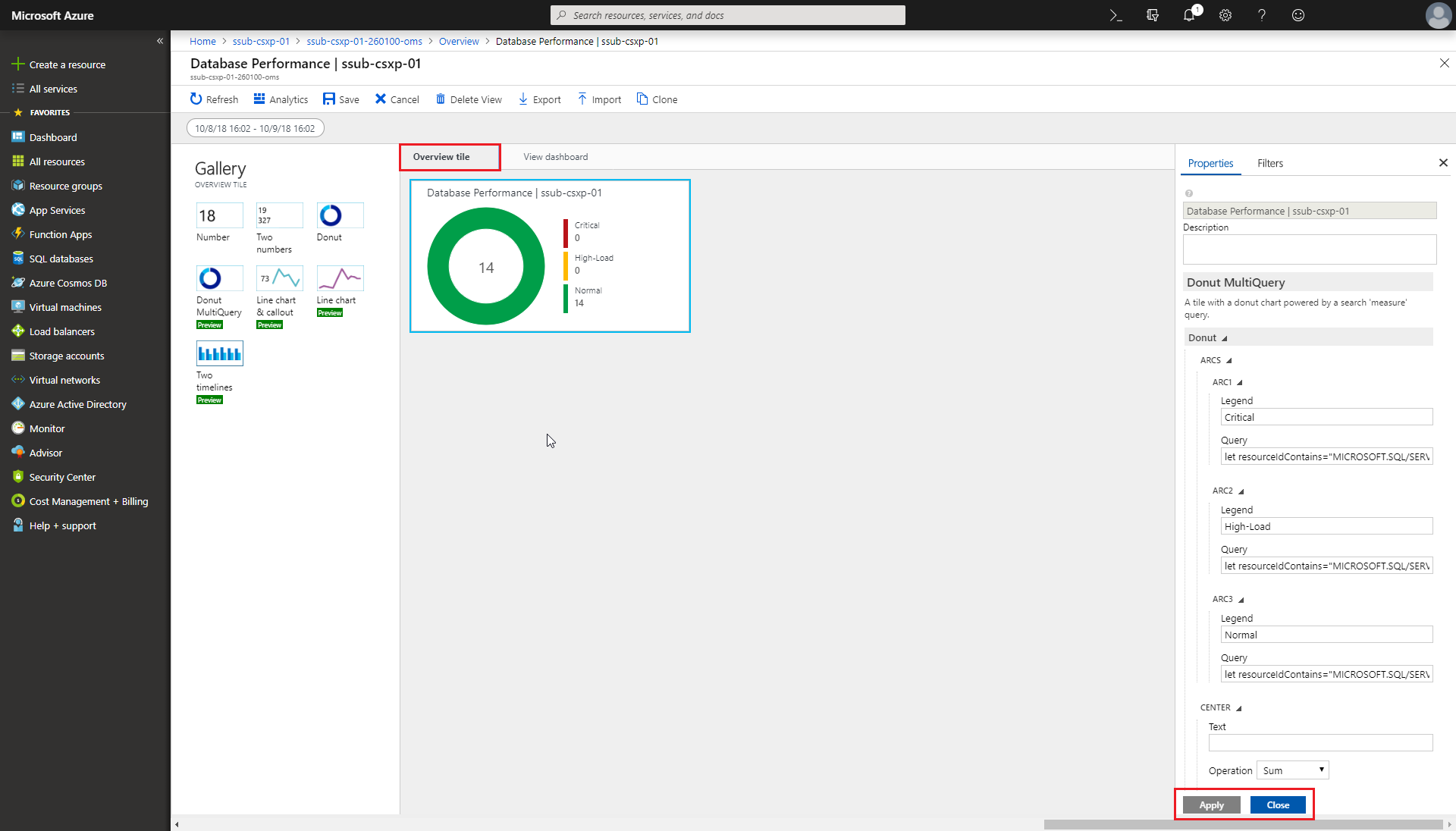

On the tile customization page, click Overview tile. You can change your tile by selecting one of the items in the gallery panel. You can also change the properties of the tile or apply filters by using the panel on the right.
-
To apply your changes, click Apply and Close. On the ribbon, click Save.
