Activity type parameters

Version:

Activity parameters are properties that allow custom values to be passed into an activity. Activity parameters are made up of:

A public property in an activity type class, for example:

using Sitecore.Xdb.MarketingAutomation.Core.Activity;
using Sitecore.Xdb.MarketingAutomation.Core.Processing.Plan;
using Microsoft.Extensions.Logging;

namespace Documentation.Examples
{
    public class DoNothingActivity : IActivity
    {
        public IActivityServices Services { get; set; }

        // Parameters
        public string NoReplyAddress { get; set; }

        public DoNothingActivity()
        {
        }

        public ActivityResult Invoke(IContactProcessingContext context)
        {
            // This activity does nothing
            return new SuccessMove();
        }
    }
}

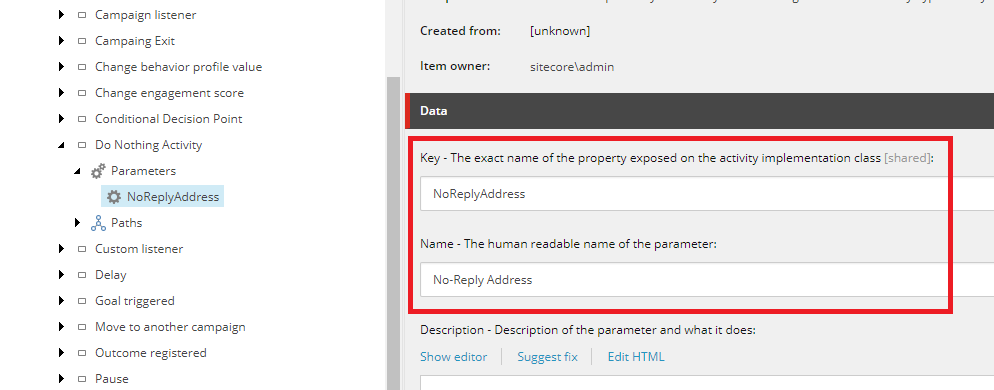

A parameter item under the activity type descriptor. For example:

Setting an activity type parameter

Note

The following steps are performed by the Marketing Automation UI.

Activity parameters are set by the Automation Plan Definition Manager. If an AutomationActivityDefinition uses a the DoNothingActivity type, you can pass in an optional NoReplyAddress.

The following example assumes that the descriptor item ID of the DoNothingActivity is {56632708-510a-46fd-995d-6a4a709e90d4}. Parameters are passed into the Parameters dictionary as shown:

var newActivity = new AutomationActivityDefinition
{
        Id = Guid.NewGuid(), // ID of this instance
        ActivityTypeId = Guid.Parse("56632708-510a-46fd-995d-6a4a709e90d4"),
        Name = "Do nothing activity",
        Parameters =
        {
                { "NoReplyAddress", "[email protected]" }
        }
};

Note

In this example, the NoReplyAddress parameter is hardcoded. If you were building a UI to create automation plans, you would use the Activity Type Descriptor Locator API to get a list of all available parameters for a particular activity type and prompt the user to supply a value.

Get all activity type parameters

Use the Activity Type Descriptor Locator API to retrieve all available parameters for a particular activity type. The following example demonstrates how to get the key and name of every parameter for a particular activity type:

using System;
using Sitecore.Xdb.MarketingAutomation.Locators.AutomationPlans;
using Sitecore.DependencyInjection;
using Microsoft.Extensions.DependencyInjection;
using System.Globalization;

namespace Documentation.Examples
{
    public class Locators
    {
        public void LocatorsExample()
        {
            var locatorService = ServiceLocator.ServiceProvider.GetService<IActivityDescriptorLocator>();

            var activityTypeDescriptorId = Guid.Parse("{56632708-510a-46fd-995d-6a4a709e90d4}");

            var descriptor = locatorService.GetDescriptor(activityTypeDescriptorId, CultureInfo.InvariantCulture);

            foreach (var parameter in descriptor.Parameters)
            {
                var key = parameter.Key; // Exact name of property
                var name = parameter.Name; // Human-readable name
            }
        }
    }
}
