The ConditionItem activity type

Version: 9.2

The ConditionItem activity type helps define the logic when Marketing Automation enrolls contacts into campaigns.

You use the ConditionItem activity type to wait for a contact interaction or a time-out before you decide between two different marketing actions. For example, you can offer a contact to sign up for a newsletter. If the contact signs up you can continue along the Yes path and send a thank-you message. If the contact does not sign up or does nothing for a period of time, you can choose to proceed along the No path.

Item structure

The ConditionItem activity type contains the following structure:

Illustration showing the structure of the ConditionItem activity type.

Properties

The ConditionItem activity type has the following properties:

Ingoing paths

1

Outgoing paths

2

Title and subtitle

Displayed when the activity type parameters are defined.

Logic positions

Before or after the outgoing paths of other ConditionItem activity types.

Supported CSS classes

The ConditionItem activity type supports the following CSS classes:

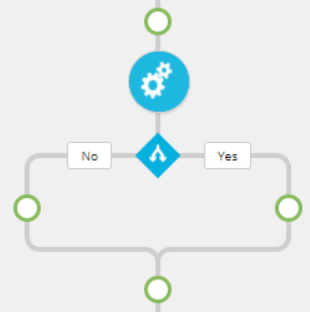

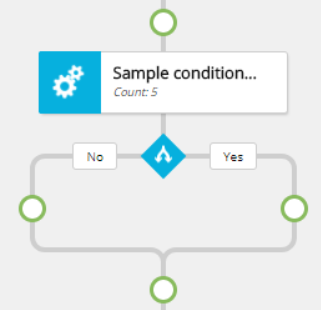

CSS class

Undefined

Defined

listener

Sample TypeScript implementation

This is a sample implementation of the ConditionItem activity type:

RequestResponse
sample/src/sample-condition-item-activity-type.ts

import { ConditionItem } from '@sitecore/ma-core';

export class SampleConditionItemActivityType extends ConditionItem {

  getVisual(): string {
    const subTitle = this.isDefined ? 'Count: ' + this.editorParams.count : '';
    const cssClass = this.isDefined ? '' : 'undefined';

    // The CSS class can only be listener.
    return `
      <div class="listener ${cssClass}">
        <span class="icon">
          <img src="/~/icon/OfficeWhite/32x32/gearwheels.png" />
        </span>
        <p class="text with-subtitle" title="Sample condition item">
          Sample condition item
          <small class="subtitle" title="${subTitle}">${subTitle}</small>
        </p>
      </div>
    `;
  }

  get isDefined(): boolean {
    /*
      The editorParams property value is the object that is serialized from the activity editor.
      If the activity is undefined, the editorParams property will evaluate to {}.
    */
    return Boolean(this.editorParams.count);
  }
}
