Renderings (Scriban)

Customizing the Commerce Search Results rendering

Version:

The Commerce Search Results rendering variant includes a renderer in the form of a Scriban template.

The Scriban template is responsible for rendering the markup for the individual product cards. It is executed within a loop that iterates over the product items. To change the markup generated for the product cards, you can modify the Scriban template. It is best to create a new custom rendering variant in this case so that the customization does not get overridden during software upgrades. You can also modify the labels for the rendering.

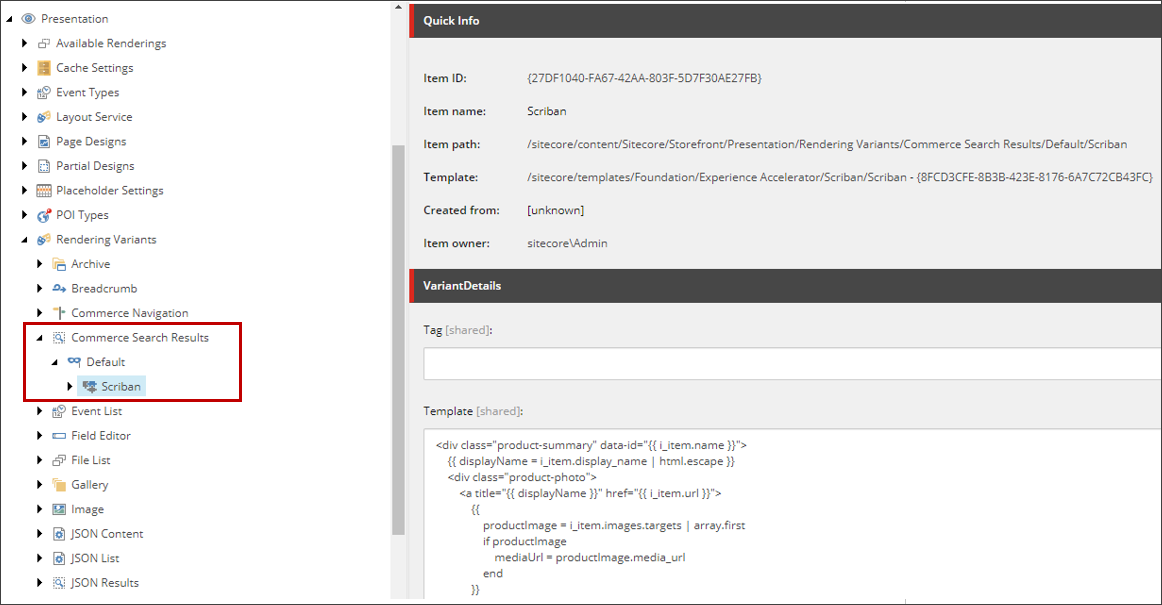

Location of the Scriban template in the content tree

The following table details key properties of the Commerce Search Results rendering Scriban template.

Property or Variable	Description
`i_item`	The `i_item` property is the current item in the context of the rendering variant. Often, an equivalent to the `i_datasource` item but, in this case, it is exposing catalog data for the individual items. In the default implementation, it is assumed that items are all of type `products`, but items can also be bundles, categories, or variants. The `i_item` item is used to store various types of data in this template. For example, the `i_item.name` property stores the Product ID and is assigned to a data attribute named `id`, and the `i_item.url` property stores the link to the product detail page and is assigned to the href attribute.
`o_model`	The `o_model` property is passed to the MVC Controller rendering. This means the name of the catalog and the product bundle ID are passed to the MVC Controller. The `o_model` property is also used to pass along price and promotion information.
`displayName`	The displayName variable is used in various contexts. For example, it is initialized to `i_item.display_name`, which stores the Display Name of the product. The variable is passed into the built-in function `html.escape` so that the returned string is a text block. It is also assigned to the `title` attribute in the anchor tag. The `i_item.url` property, which stores the link to the product page, is assigned to the `href` attribute. The `displayName` variable is also assigned as text for the `anchor` tag.
`sc_imagelink`	The image link is retrieved using the `sc_imagelink` function on a `CatalogProductImage` object. Configure the source for catalog images and the result either comes from the Media Library or Digital Asset Management system depending on the settings you define. The function expects a parameter object of type `CatalogProductImage` that represents the product image and the `o_model.master_product_image` property that contains the `CatalogProductImage` object for the main/hero product image.
`sc_translate`	This function is used to display items defined in the Dictionary Domain of the site (sitecore/Content///Storefront Dictionary).
`i_item.brand`	This property stores the brand name of the product and is displayed in the `<div>` element.

The following code shows the Commerce Search Results rendering Scriban template defined within the default rendering variant.

{{ # The <div> element renders a product item with values from the search item (i_item) and the ProductSummaryViewModel (o_model) }}
<div class="product-summary" data-id="{{ i_item.name }}">
    {{
        # If the o_model is not available, set it to an empty object to be accessed by the rest of the template without null reference error
        if !o_model
            o_model = {}
        end

        # Escape any HTML characters in the display name
        displayName = i_item.display_name | html.escape
    }}
    {{ # The <div> element contains the product photo }}
    <div class="product-photo">
        {{ # The <a> element wraps the product photo with a link to navigate to the product page }}
        <a title="{{ displayName }}" href="{{ i_item.url }}">
            <img src="{{ o_model.master_product_image | sc_imagelink 220 220 }}" alt="{{ o_model.master_product_image.alternate_text }}" />
            {{ ## The <div> element contains the savings percentage and savings label.
                  The CSS class "promotion" is added on server side (if "o_model.is_on_sale" is true) or on client side after the data binding (if "promotion" has a true value). ## }}
            <div data-bind="css: { 'promotion': promotion }"
                class="hidden {{ if o_model.is_on_sale  }} promotion {{ end }}">
                {{ # The promotion text is rendered on server side and will be overwritten on the client side if data binding occurs }}
                <span data-bind="text: promotion" class="savings-percentage">{{ o_model.savings_percentage }}%</span>
                <span class="savings-label">{{ sc_translate 'SAVINGS_LABEL' }}</span>
            </div>
        </a>
    </div>
    {{ # The <div> element contains all the product information such as the display name and price }}
    <div class="product-info">
        {{ # The <a> element wraps the product display name with a link to navigate to the product page }}
        <a class="product-title" title="{{ displayName }}" href="{{ i_item.url }}">
            {{ displayName }}
        </a>
        <div class="product-brand">
            {{ i_item.brand }}
        </div>
        {{ # The <div> element contains the stock status of the product and a "Starting From" label }}
        <div class="product-indicator">
            {{ ## The <label> element contains the "Starting From" label.
                  The CSS class "price-difference" is added on server side (if "o_model.display_starting_from" is true) or on client side after the data binding (if "hasDifferentPrice" is true). ## }}
            <label class="hidden  {{ if o_model.display_starting_from  }} price-difference {{ end }}"
                data-bind="css: { 'price-difference': hasDifferentPrice }">
                {{ sc_translate 'STARTING_FROM' }}
            </label>
            <label class="stock-status" data-bind="text: stockLabel">{{ o_model.stock_status_name }}</label>
        </div>
        {{ ## The <div> element contains the product price and product details link.
              The CSS class "on-sale" is added on server side (if "o_model.is_on_sale" is true) or on client side after the data binding (if "promotion" has a truthy value). ## }}
        <div class="product-detail {{ if o_model.is_on_sale  }} on-sale {{ end }}"
            data-bind="css: { 'on-sale': promotion }">
            {{ # The product price text is rendered on server side and will be overwritten on the client side if data binding occurs }}
            <span data-bind="text: price" class="product-price">{{ o_model.adjusted_price_with_currency }}</span>
            <a class="product-link" title="{{ displayName }}" href="{{ i_item.url }}">
                {{ sc_translate 'DETAILS' }}
            </a>
        </div>
    </div>
</div>

The Commerce Search Results rendering is a clone of the SXA Search Results rendering specific to Commerce. It has its own default rendering variant root and default rendering variant (/sitecore/Content///Presentation/Rendering Variants/Commerce Search Results), which uses a Scriban template for generating the markup, JavaScript for retrieving the stock and price information (as an AJAX request), and the SXA Dictionary for label translation.

Note

You can change the labels used with the Commerce Search Results rendering.

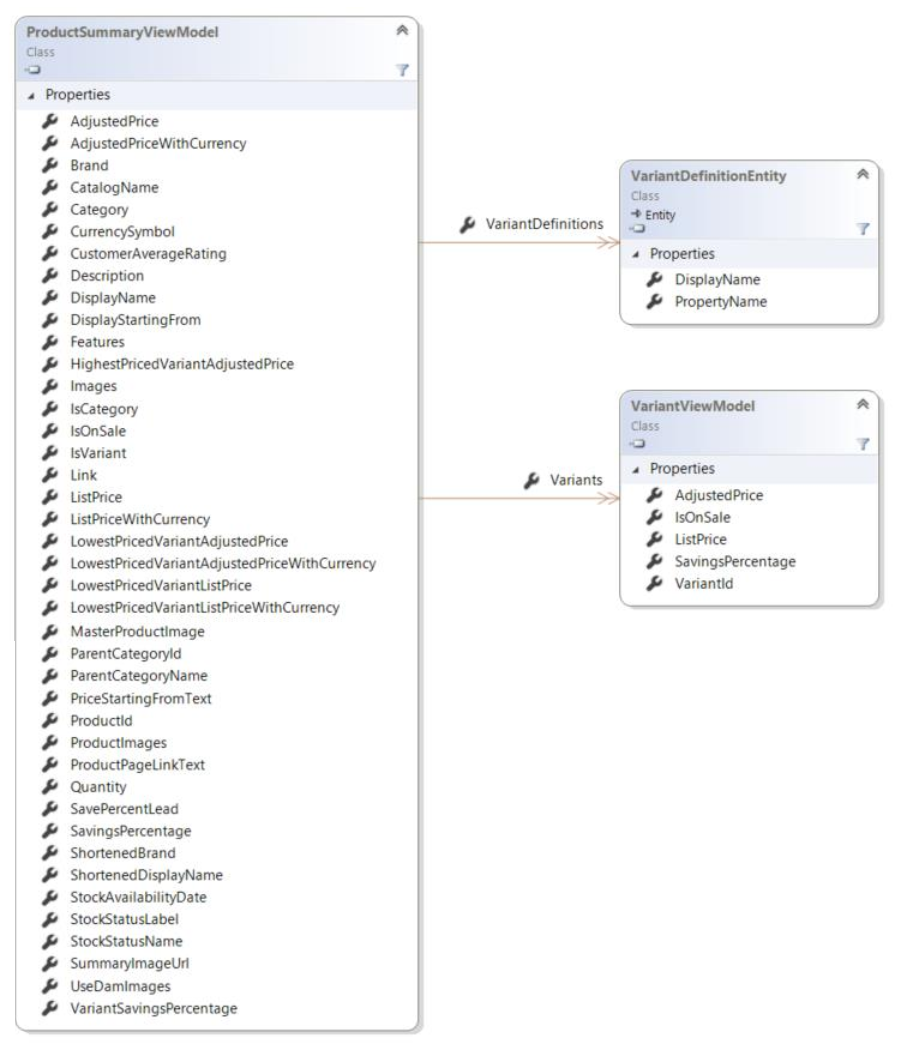

Product Summary View model

When search results are processed, the price and stock information is retrieved from the Commerce Engine and converted to the ProductSummaryViewModel model to be rendered inside Scriban template (accessed through the o_model variable).
