Walkthrough: Creating a login page

Abstract

Learn how to create a form page that enables logging in and out.

This topic describes how to create a form page that enables visitors to log in and out on an extranet. This walkthrough is part two of the Prefilling forms series. To execute the steps of this walkthrough, you must first complete the Walkthrough: Creating a register page.

This walkthrough describes how to

Create a login and logout submit action class
Create a login action editor control
Create the login submit action item
Create the logout submit action item
Create a login form
Create a logout form
Add the form to a webpage

Create a login and logout submit action class

To create the login and logout submit action class:

In your Visual Studio Project, go to SubmitActions folder. Create a folder named LoginUser.

In the LoginUser folder, create a LoginUserData class:

public class LoginUserData
 {
 public Guid UserNameFieldId { get; set; }
 public Guid PasswordFieldId { get; set; }
 }

Create a LoginUserclass:

public class LoginUser : SubmitActionBase<LoginUserData>
 {
 public LoginUser(ISubmitActionData submitActionData) : base(submitActionData)
 {
 }

 protected override bool Execute(LoginUserData data, FormSubmitContext formSubmitContext)
 {
 Assert.ArgumentNotNull(data, nameof(data));
 Assert.ArgumentNotNull(formSubmitContext, nameof(formSubmitContext));

 var fields = GetFormFields(data, formSubmitContext);

 Assert.IsNotNull(fields, nameof(fields));

 if (UsernameOrPasswordFieldIsNull(fields))
 {
 return AbortForm(formSubmitContext);
 }

 var values = fields.GetFieldValues();

 if (UsernameOrPasswordValueIsNull(values))
 {
 return AbortForm(formSubmitContext);
 }

 var user = Login(values.Username, values.Password);

 if (user == null)
 {

 return AbortForm(formSubmitContext);
 }

 return true;
 }

 protected virtual User Login(string userName, string password)
 {
 var accountName = string.Empty;
 var domain = Context.Domain;
 if (domain != null)
 {
 accountName = domain.GetFullName(userName);
 }

 var result = AuthenticationManager.Login(accountName, password);
 if (!result)
 {
 return null;
 }

 var user = AuthenticationManager.GetActiveUser();
 return user;
 }

 private LoginUserFormFields GetFormFields(LoginUserData data, FormSubmitContext formSubmitContext)
 {
 Assert.ArgumentNotNull(data, nameof(data));
 Assert.ArgumentNotNull(formSubmitContext, nameof(formSubmitContext));

 return new LoginUserFormFields
 {
 Username = FieldHelper.GetFieldById(data.UserNameFieldId, formSubmitContext.Fields),
 Password = FieldHelper.GetFieldById(data.PasswordFieldId, formSubmitContext.Fields)
 };
 }

 private bool UsernameOrPasswordFieldIsNull(LoginUserFormFields field)
 {
 Assert.ArgumentNotNull(field, nameof(field));
 return field.Username == null || field.Password == null;
 }

 private bool UsernameOrPasswordValueIsNull(LoginUserFieldValues values)
 {
 Assert.ArgumentNotNull(values, nameof(values));
 return string.IsNullOrEmpty(values.Username) || string.IsNullOrEmpty(values.Password);
 }

 private bool AbortForm(FormSubmitContext formSubmitContext)
 {
 formSubmitContext.Abort();
 return false;
 }

 internal class LoginUserFormFields
 {
 public IViewModel Username { get; set; }
 public IViewModel Password { get; set; }

 public LoginUserFieldValues GetFieldValues()
 {
 return new LoginUserFieldValues
 {
 Username = FieldHelper.GetValue(Username),
 Password = FieldHelper.GetValue(Password)
 };
 }
 }

 internal class LoginUserFieldValues
 {
 public string Username { get; set; }
 public string Password { get; set; }
 }
 }

Go to the SubmitActions folder and add a folder named LogoutUser. In that folder, create the LogoutUser class:

public class LogoutUser : SubmitActionBase<string>
 {
 public LogoutUser(ISubmitActionData submitActionData) : base(submitActionData)
 {
 }

 protected override bool Execute(string data, FormSubmitContext formSubmitContext)
 {
 Assert.ArgumentNotNull(formSubmitContext, nameof(formSubmitContext));

 Logout();
 return true;
 }

 protected override bool TryParse(string value, out string target)
 {
 target = string.Empty;
 return true;
 }

 protected virtual void Logout()
 {
 AuthenticationManager.GetActiveUser();
 AuthenticationManager.Logout();
 }
 }

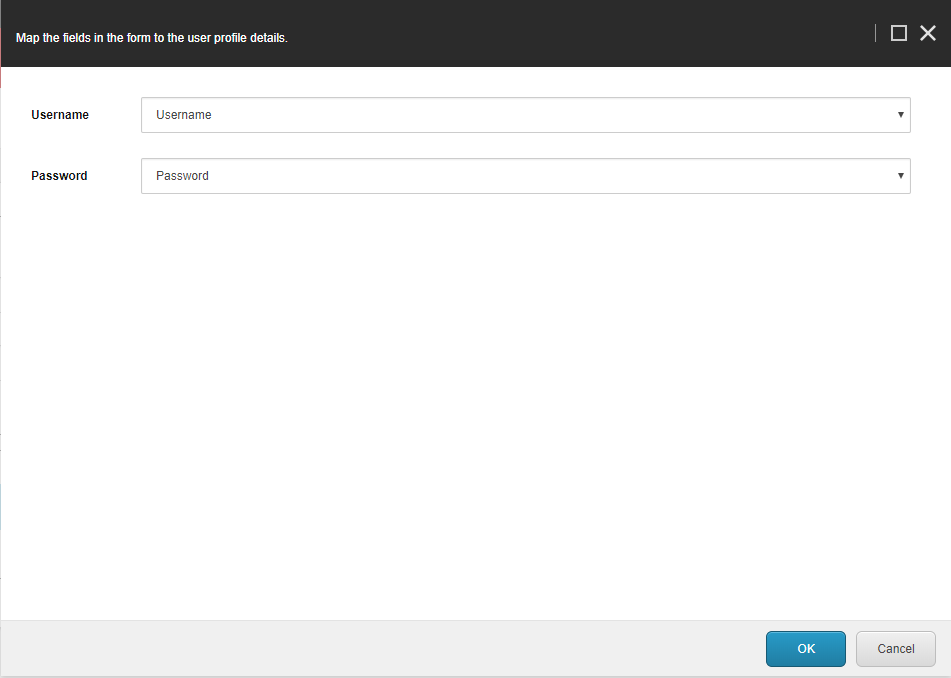

Create a login action editor control

The next step is to create a LoginUser action editor to map the form fields to theLoginUserData class.

Note

You must have Visual Studio Sitecore Rocks plugin to complete this task.

To create the LoginUser action editor control:

Create the JavaScript file for the action editor. In Visual Studio, navigate to the scripts folder and create a JavaScript file named LoginUser.js.

Copy the following script to the file:

	(function (speak) {
	    var parentApp = window.parent.Sitecore.Speak.app.findApplication('EditActionSubAppRenderer'),
	        designBoardApp = window.parent.Sitecore.Speak.app.findComponent('FormDesignBoard');

	    var getFields = function () {
	        var fields = designBoardApp.getFieldsData();

	        return _.reduce(fields,
	            function (memo, item) {
	                if (item && item.model && item.model.hasOwnProperty("value")) {
	                    memo.push({
	                        itemId: item.itemId,
	                        name: item.model.name
	                    });
	                }
	                return memo;
	            },
	            [
	                {
	                    itemId: '',
	                    name: ''
	                }
	            ],
	            this);
	    };

	    speak.pageCode(["underscore"],
	        function (_) {
	            return {
	                initialized: function () {
	                    this.on({
	                        "loaded": this.loadDone
	                    },
	                        this);

	                    this.Fields = getFields();

	                    this.MapLoginUserForm.children.forEach(function (control) {
	                        if (control.deps && control.deps.indexOf("bclSelection") !== -1) {
	                            control.IsSelectionRequired = false;
	                        }
	                    });

	                    if (parentApp) {
	                        parentApp.loadDone(this, this.HeaderTitle.Text, this.HeaderSubtitle.Text);
	                        parentApp.setSelectability(this, true);
	                    }
	                },

	                setDynamicData: function (propKey) {
	                    var componentName = this.MapLoginUserForm.bindingConfigObject[propKey].split(".")[0];
	                    var component = this.MapLoginUserForm[componentName];

	                    var items = this.Fields.slice(0);

	                    if (this.Parameters[propKey] &&
	                        !_.findWhere(items, { itemId: this.Parameters[propKey] })) {
	                        var currentField = {
	                            itemId: this.Parameters[propKey],
	                            name: this.Parameters[propKey] +
	                                " - " +
	                                (this.ValueNotInListText.Text || "value not in the selection list")
	                        };

	                        items.splice(1, 0, currentField);

	                        component.DynamicData = items;
	                        $(component.el).find('option').eq(1).css("font-style", "italic");
	                    } else {
	                        component.DynamicData = items;
	                    }
	                },

	                loadDone: function (parameters) {
	                    this.Parameters = parameters || {};
	                    _.keys(this.MapLoginUserForm.bindingConfigObject).forEach(this.setDynamicData.bind(this));
	                    this.MapLoginUserForm.BindingTarget = this.Parameters;
	                },

	                getData: function () {
	                    var formData = this.MapLoginUserForm.getFormData(),
	                        keys = _.keys(formData);

	                    keys.forEach(function (propKey) {
	                        if (formData[propKey] == null || formData[propKey].length === 0) {
	                            if (this.Parameters.hasOwnProperty(propKey)) {
	                                delete this.Parameters[propKey];
	                            }
	                        } else {
	                            this.Parameters[propKey] = formData[propKey];
	                        }
	                    }.bind(this));

	                    return this.Parameters;
	                }
	            };
	        });
	})(Sitecore.Speak);

Deploy LoginUser.js to your website folder at: YourInstance/Website/sitecore/shell/client/Applications/FormsBuilder/Layouts/Action.
In Sitecore Rocks, expand the core database and go to: /sitecore/shell/client/Applications/FormsBuilder/Layouts/Actions.
Click Add, and click New item.
In the Add New Item dialog box, search for and click the Speak-BasePage template, enter the name: LoginUser.
Update the layout of this item to /sitecore/client/Speak/Layouts/Layouts/Speak-FlexLayout and add the following renderings:
- PageCode
- HeaderTitle
- HeaderSubtitle
- ValueNotinListText
- MainBorder
- MapLoginUserForm
Open the properties window of the PageCode rendering and update the PageCodeScriptFileName to: /sitecore/shell/client/Applications/FormsBuilder/Layouts/Actions/LoginUser.js

Add the parameters based on the templates for the renderings that you have added:

Item	Template
Stylesheet	Page-Stylesheet-File
HeaderTitle	Text Parameters
HeaderSubtitle	Text Parameters
MapLoginUserForm	Folder
UserName	FormDropList Parameters
Password	FormDropList Parameters
ValueNotInListText	Text Parameters

Update their fields with the following values:

Parameter	Field:Values
`Stylesheet`	Stylesheet: `/sitecore/shell/client/Applications/FormsBuilder/Layouts/Actions/Actions.css`
`HeaderTitle`	IsVisible: deselect Text: Map the fields in the form to the user profile details.
`HeaderSubtitle`	IsVisible: deselected Text: Map the fields in the form to the user profile details.
`UserName`	ValueFieldName: itemId DisplayFieldName: name Form Label: Username BindingConfiguration: userNameFieldId / SelectedValue
`Password`	ValueFieldName: itemId DisplayFieldName: name Form Label: Password BindingConfiguration: passwordFieldId / SelectedValue
`ValueNotInListText`	IsVisible: deselected Text: Value not in the selection list

Create the login submit action item

To create the login submit action item:

In the Content Editor, go to /system/Settings/Forms/Submit Actions, insert a Submit Action item, and name it Login User.
Update the fields with the following values:
Field
Value
Model Type
ValueProviderSample.SubmitActions.LoginUser
Error Message
Login failed!
Editor
LoginUser

Field	Value
Model Type	ValueProviderSample.SubmitActions.LoginUser
Error Message	Login failed!
Editor	LoginUser

Create the logout submit action item

To create the logout submit action item:

Insert a submit action item to the Submit Actions folder and name it Logout User.
Update the fields with the following values:
Field
Value
Model Type
ValueProviderSample.SubmitActions.LogoutUser
Error Message
Logout failed!
Note
Do not forget to save the items.

Field	Value
Model Type	ValueProviderSample.SubmitActions.LogoutUser
Error Message	Logout failed!

Create a login form

To create the login form:

Open the Sitecore Forms application from the Sitecore Launchpad.
Create a form and add the following sections:
Section name
Css class
LoginSection
form-group col-md-6
SubmitSection
form-group col-md-12
Add the following fields:
Type
Label
Field name
Section
Single-line text
Username
Username
LoginSection
Password
Password
Password
LoginSection
Submit button
Login
Login
SubmitSection
Add the Login User submit action to the Login button. Map the form fields accordingly. Then click OK.
Save the form and name it Login Form.

Section name	Css class
LoginSection	`form-group col-md-`6
SubmitSection	`form-group col-md-12`

Type	Label	Field name	Section
Single-line text	Username	Username	LoginSection
Password	Password	Password	LoginSection
Submit button	Login	Login	SubmitSection

Create a logout form

To create a logout form:

Create a blank form.
From the Form Elements pane, drag the submit button to the page.
Edit the submit button properties with the following values:
- Label: Logout
- Field name: Submit Button
- CSS class: btn btn-link
In the Submit actions section, add the Logout User submit action.
Save the form with name Logout Form.

Add the form to a webpage

With the Sitecore Forms application, you can easily create a new form or use a template. You can insert your form in a webpage in both the Content Editor and the Experience Editor. First, you must replace the default sample layout with the MVC layout and then you can insert your form in a webpage.

To add a form to a webpage:

Navigate to sitecore/Content/Home, and insert a Sample Item. Name it Login.
Change the Login item's default layout to MVC Layout (the MVC layout you created in the previous walkthrough.
Remove all the sample controls and add the MVC form renderings. Add it to the main placeholder.
Edit the MVC form rendering you just added, and update its Data Source to Login Form.
Save and publish the items.

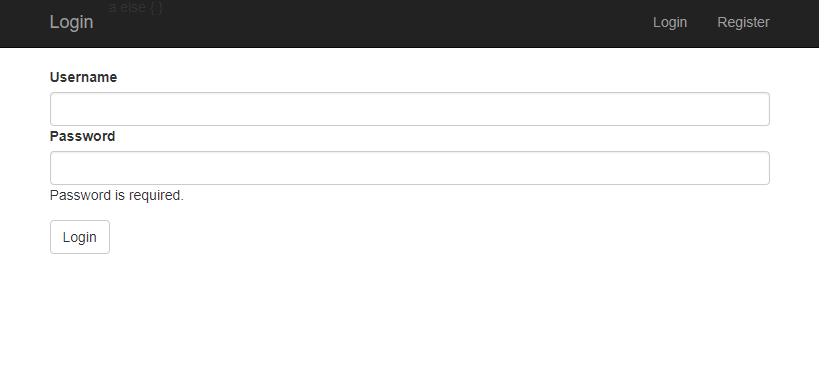

You can now view your login page. Go the next walkthrough to learn how to set up a value provider.
