Walkthrough: Building a simple rendering

The SXA toolbox contains default renderings for simple text, images, videos, social media plugins, and so on. You can also create a new rendering. This walkthrough describes how to:

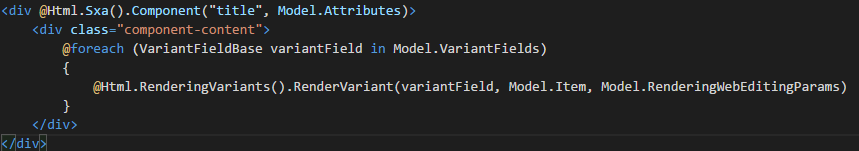

SXA renderings are Sitecore controller renderings and SXA uses the same basic structure for all renderings. The wrappers are the same for every rendering and always contain:

  • The component element

  • The Html.Sxa().Component() helper

  • The content: <div class="component-content">


To be able to use the Creative Exchange functionality in SXA, you must use the Html.Sxa().Component(). This helper injects data attributes for a Creative Exchange export.

To create a rendering:

  • In the rendering definition item, specify what action Sitecore takes to render the component. For example, for the title rendering:


Every SXA rendering needs a controller. SXA enables you to inherit from a base SXA controller. It provides useful properties and logic to automatically resolve the view name and provide the model (Rendering, PageContext). It is best practice to use these base classes when you build a new rendering or extend an existing rendering.

To create the controller and the action method:

  1. In an ASP.NET MVC Web application project in Visual Studio, create a new controller. In SXA, controllers are kept fairly simple and most of the logic is implemented in repositories. To make the controllers use the repositories, you must create controller renderings with a construction injection.

  2. Use the StandardController base class to implement the standard Index() action method that automatically resolves the view name based on the rendering item name. For example:

        public class SimpleComponentController: StandardController
            private readonly ISimpleComponentRepository _repository;
            public SimpleComponentController(ISimpleComponentRepository repository)
                _repository = repository;
            protected override object GetModel()
                return _repository.GetModel();

Inject a repository into a controller

SXA uses repositories to provide the model for the MVC views. Therefore, when you finish the controller, you must inject the repository into the controller. You can inject your repository in two ways:

  • Construction injection - we recommend to use this injection. For example:

    public class SimpleComponentController : StandardController
        private readonly ISimpleComponentRepository _repository;
        public SimpleComponentController(ISimpleComponentRepository repository)
            _repository = repository;
  • ServiceLocation injection - this injection is used in processors or commands and sometimes in controllers. For example:

    public class SimpleComponentController
        private readonly ISimpleComponentRepository _repository;
        public SimpleComponentController()
            _repository = ServiceLocator.ServiceProvider.GetService<ISimpleComponentRepository>()

SXA provides base repositories. For example, the VariantsRepository and the ListRepository provide useful properties and make implementing your own repository a lot easier. Another example is the ModelRepository base class that provides useful properties such as:

  • PageContext - represents information required to service an individual request for a specific device, containing information about the HTTP response under construction. The PageContext contains properties that expose the requested item, device, and the PageDefinition object created for the request.

  • IsEdit - checks if Edit mode is on.

  • IsControlEditable - specifies whether the rendering should be editable.

  • Attributes – dictionary of attributes that will be applied to the rendering.

All repositories must have their own interface, even when a repository is empty and is just using base interface methods. This is because it is used later on when registering the Dependency Injection container:

public interface ISimpleComponentRepository: IModelRepository

And here is an example of simple repository:

    public class SimpleComponentRepository : ModelRepository, ISimpleComponentRepository
        public override IRenderingModelBase GetModel()
            SimpleComponentModel model = new SimpleComponentModel();

            model.Title = GetTitle();

            return model;

        private string GetTitle()
            return PageContext.Current[Templates._Title.Fields.Title];

When you have finished building your new rendering, for example, for a simple rendering, the project structure could look like this:


And the view could look like this:

@model Sitecore.SXA.Startup.Feature.SimpleComponent.Models.SimpleComponentModel

<div @Html.Sxa().Component("simple-component", Model.Attributes)>
    <div class="component-content">
        <h1>You are on @Model.Title page</h1>


Most SXA renderings are designed for reusability and pull data from data source items. This means that the content they display is not bound to the page on which they appear but is stored in data source items. You can add data source logic to the rendering by using:

if (DataSourceItem == null) { ... }

Create a controller rendering in Sitecore

To create the rendering for users to access from the Toolbox, you have to create the item in Sitecore and use the controller name and the action name to link the item with the code.

To create a controller rendering in Sitecore:

  1. In the Content Editor, go to sitecore/Layout/Renderings/Feature/Experience Accelerator and right-click the section that you want to add the rendering to.


    The Section names in Layouts/Renderings/Feature/Experience Accelerator are the actual names used in the Toolbox.

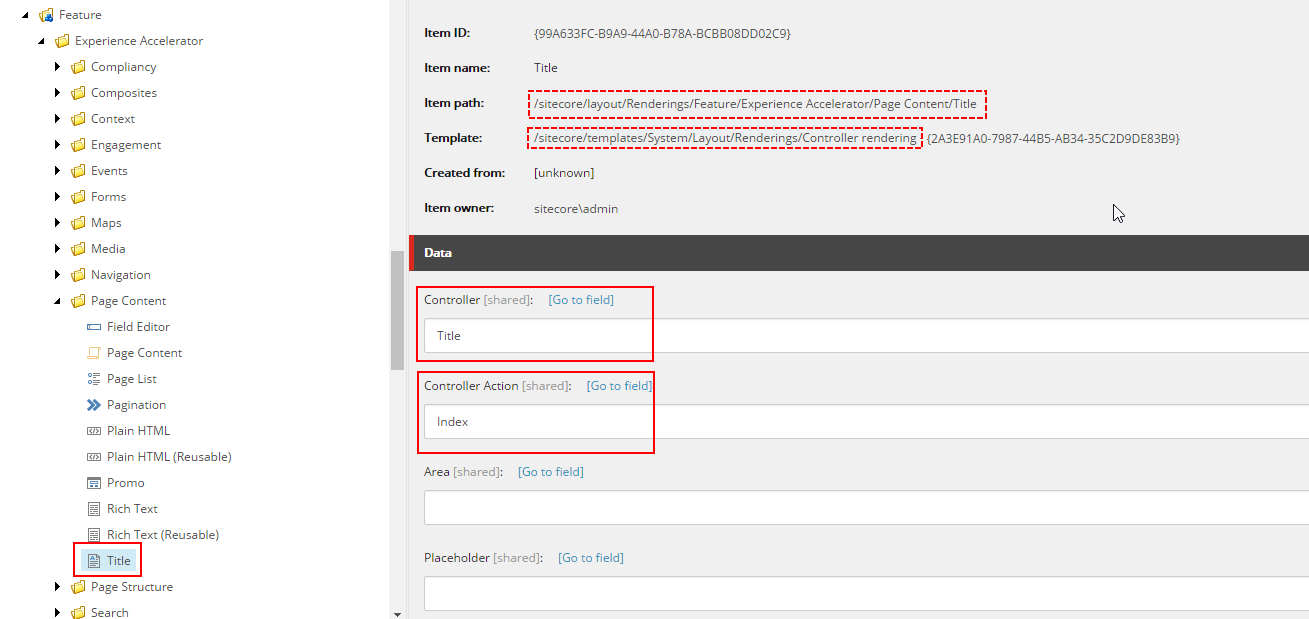

  2. Click Insert, Controller Rendering. For example, to add the controller rendering item for the Title rendering in:

    • The Controller field – enter Title

    • The Controller Action field – enter Index. This action is inherited from the StandardController.

  3. In the Experience Accelerator section, you can add additional settings for your rendering. For example, a specific CSS class, whether it can use a page as a datasource or whether it can use dynamic placeholders:



    Additional compatible templates

    Enables to select multiple templates for data source. For example, for the Promo rendering you use the Promo templates but also other data sources such as Text and Image.

    Can select Page as a data source

    Renderings that can use content from the current page have an option to select the page as a data source. When the Can select Page as a data source box is selected, it lets you use a page as a data source. This option is available for renderings that take content from the current page such as Page Content, Page List, JSON content, and JSON list.

    Rendering css class

    Enter the CSS class for the rendering. For example:


    Rendering view path

    By default, the view name in SXA is resolved as the rendering definition item name. To provide a custom path, enter the location of the view here.


    Specify any other properties here. For example: IsRowSplitterRendering – for renderings that split rows. IsColumnSplitterRendering – for renderings that split columns. IsRenderingsWithDynamicPlaceholders – for renderings that use dynamic placeholders. IsPaginationEnabledRendering – for renderings that support pagination. IsNeverLocalRendering - for disabling the editing of inherited renderings. For example: navigation. IsCompositeRendering – for composite renderings. IsAutoDatasourceRendering - for renderings for which a data source is automatically created after adding that rendering to a page.

  4. Save and publish the item.

Register dependencies

Dependency injection (DI) is a technique for achieving loose coupling between objects and their collaborators, or dependencies you can use the Sitecore dependence injection. Without dependency injection, a class must directly instantiate collaborator or use static references. With dependency injection, the objects a class need are provided for it. Most often, classes will declare their dependencies through their constructor. Sitecore only supports this approach, known as constructor injection. The Sitecore implementation of DI is based on the Microsoft.Extensions.DependencyInjection abstractions from ASP.NET Core.

For SXA renderings, you can use the Sitecore base class IServicesConfigurator to configure services from code:

using Microsoft.Extensions.DependencyInjection;
using PageTitle.Controllers;
using PageTitle.Repositories;
using Sitecore.DependencyInjection;

namespace PageTitle
    public class RegisterDependencies : IServicesConfigurator
        public void Configure(IServiceCollection serviceCollection)
            serviceCollection.AddTransient<ISimpleComponentRepository, SimpleComponentRepository>();

Next, you need to add the config with a configurator node that points to that RegisterDependencies class.

For example:

<configuration xmlns:patch="http://www.sitecore.net/xmlconfig/">
      <configurator type="SimpleComponent.RegisterDependencies, SimpleComponent" />

Add a rendering to the toolbox

In the Presentation folder of your site, you can set which renderings are visible in the Toolbox in the Experience Editor.

To add a rendering to the SXA toolbox:

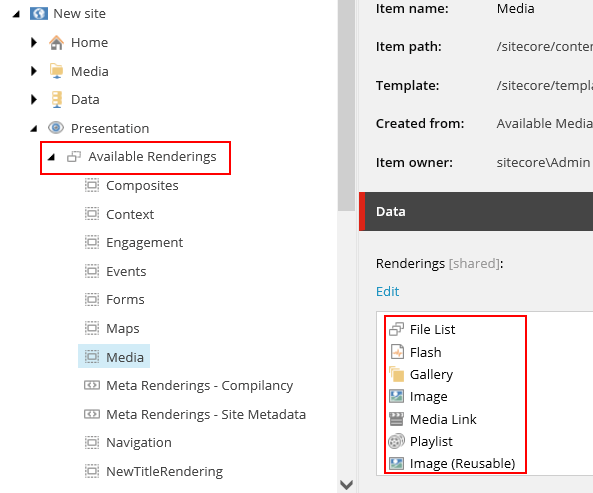

  1. In your site, navigate to Presentation/Available Renderings

  2. In the Data section, in the Renderings field, click Edit.

  3. In the All section on the left, click a rendering and then click the right arrow to move it to the list of selected renderings. When you have added all the renderings that you want in the SXA toolbox, click OK.
