Edit a composite

Current version: 10.1

A composite rendering consists of several other renderings. Each instance can have its own layout that you can be designed separately in the Experience Editor.

You can use the SXA on-page editing of composites feature to modify renderings stored in the composite item's presentation details. Once you place the composite on the page, you can add, modify, and/or remove the composite renderings on the page directly.

Most renderings used within composites use explicit data source items to store the data.


If you use personalization for composites, the data source for your composite must point to the same data source as the default rule in the personalization settings. If the composite and the personalization do not use the same default data source item, the content of the composite cannot render properly.

Every composite rendering has its own item in the content tree. For example, the tabs composite on the page:

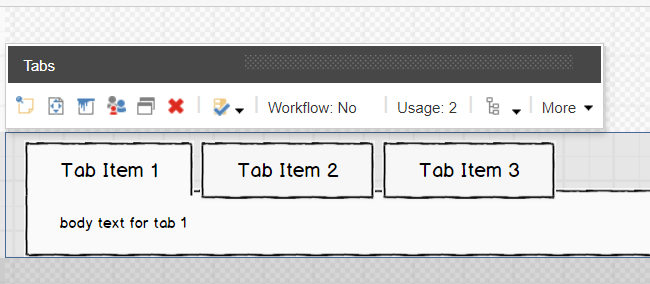

Tabs composite on the page.

The tabs item in the content tree:

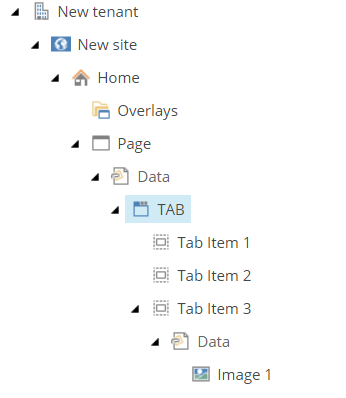

Tabs item in the content tree.

If you edit an existing composite, be aware of whether you want to edit the item globally or on the local page only.

Add a rendering to a composite

To add a rendering to a placeholder of a composite:

  1. Open the Toolbox, click the rendering that you want to add and drag it to the placeholder in the composite on the page. For example, if you want to use the Page content rendering to add content from a data source item on one of the tabs of the Tabs rendering:

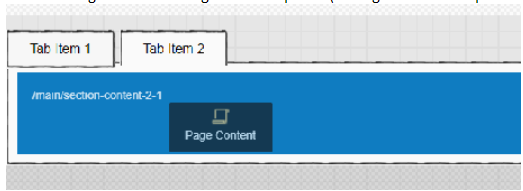

    Page content component dragged to the tab item.
  2. Save the page.


    When you add a rendering to the composite's placeholder, the rendering is stored in the composite data source item and not on the page. This is very convenient if you use the composite in different locations. Changing the data source in one location applies that change to all places where this composite is used.

    If you do not want a change to apply globally, you must use a local data source and then the composite item is stored under the Page Data node, as a subitem of the page item.

Delete or change a rendering within a composite

You can delete or change a rendering within a composite on the page directly. If you change a local data source under the Page Data node, it only affects the page you are working on. If you change a globally used composite's data source, it changes for all the pages that use that composite.

To modify a rendering within a composite:

  • Add a non-reusable rendering, for example, a Plain HTML, Rich Text, or Image rendering, to a composite. An auto-created data source is created under the composite item.

    For example, when you add the Image rendering to the second Tab item of a composite, the data source is not saved on the page data (/sitecore/content/Tenant/Site/Home/Page/Data)but instead within the composite (/sitecore/content/Tenant/Site/Home/Page/Data/Tabs/Tab Item 2/Data):

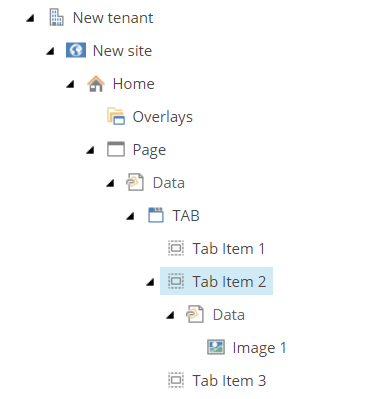

    Tabs example in CE where datasource is saved within the composite.
