The loyalty programs and cards domain model

Version: 10.2

This section describes the domain model that represents the loyalty program and card objects where the following three assertions hold true:

The domain model primarily serves as DTO objects for transferring information between the external commerce system and Sitecore.
The domain model contains the minimum required information as contracts and will typically be extended, when integrated with a specific commerce system.
The domain model is used when a Sitecore developer needs to synchronize product data with the external commerce system or product data is pushed into Sitecore from the external commerce system

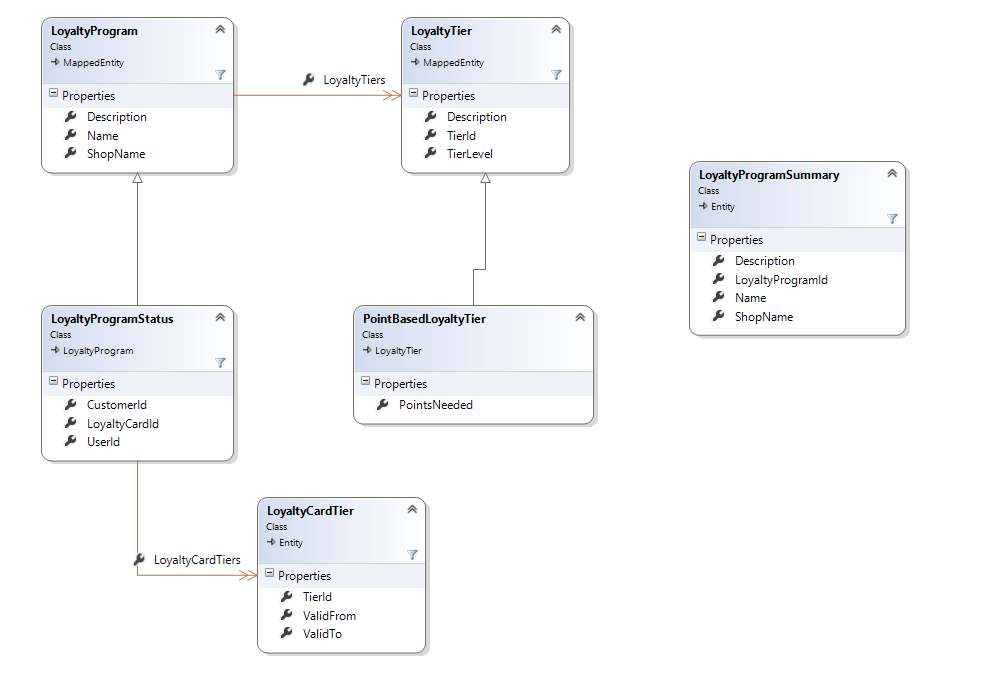

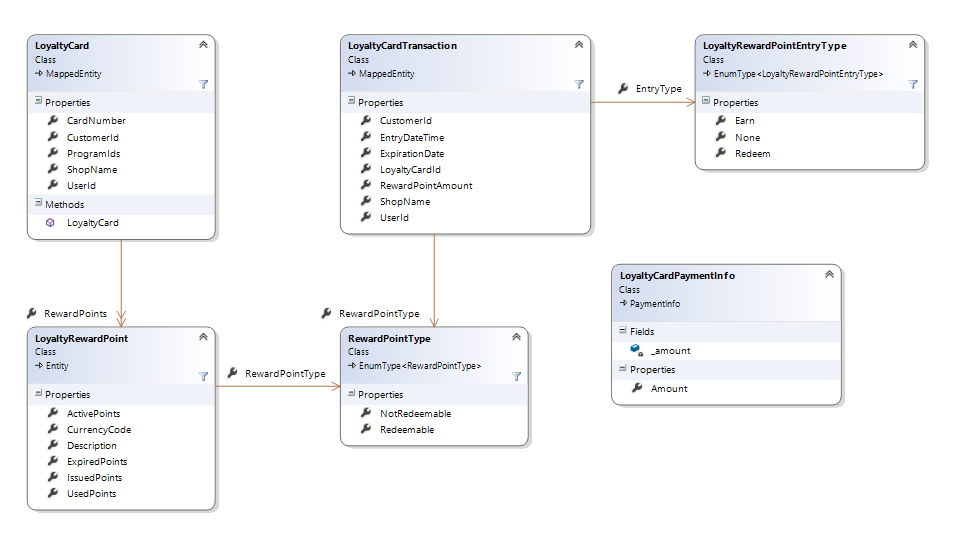

The following class diagram shows the domain model:

Note

The domain model consists of abstract classes that make up the contracts with the external system. The contracts are defined as abstract classes instead of interfaces to allow the model to be easily extended later if needed. This follows the best practice guidelines defined in the Framework Design Guidelines.

A default implementation of the contracts is delivered as part of Connect. If an actual Connect provider with an external commerce system contains more functionality than that provided by default, the implementation can be replaced. All instantiation of actual classes will be handled through dependency injection.

Class: LoyaltyCard

The LoyaltyCard class is used to represent a loyalty card owned by a customer.

Name	Type	Description
ExternalId	String	Unique identifier for the loyalty card in the external commerce system.
CustomerId	String	The customer ID associated to the card.
UserId	String	The user ID associated to the card.
ShopName	String	The shop name the card is associated to.
CardNumber	String	The number of the card.
ProgramIds	List<string>	The IDs of any programs the card is associated with.
RewardPoints	List<LoyaltyRewardPoint>	Any reward points on the card.

Class: LoyaltyCardPaymentInfo

The LoyaltyCardPaymentInfo class extends the payment info class and makes it possible for a customer to pay for an order using their loyalty card.

Name	Type	Description
Amount	Decimal	The amount of points to charge to the card.

Class: LoyaltyCardTier

The LoyaltyCardTier class is used to represent a tier that a loyalty card might be involved in, for example, bronze, silver, or gold.

Name	Type	Description
Tier	String	The tier the card is associated with.
ValidFrom	DateTime	When the tier becomes valid.
ValidTo	DateTime	When the card is no longer eligible to be part of the tier.

Class: LoyaltyCardTransaction

The LoyaltyCardTransaction object is used to represent a record of the addition or removal of points onto a loyalty card.

Name	Type	Description
LoyaltyCardId	String	Unique identifier for the loyalty card in the external commerce system.
CustomerId	String	The customer ID associated to the card.
UserId	String	The user ID associated to the card.
ShopName	String	The shop name the card is associated to.
RewardPointType	RewardPointType	The type of point transaction that occurred.
RewardPointAmount	Decimal	The amount of points that were awarded.
EntryType	LoyaltyRewardPointEntryType	The type of entry for this transaction.
ExpirationDate	Datetime	The date the reward expires.
EntryDateTime	DateTime	The date the transaction occurred.

Class: LoyaltyProgram

The LoyaltyProgram object is used to represent a program that a loyalty card is involved in.

Name	Type	Description
ExternalId	String	Unique identifier for the loyalty program in the external commerce system.
Name	String	The name of the program.
Description	String	The name of the description.
ShopName	String	The name of the shop that the program is associated with.
LoyaltyTiers	List<LoyaltyTier>	The tiers that exist within the program.

Class: LoyaltyRewardPoint

The LoyaltyRewardPoint object is used to represent point activity on a card.

Name	Type	Description
Description	String	A description of the reward points.
RewardPointType	RewardPointType	The type of points rewarded.
CurrencyCode	String	The currency of the points rewarded.
IssuedPoints	Decimal	The amount of point issued.
UsedPoints	Decimal	The amount of points used.
ExpiredPoints	Decimal	The amount of expired points.
ActivePoints	Decimal	The amount of active points.

Class: LoyaltyRewardPointEntryType

The LoyaltyRewardPointEntryType object is an enum of different reward point entry types.

Name	Type	Description
None	LoyaltyRewardPointEntryType	Unassigned reward point entry type.
Earn	LoyaltyRewardPointEntryType	An earned reward point.
Redeem	LoyaltyRewardPointEntryType	A redeemed reward point.

Class: PointBasedLoyaltyTier

The PointBasedLoyaltyTier object is an extension of the LoyaltyTier class and is used to represent points based on the loyalty tier within a program.

Name	Type	Description
PointsNeeded	Decimal	The number of points required to meet the tier.

Class: LoyaltyProgramSummary

The LoyaltyProgramSummary object is used to represent a summary of the loyalty program.

Name	Type	Description
Name	String	The name of the program.
Description	String	A description of the program.
ShopName	String	The name of the shop that the program is associated with.
LoyaltyProgramId	String	The ID of the loyalty program for this summary.

Class: RewardPointType

The RewardPointType object is an enum of different reward point entry types.

Name	Type	Description
NotRedeemable	RewardPointType	The points are not redeemable.
Redeemable	RewardPointType	The points are redeemable.
