FXM JavaScript API

Version: 9.1

Sitecore Federate Experience Manager (FXM) offers a JavaScript API that enables you to manage some of the Sitecore analytics functionality on webpages on external websites. To use this API, you must set up the FXM JavaScript beacon on the external website.

trackEvent

Use the trackEvent function to trigger a Sitecore page event from a webpage on the external website:

  • To trigger the Page visited page event:

    SCBeacon.trackEvent(“Page visited”)

  • To trigger the page event with additional parameters, such as data and dataKey:

    SCBeacon.trackEvent(“Page visited”, { data: “custom data”, dataKey: “custom data key” })

  • To trigger the page event with custom parameters, make sure the parameter starts with the prefix, x. The custom parameter is added to the Text property. For example:

    SCBeacon.trackEvent(“Page visited”, { data: “MyData”, dataKey: “MyDataKey”, xKey1: “Value1”, xKey2: “Value2” })

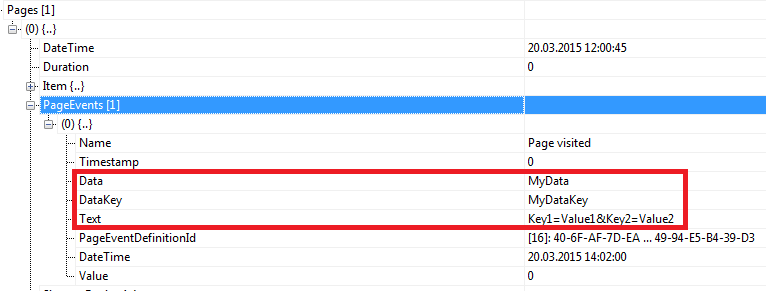

    Example of the page event with Data, DataKey, and Text

trackGoal

Use the trackGoal function to trigger a Sitecore goal from a webpage on an external website:

  • To trigger the Register goal:

    SCBeacon.trackGoal(“Register”)

  • To trigger a goal with additional parameters, such as data and dataKey:

    SCBeacon.trackGoal(“Register”, { data: “custom data”, dataKey: “custom data key” })

  • To trigger the SCBeacon.trackGoal goal with custom data parameters, make sure the parameter starts with the prefix, x. The custom parameter is added to the Text property. For example:

    SCBeacon.trackGoal(“Register”, { data: “MyData”, dataKey: “MyDataKey”, xKey1: “Value1”, xKey2: “Value2” })

trackOutcome

To use the trackOutcome function, you must use the item ID or name of a predefined outcome definition item, for example, Product Purchase:

  • SCBeacon.trackOutcome(“{9016E456-95CB-42E9-AD58-997D6D77AE83}”)

  • SCBeacon.trackOutcome(“Product Purchase”)

Use the trackOutcome function to trigger a Sitecore outcome from a webpage on an external website:

  • To associate the outcome with a monetary value, add the parameter monetaryValue to the trackOutcome function:

    SCBeacon.trackOutcome(“{9016E456-95CB-42E9-AD58-997D6D77AE83}”, { monetaryValue: “25,5” })

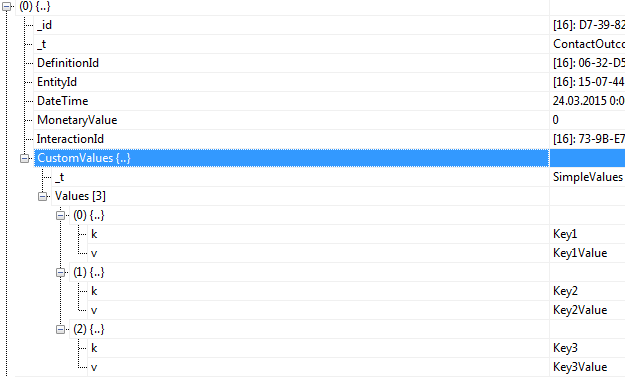

  • To trigger an outcome with custom data parameters, add the parameters to the trackOutcome function. Make sure the parameters start with the prefix, x. For example:

    SCBeacon.trackOutcome(“{9016E456-95CB-42E9-AD58-997D6D77AE83}”, { xKey1: 'Key1Value', xKey2:'Key2Value', xKey3:'Key3Value' });
