Query examples
This topic describes some examples of how to query the Experience Edge GraphQL schema to meet common query needs.
Most of the example queries in this topic are derived from the Styleguide sample site. Item IDs and paths will vary by import/solution.
If your site supports a fallback language, enable publishing language fallback on the Experience Edge Connector before you start.
Get an item by ID or path
You can query items anywhere in your content tree by path or ID to read their fields and other properties. You can use inline fragments to cast items to their projected data template type and fields to their field type.
Query
query {
# path can be an item tree path or GUID-based id
item(path: "/sitecore/content/Experience-Edge/home", language: "en") {
# items can be cast to a Template type with inline fragments
... on AppRoute {
pageTitle {
value
}
}
# fields can be cast to a Field type with inline fragments
field(name: "pageTitle") {
... on TextField {
value
}
}
}
}Result
{
"data": {
"item": {
"pageTitle": {
"value": "Welcome to Sitecore JSS"
},
"field": {
"value": "Welcome to Sitecore JSS"
}
}
}
}Get items filtered by multiple paths

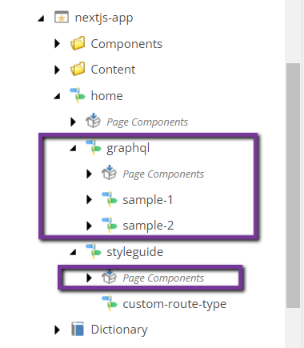

You can filter items based on multiple paths. This query example assumes the following site structure:
Assume that the /home/graphql and home/styleguide/Page Components items have the UUIDs 0C6F4AAF-DD7E-5FAF-B9B0-61070D496055 and AB99BA2B-B606-51E3-BAD9-FD8358DE1333, respectively. You want to get the /home items and descendants that are not /home/graphql and home/styleguide/Page Components or their children. The following query uses the NCONTAINS operator to exclude the path of these items and their children from the result.
Query
query {
pageOne: search(
where: {
AND: [
{
name: "_path"
value: "54C8E9B5-0B2C-5363-8FA6-D32A3A302F51"
operator: CONTAINS
}
{
AND: [
{
name: "_path"
value: "0C6F4AAF-DD7E-5FAF-B9B0-61070D496055"
operator: NCONTAINS
}
{
name: "_path"
value: "AB99BA2B-B606-51E3-BAD9-FD8358DE1333"
operator: NCONTAINS
}
]
}
]
}
# defaults to 10
first: 10
) {
total
pageInfo {
endCursor
hasNext
}
results {
url {
path
}
}
}
}Result
The search query result does not contain items with the paths /home/graphql and home/styleguide/Page Components or any of their descendants but returns the /home item and the remaining child items.
{
"data": {
"pageOne": {
"total": 5,
"pageInfo": {
"endCursor": "NQ==",
"hasNext": false
},
"results": [
{
"url": {
"path": "/styleguide/custom-route-type"
}
},
{
"url": {
"path": "/styleguide"
}
},
{
"url": {
"path": "/Page-Components/home-jss-main-ContentBlock-1"
}
},
{
"url": {
"path": "/Page-Components"
}
},
{
"url": {
"path": "/"
}
}
]
}
}
}Get item layout for a URL
Most often used with Headless SDKs, you can find items by their site name and HTTP URL and then obtain their Layout Service output for rendering by framework-specific Sitecore placeholder implementations.
Query
query {
layout(site: "experienceedge", routePath: "/", language: "en") {
item {
rendered
}
}
}Result
{
"data": {
"layout": {
"item": {
"rendered": {
"sitecore": {
"context": {
"pageEditing": false,
"site": {
"name": "experienceedge"
},
"pageState": "normal",
"language": "en",
"itemPath": "/"
},
"route": {
"name": "home",
"displayName": "home",
"fields": {
"pageTitle": {
"value": "Welcome to Sitecore JSS"
}
},
"databaseName": "web",
"deviceId": "fe5d7fdf-89c0-4d99-9aa3-b5fbd009c9f3",
"itemId": "2bde2083-5542-5569-ac5e-f1f42e29f75a",
"itemLanguage": "en",
"itemVersion": 1,
"layoutId": "714096fc-3998-52cf-b87a-951fc7ce39d3",
"templateId": "e34d8c4f-7e6c-560c-be24-e4d1fcdb16d8",
"templateName": "App Route",
"placeholders": {
"jss-main": [
{
"uid": "2c4a53cc-9da8-5f51-9d79-6ee2fc671b2d",
"componentName": "ContentBlock",
"dataSource": "{CC3A044C-776B-5423-9BEA-CC5C2EDA8C9B}",
"fields": {
"heading": {
"value": "Welcome to Sitecore JSS"
},
"content": {
"value": "<p>Thanks for using JSS!! Here are some resources to get you started:</p>\n\n<h3><a href=\"https://jss.sitecore.net\" rel=\"noopener noreferrer\">Documentation</a></h3>\n<p>The official JSS documentation can help you with any JSS task from getting started to advanced techniques.</p>\n\n<h3><a href=\"/styleguide\">Styleguide</a></h3>\n<p>The JSS styleguide is a living example of how to use JSS, hosted right in this app.\nIt demonstrates most of the common patterns that JSS implementations may need to use,\nas well as useful architectural patterns.</p>\n\n<h3><a href=\"/graphql\">GraphQL</a></h3>\n<p>JSS features integration with the Sitecore GraphQL API to enable fetching non-route data from Sitecore - or from other internal backends as an API aggregator or proxy.\nThis route is a living example of how to use an integrate with GraphQL data in a JSS app.</p>\n\n<div class=\"alert alert-dark\">\n <h4>This app is a boilerplate</h4>\n <p>The JSS samples are a boilerplate, not a library. That means that any code in this app is meant for you to own and customize to your own requirements.</p>\n <p>Want to change the lint settings? Do it. Want to read manifest data from a MongoDB database? Go for it. This app is yours.</p>\n</div>\n\n<div class=\"alert alert-dark\">\n <h4>How to start with an empty app</h4>\n <p>To remove all of the default sample content (the Styleguide and GraphQL routes) and start out with an empty JSS app:</p>\n <ol>\n <li>Delete <code>/src/components/Styleguide*</code> and <code>/src/components/GraphQL*</code></li>\n <li>Delete <code>/sitecore/definitions/components/Styleguide*</code>, <code>/sitecore/definitions/templates/Styleguide*</code>, and <code>/sitecore/definitions/components/GraphQL*</code></li>\n <li>Delete <code>/data/component-content/Styleguide</code></li>\n <li>Delete <code>/data/content/Styleguide</code></li>\n <li>Delete <code>/data/routes/styleguide</code> and <code>/data/routes/graphql</code></li>\n <li>Delete <code>/data/dictionary/*.yml</code></li>\n </ol>\n</div>\n"
}
}
}
]
}
}
}
}
}
}
}
}Paginate items in an item bucket
When you work with Sitecore item buckets, a common requirement is to paginate all the items that descend from a particular template within that bucket. The following search query is helpful for these use cases.
Query
fragment bucketItemFields on Item {
... on AppRoute {
pageTitle {
value
}
}
url {
path
}
}
query {
search(
where: {
AND: [
{
name: "_templates"
value: "0929f436c3f3500a9f8bd1c57a67a192"
operator: CONTAINS
}
{
name: "_path"
value: "7ab00eca411249818420666fc9110faf"
operator: CONTAINS
}
]
}
first: 5
orderBy: { name: "pageTitle", direction: ASC }
) {
results {
...bucketItemFields
}
pageInfo {
endCursor
hasNext
}
total
}
}Result
{
"data": {
"search": {
"results": [
{
"pageTitle": {
"value": "Route A"
},
"url": {
"path": "/bucket/2021/05/13/13/12/Route-A"
}
},
{
"pageTitle": {
"value": "Route B"
},
"url": {
"path": "/bucket/2021/05/13/13/12/Route-B"
}
},
{
"pageTitle": {
"value": "Route C"
},
"url": {
"path": "/bucket/2021/05/13/13/12/Route-C"
}
},
{
"pageTitle": {
"value": "Route D"
},
"url": {
"path": "/bucket/2021/05/13/13/12/Route-D"
}
},
{
"pageTitle": {
"value": "Route E"
},
"url": {
"path": "/bucket/2021/05/13/13/13/Route-E"
}
}
],
"pageInfo": {
"endCursor": "NQ==",
"hasNext": true
},
"total": 26
}
}
}Get the root item of a site
The Experience Edge schema does not currently allow querying of sites and their root items, but you can still find the root item of a site by using the layout query.
Query
query {
layout(site: "experienceedge", routePath: "/", language: "en") {
item {
homeItemPath: path
contentRoot: parent {
id
path
}
}
}
}Result
{
"data": {
"layout": {
"item": {
"homeItemPath": "/sitecore/content/Experience-Edge/home",
"contentRoot": {
"id": "5AAA894246145088B7AD604B4D177B39",
"path": "/sitecore/content/Experience-Edge"
}
}
}
}
}Get all site paths/pages
You can use the search query in the Experience Edge schema to find all items with layout data under a particular path. This is useful, for example, for obtaining paths for a static site generator or building site maps. The search query results are paginated and, by default, return only 10 results. You must use the endCursor property with the first and after query argument to paginate the results.
Query
query {
pageOne: search(
where: {
AND:[
{
name: "_path",
value: "5AAA894246145088B7AD604B4D177B39",
operator: CONTAINS
},
{ name: "_language", value: "en" },
{ name: "_hasLayout", value: "true" }
]
}
# defaults to 10
first: 2
) {
total
pageInfo {
endCursor
hasNext
}
results {
url {
path
}
}
},
# this would be a subsequent query from your client
pageTwo: search(
where: {
AND:[
{
name: "_path",
value: "5AAA894246145088B7AD604B4D177B39",
operator: CONTAINS
},
{ name: "_language", value: "en" },
{ name: "_hasLayout", value: "true" }
]
}
first: 2,
# obtained from "page one" query results
after: "Mg=="
) {
total
pageInfo {
endCursor
hasNext
}
results {
url {
path
}
}
}
}Result
{
"data": {
"pageOne": {
"total": 6,
"pageInfo": {
"endCursor": "Mg==",
"hasNext": true
},
"results": [
{
"url": {
"path": "/"
}
},
{
"url": {
"path": "/graphql"
}
}
]
},
"pageTwo": {
"total": 6,
"pageInfo": {
"endCursor": "NA==",
"hasNext": true
},
"results": [
{
"url": {
"path": "/graphql/sample-1"
}
},
{
"url": {
"path": "/graphql/sample-2"
}
}
]
}
}
}Build site navigation
This sample query combines finding the site root with the ability to traverse item children. You can use the hasLayout argument to find only items with layout (navigable pages) and the includeTemplateIds argument to filter on a (base) data template.
Query
fragment navigationFields on Item {
... on AppRoute {
pageTitle {
value
}
}
url {
path
}
}
query {
layout(site: "experienceedge", routePath: "/", language: "en") {
item {
...navigationFields
children(hasLayout: true, includeTemplateIDs: "e34d8c4f7e6c560cbe24e4d1fcdb16d8") {
results {
...navigationFields
children(hasLayout: true, includeTemplateIDs: "e34d8c4f7e6c560cbe24e4d1fcdb16d8") {
results {
...navigationFields
}
}
}
}
}
}
}Result
{
"data": {
"layout": {
"item": {
"pageTitle": {
"value": "Welcome to Sitecore JSS"
},
"url": {
"path": "/"
},
"children": {
"results": [
{
"pageTitle": {
"value": "GraphQL | Sitecore JSS"
},
"url": {
"path": "/graphql"
},
"children": {
"results": [
{
"pageTitle": {
"value": "Sample 1 Page Title"
},
"url": {
"path": "/graphql/sample-1"
}
},
{
"pageTitle": {
"value": "Sample 2 Page Title"
},
"url": {
"path": "/graphql/sample-2"
}
}
]
}
},
{
"pageTitle": {
"value": "Styleguide | Sitecore JSS"
},
"url": {
"path": "/styleguide"
},
"children": {
"results": [
{
"pageTitle": {
"value": "Custom Route Type | Sitecore JSS"
},
"url": {
"path": "/styleguide/custom-route-type"
}
}
]
}
}
]
}
}
}
}
}Build a page breadcrumb
You can use the ancestors field on the item graph type to create breadcrumb navigation. Use the hasLayout argument to find only items with layout (navigable pages), and use includeTemplateIds to filter on a (base) data template.
Query
fragment breadcrumbFields on Item {
... on AppRoute {
pageTitle {
value
}
}
url {
path
}
}
query {
# Assume item id is available on page
item(path: "e2c5c62f42a95b17bc0e71bc9193db9a", language: "en") {
...breadcrumbFields
ancestors(
hasLayout: true
includeTemplateIDs: "e34d8c4f7e6c560cbe24e4d1fcdb16d8"
) {
...breadcrumbFields
}
}
}Result
{
"data": {
"item": {
"pageTitle": {
"value": "Custom Route Type | Sitecore JSS"
},
"url": {
"path": "/styleguide/custom-route-type"
},
"ancestors": [
{
"pageTitle": {
"value": "Styleguide | Sitecore JSS"
},
"url": {
"path": "/styleguide"
}
},
{
"pageTitle": {
"value": "Welcome to Sitecore JSS"
},
"url": {
"path": "/"
}
}
]
}
}
}Use item fields with Sitecore Headless SDKs
The various Sitecore Headless SDKs all contain helpers for rendering field values. These helpers assist with rendering complex fields (such as images or links) and editable values in the context of inline editing. Item fields in the Experience Edge schema include jsonValue that outputs the field in a format compatible with these field helpers.
For example, the following link field could be rendered in React or Next.js using the Link field helper:
<Link field={data.linkFieldExample?.externalLink?.jsonValue} />Query
query {
richTextFieldExample: item(path: "d979794f76fd51829f3ece48d16dc36c", language: "en") {
displayName
... on StyleguideFieldUsageRichText {
sample {
jsonValue
}
}
}
imageFieldExample: item(path: "c05be0b464885343b5670145b6815d03", language: "en") {
displayName
... on StyleguideFieldUsageImage {
sample1 {
jsonValue
}
}
}
linkFieldExample: item(path: "d299e65e1f6c5ea3b71381c8e2f85baf", language: "en") {
displayName
... on StyleguideFieldUsageLink {
externalLink {
jsonValue
}
}
}
}Result
{
"data": {
"richTextFieldExample": {
"displayName": "Styleguide-FieldUsage-RichText-3",
"sample": {
"jsonValue": {
"value": "<p>This is a sample rich text field. <mark>HTML is always supported.</mark> In Sitecore, editors will see a WYSIWYG editor for these fields.</p>"
}
}
},
"imageFieldExample": {
"displayName": "Styleguide-FieldUsage-Image-4",
"sample1": {
"jsonValue": {
"value": {
"src": "https://cm.experience_edge.localhost/-/media/experienceedge/data/media/img/sc_logo.png?iar=0&hash=F4F969FF95009AE0A80FA094C497ED25",
"alt": "Sitecore Logo"
}
}
}
},
"linkFieldExample": {
"displayName": "Styleguide-FieldUsage-Link-9",
"externalLink": {
"jsonValue": {
"value": {
"href": "https://www.sitecore.com",
"text": "Link to Sitecore",
"url": "https://www.sitecore.com",
"linktype": "external"
}
}
}
}
}
}
