Add a map

Current version: 10.1

The map rendering makes it easy to embed interactive maps anywhere on your webpages.

Before you can use a Map on your page, as an administrator, you must configure the Content-Security-Policy header in the web.config file to allow the functions that you want to use. The file is located in the root folder for your website. The following example shows how to configure the security policy:

RequestResponse
<add name="Content-Security-Policy" value="default-src 'self' 'unsafe-inline' 'unsafe-eval' data: maps.googleapis.com; img-src 'self' data: maps.gstatic.com *.googleapis.com *.ggpht; style-src 'self' 'unsafe-inline' https://fonts.googleapis.com; font-src 'self' 'unsafe-inline' https://fonts.gstatic.com; upgrade-insecure-requests; block-all-mixed-content;" />

To add a Map rendering to a page:

  1. Open the Toolbox and, in the Maps section, click the Map rendering. When you click and start dragging a rendering, the placeholders where you can drop the rendering light up in blue. Position the Map rendering above the desired placeholder, and when the placeholder lights up, drop the rendering on the page.

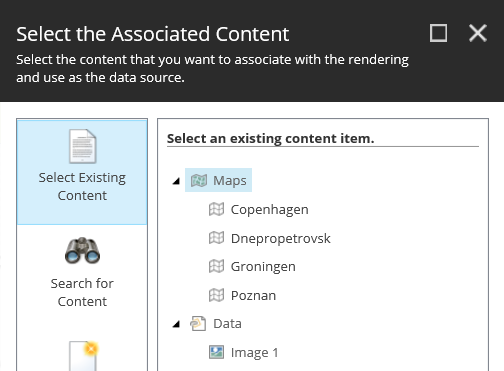

  2. In the Select the Associated Content dialog box, select the map that you want to display on the page and click OK.

    Select the Associated Content dialog box.
  3. In the Control Properties dialog box, in the Map Criteria section, edit the following fields to set the map criteria and styling:

    • Search results signature – to link the Map rendering to a specific Search Results rendering, enter the signature(s) (separated by a comma) of the Search Results rendering that you want to search on. For example, to display points of interest (POI) results after a user searches for hotels.

    • Center On Found POI – select to center the map on the POI selected in the Search Results rendering.

    • Animate Found POI – select to animate the POI selected in the Search Results rendering.

    • Disable map scrolling (dragging) – select to disable scrolling.

    • Disable map zoom on scroll – select to disable zooming.

  4. To adjust the appearance of the map, add CSS classes to the rendering. In the Styling section, select the style(s) you want.

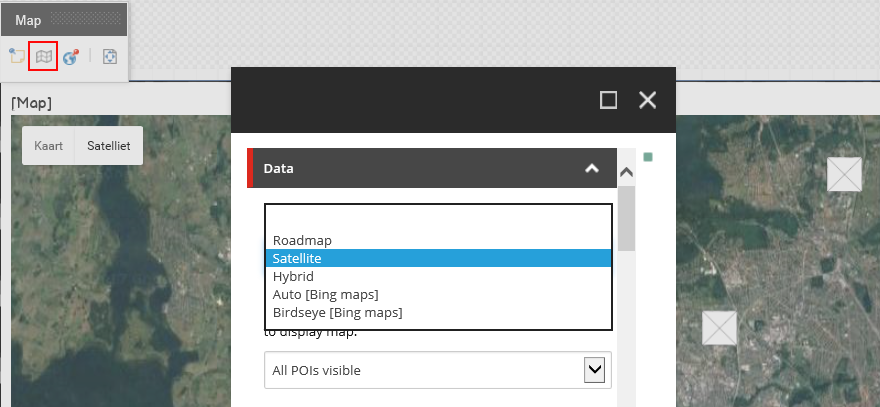

  5. To manage the view, the POIs, and the size of the map, on the Map toolbar, click Edit component map item and edit the relevant fields. For example, to display a satellite view of the map and have all POIs visible:

    Example Map

    You can edit the following map rendering fields:

    Field

    Default options

    Description

    Mode

    Select the map mode. By default, the Roadmap mode is selected.

    Roadmap

    Displays a simple view of roads and geography.

    Satellite

    Displays basic satellite image of the area.

    Hybrid

    Combines map data with the satellite imagery.

    Auto (Bing)

    Displays a standard Bing map view.

    Birdseye (Bing)

    Displays Bing's aerial photograph view.

    Central Point Mode

    Select the central point to display.

    Defined Central Point

    Select to specify that the values entered in the Central Point Longitude and Central Point Latitude fields are taken as the central point of the map.

    Current location

    Select to specify that this location is the central point of the map when the browser determines the user's current location.

    All POIs visible

    Select to calculate the central point between several defined points of interest (POIs). If you select this mode but there is only one POI defined, then the default map zoom is taken (instead of calculating it).

    Central Point Longitude

    Enter longitude coordinates to determine the central point of the map. For example:

    0.127759

    Central Point Latitude

    Enter latitude coordinates to determine the central point of the map. For example:

    51.507361

    Zoom

    1 - 20

    Select a value to determine the initial zoom level of the map. Users can change the zoom level on the page.

    Level 1 displays the whole map. Higher values mean more zoom.

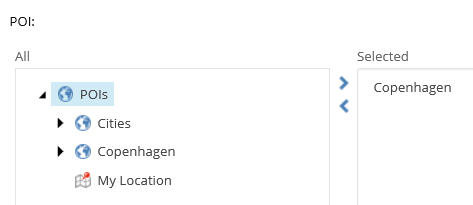

    POI

    Select POIs to display on the map.

    POIs on the map

    Width

    Enter the width of the map in pixels or percentages. If you do not enter a value, the map takes the width of the selected grid system.

    Height

    Enter the height of the map in pixels or percentages. If you do not enter a value, the map takes the height of the selected grid system.

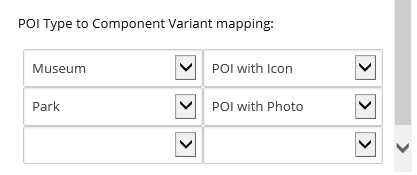

    POI Type to Component Variant mapping

    Select a POI type and a specific rendering variant to connect it to. This enables you to customize the view of POIs differently for each map. For example, you can display all museum POIs with an icon and all parks with a photo.

    POI to variant mapping
