Product synchronization service layer

The product sync domain model

Version:

This section describes the domain model that represents the product objects where the following three assertions hold true:

The domain model primarily serves as DTO objects for transferring information between the external commerce system and Sitecore.
The domain model contains the minimum required information as contracts and is typically extended, when integrated with a specific commerce system.
The domain model is used when a Sitecore developer wants to synchronize product data with the external commerce system or product data is pushed into Sitecore from the external commerce system

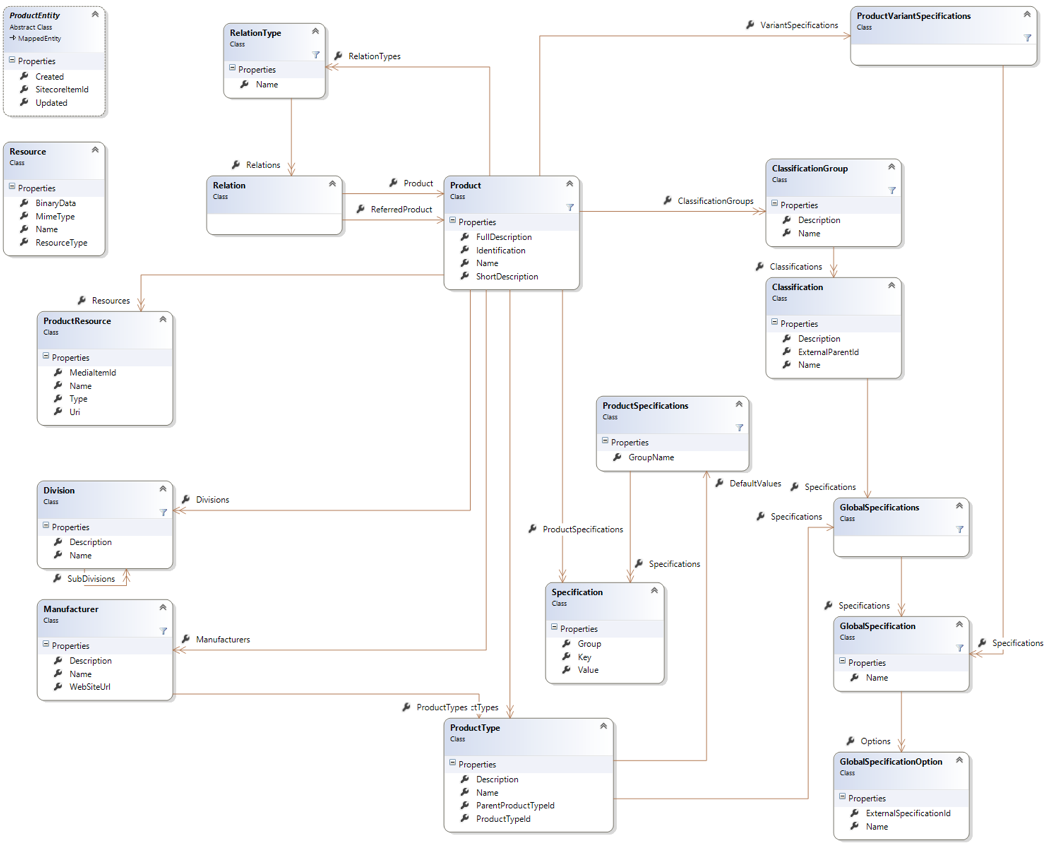

The following class diagram shows the domain model.

Note

The domain model consists of abstract classes that make up the contracts with the external system. The contracts are defined as abstract classes instead of interfaces to allow the model to be easily extended later if needed. This follow the best practice guidelines defined in the book Framework Design Guidelines.

Default implementation of the contracts are delivered as part of Connect. If an actual Connect provider with an external commerce system contains more functionality that provided by default, the implementation can be replaced. All instantiation of actual classes will be handled through dependency injection.

Class: Product

The product class is responsible for representing a product or any variant of it, hence a variant is a product in this model.

Name	Type	Description
ExternalId	String	Unique identifier for the product in the commerce system. This can be used to get a reference to the product using the commerce system's native API.
SitecoreItemId	String	Returns the Sitecore ID
Name	String	Name of the product
ShortDescription	String	The short description of the product.
FullDescription	String	The full description of the product.
ProductType	ProductType	A reference to the product type
Manufacturers	Manufacturer	Reference to the manufacturers
ClassificationGroups	IReadOnlyCollection	Reference to the associated classifications and categories
Specifications	ProductSpecifications	Collection of specifications set directly on the product
VariantSpecifications	ProductVariantSpecifications	List of references to specifications that tells the variants apart and which potentially can be selectable to the visitor
Resources	IReadOnlyCollection	Reference to the associated resources
Divisions	IReadOnlyCollection	Reference to the associated divisions
RelationTypes	IReadOnlyCollection	Reference to the related products
Created	DateTime	Date of creation
Updated	DateTime	Date of last update

Class: ProductSpecification

Name	Type	Description
ExternalId	String	Unique identifier used to identify the item in an external system.
SitecoreItemId	String	Represents the Sitecore ID.
Group	String
Key	String
Value	String
Created	DateTime
Updated	DateTime

Class: ProductSpecifications

Name	Type	Description
ExternalId	String	Unique identifier used to identify the item in an external system.
SitecoreItemId	String	Represents the Sitecore ID.
Specifications	IReadOnlyCollection
Created	DateTime
Updated	DateTime

Class: ProductClassification

Name	Type	Description
ExternalId	String	Unique identifier used to identify the item in an external system.
ExternalParentId	String
SitecoreItemId	String	Represents the Sitecore ID.
Name	String
Description	String
Specifications	ProductSpecifications
Created	DateTime
Updated

Class: ProductType

Name	Type	Description
ExternalId	string	Unique identifier used to identify the item in an external system.
SitecoreItemId	string	Represents the Sitecore ID.
ProductTypeId	String
Description	String
Specifications	ProductSpecifications
Created	DateTime
Updated	DateTime

Class: ProductManufacturer

Name	Type	Description
ExternalId	String	Unique identifier used to identify the item in an external system.
SitecoreItemId	String	Represents the Sitecore ID.
Name	String
Description	String
WebSiteUrl	String
ProductTypes	IReadOnlyCollection
Created	DateTime
Updated	DateTime

Class: ProductClassificationGroup

Name	Type	Description
ExternalId	String	Unique identifier used to identify the item in an external system.
SitecoreItemId	String	Represents the Sitecore ID.
Name	String
Description	String
Classifications	IReadOnlyCollection
Created	DateTime
Updated	Name

Class: ProductVariantSpecifications

Name	Type	Description
ExternalId	String	Unique identifier used to identify the item in an external system.
SitecoreItemId	String	Represents the Sitecore ID.
Specifications	IReadOnlyCollection
Created	DateTime
Updated	DateTime

Class: ProductResource

Name	Type	Description
ExternalId	String	Unique identifier used to identify the item in an external system.
SitecoreItemId	String	Represents the Sitecore ID.
Created	DateTime
Updated	DateTime

Class: Division

Name	Type	Description
ExternalId	String	Unique identifier used to identify the item in an external system.
SitecoreItemId	String	Represents the Sitecore ID.
Name	String
SubDivisions	IReadOnlyCollection
Created	DateTime
Updated	DateTime

Class: ProductRelation

Name	Type	Description
ExternalId	String	Unique identifier used to identify the item in an external system.
SitecoreItemId	String	Represents the Sitecore ID.
Product	Product
ReferredProduct	Product
Created	DateTime
Updated	DateTime

Class: ProductRelationType

Name	Type	Description
ExternalId	String	Unique identifier used to identify the item in an external system.
SitecoreItemId	String	Represents the Sitecore ID.
Name	String
Relations	IReadOnlyCollection
Created	DateTime
Updated	DateTime
