Payments domain model
This section describes the domain model that represents the payment information objects where the following three assertions hold true:
- The domain model primarily serves as DTO objects for transferring information between the external commerce system and Sitecore.
- The domain model contains the minimum required information as contracts and will typically be extended when integrated with a specific commerce system.
- The domain model is used when a Sitecore developer needs to synchronize product data with the external commerce system or product data is pushed into Sitecore from the external commerce system.

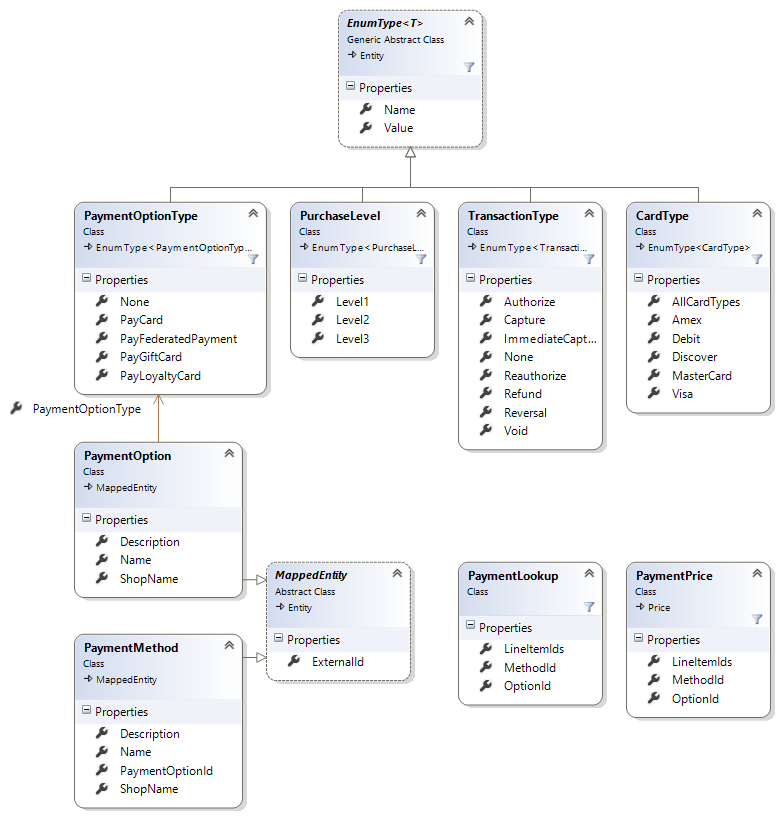

The following class diagram shows the domain model.
The domain model consists of abstract classes that make up the contracts with the external system. The contracts are defined as abstract classes instead of interfaces to allow the model to be easily extended later if needed. This follows the best practice guidelines defined in the Framework Design Guidelines. Default implementation of the contracts are delivered as part of Connect. If an actual Connect provider with an external commerce system contains more functionality than that provided by default, the implementation can be replaced. All instantiation of actual classes will be handled through dependency injection.
Class: PaymentMethod
The PaymentMethod class is responsible for representing a type of payment option, for example, Visa is a type of PayCard option.
| Name | Type | Description |
|---|---|---|
| ExternalId | String | Unique identifier for the payment method in the commerce system. |
| Description | String | A description of the payment method. |
| Name | String | The name of the payment method. |
| PaymentOptionId | String | The payment option associated with this payment method. |
| ShopName | String | The shop name if any associated with this payment method. |
Class: PaymentOption
The PaymentOption class is responsible for representing different payment option types, for example,Visa.
| Name | Type | Description |
|---|---|---|
| ExternalId | String | Unique identifier for the payment option in the commerce system. |
| Description | String | A description of the payment option. |
| Name | String | Name of the payment option. |
| ShopName | String | The shop name, if any, associated to the payment option. |
Class: PaymentOptionType
The PaymentOptionType class is a virtual enum class responsible for representing known payment option types, for example, gift card, credit card, and so on.
| Name | Type | Description |
|---|---|---|
| None | PaymentOptionType | An unassigned payment option. |
| PayCard | PaymentOptionType | Credit cards, debit cards, and so on. |
| PayGiftCard | PaymentOptionType | Represents gift cards. |
| PayLoyaltyCard | PaymentOptionType | Represents loyalty cards. |
Class: PaymentLookup
The PaymentLookup class is used to hold the information required to lookup payment prices for a collection of line items.
| Name | Type | Description |
|---|---|---|
| OptionId | String | An unassigned payment option. |
| MethodId | String | Credit cards, debit cards, and so on. |
| LineItemIds | List | The line items to check the pricing for. |
Class: PaymentPrice
The PaymentPrice class inherits from the Price object and is used to hold the pricing information for a payment option, method, and list of line items.
| Name | Type | Description |
|---|---|---|
| OptionId | String | An unassigned payment option. |
| MethodId | String | Credit cards, debit cards, and so on. |
| LineItemIds | List | The list of line items that the pricing applies to. |
Class: CardType
The CardType class is a virtual enum class responsible for representing the type of payment cards that can be accepted when processing a payment.
| Name | Type | Description |
|---|---|---|
| Visa | CardType | The Visa card type. |
| MasterCard | CardType | The Master Card card type. |
| Discover | CardType | The Discover card type. |
| Debit | CardType | The debit card type. |
| AllCardTypes | CardType | Represents all supported card types. |
Class: PurchaseLevel
The PurchaseLevel class is a virtual enum class that represents the level of card processing that will be performed during a payment service transaction.
| Name | Type | Description |
|---|---|---|
| Level1 | PurchaseLevel | Represents level 1 card processing. |
| Level2 | PurchaseLevel | Represents level 2 card processing. |
| Level3 | PurchaseLevel | Represents level 3 card processing. |
Class: TransactionType
The TransactionType class is a virtual enum class that represents the type of transaction being performed with a payment service.
| Name | Type | Description |
|---|---|---|
| None | TransactionType | No transaction is performed. |
| Authorize | TransactionType | Authorize a payment. |
| Reauthorize | TransactionType | Re-authorize a payment. |
| Capture | TransactionType | Capture a payment. |
| ImmediateCapture | TransactionType | Perform a capture with no delay. |
| Void | TransactionType | Void a payment. |
| Reversal | TransactionType | Reverse a payment. |
| Refund | TransactionType | Refund a payment. |
