Scaling options
You can vertically and horizontally scale the Sitecore Experience Platform to meet your requirements. Choose a default topology as a starting point or design your own.
Scaling vertically
You can vertically scale the Sitecore Experience Platform by:
-
Adding more resources (RAM, CPU) to a server or web application in your topology.
-
Combining or splitting web application roles.

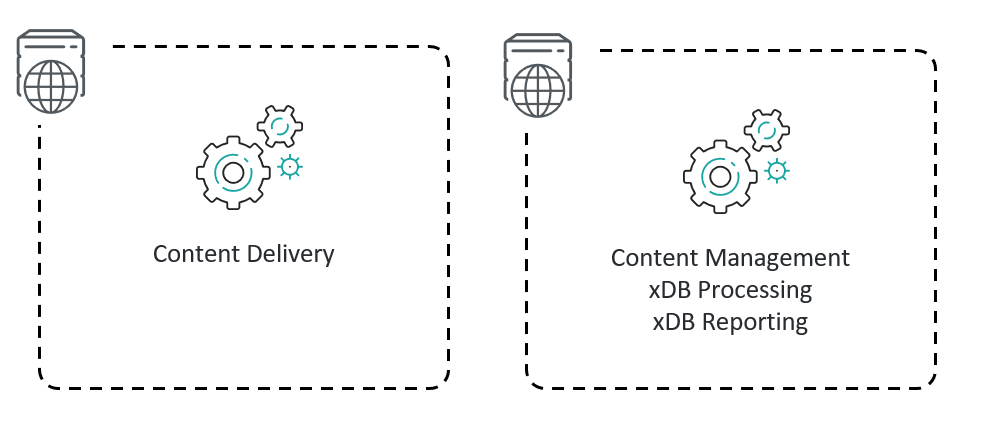

A single web application can be configured to perform multiple roles. The following diagram shows a subset of roles in an XP topology where Content Management, xDB Reporting, and xDB Processing run as a single combined application:
In an on-premise or IaaS setting, combined roles run as a single application with one web root and one application pool in IIS. In Azure, combined roles run as a single web app.

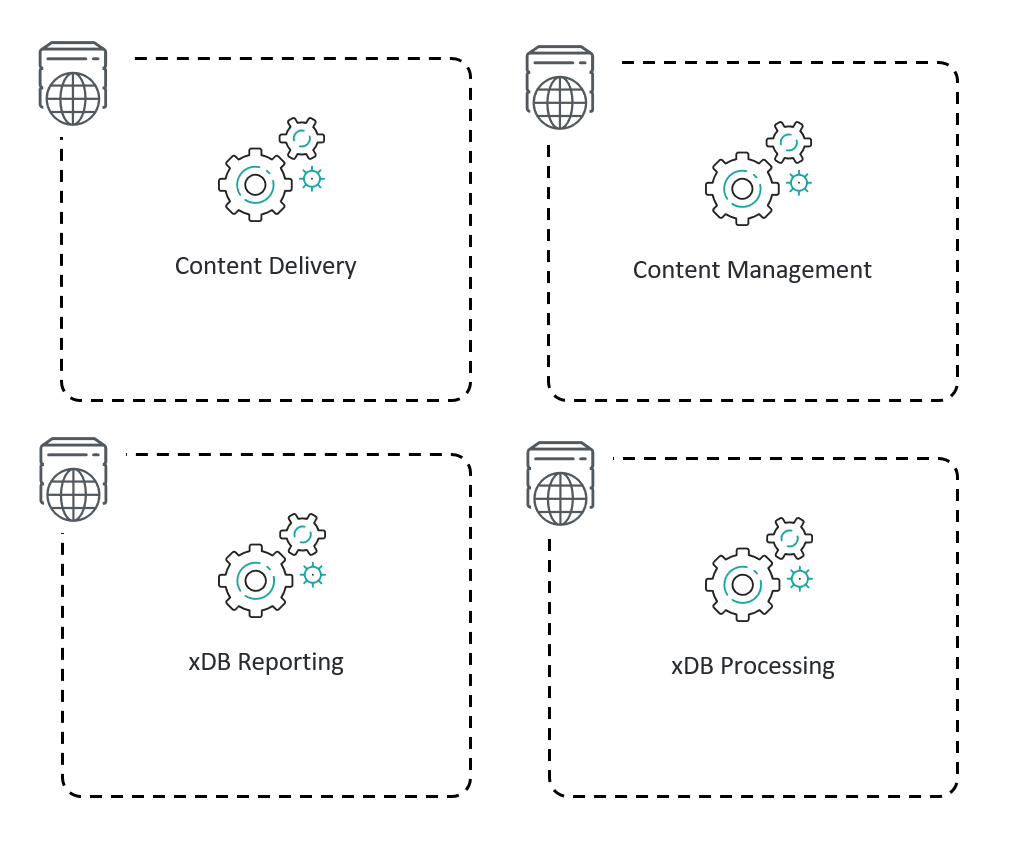

In a fully vertically scaled environment, each role runs as a standalone application:
You can split or combine roles to suit your scaling needs. For more information about supported combinations, refer to the scaling section of each role's configuration page. For example: Content Delivery, xConnect Collection.
Scaling horizontally

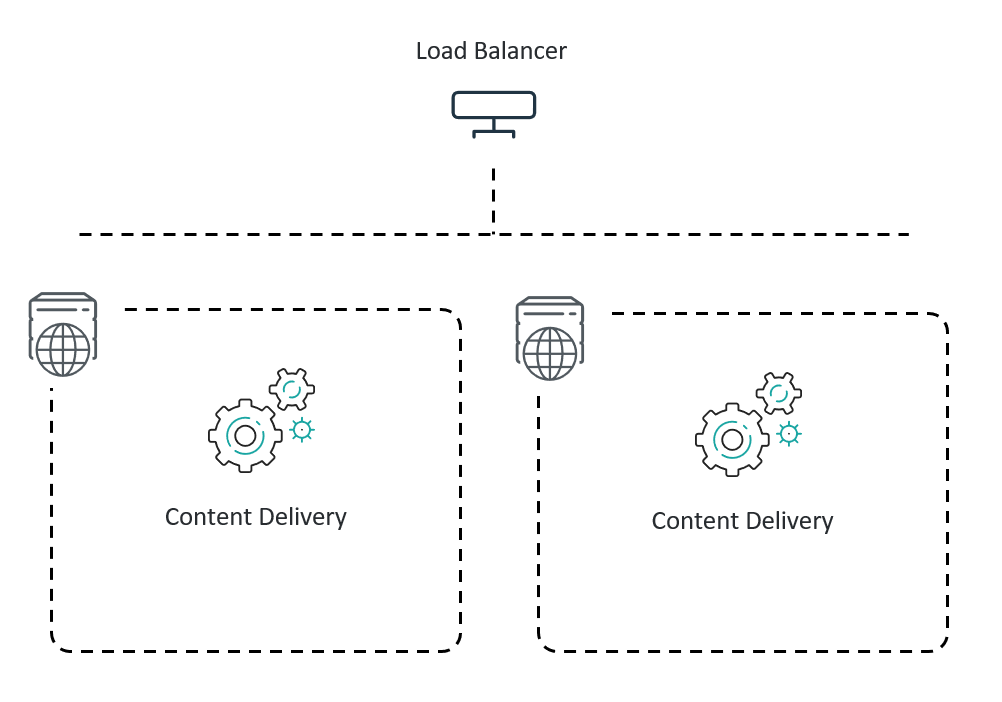

You can horizontally scale the Sitecore Experience Platform by dedicating multiple web applications to the same role within a topology. For example, you can deploy two instances of the Content Delivery role behind a load balancer:
Some roles, such as the xConnect Search Indexer, do not support horizontal scaling.
For more information about support for horizontal scaling, refer to the scaling section of each role's configuration page. For example: Content Delivery, xConnect Collection.
