Walkthrough: Building a custom message template

Current version: 10.1

In the Content Editor, you can build a custom message template that you can use for email campaigns in the Email Experience Manager (EXM). These message templates are different to the regular item templates in Sitecore. To build a custom message template, you create a branch template, a message template, a layout, and a view, and then bind these together and make them available in EXM.

Note

This walkthrough provides HTML examples. Before you begin making your message template, you must have the HTML code that you want to use for the layout in the final custom template. For inspiration on what to include in your custom template, refer to standard EXM email message templates.

This walkthrough describes how to:

Create a branch template

To create a custom message template, you need a branch template. You can base one of these on the existing EXM message templates. The custom message template is based on the Branch data template that consists of a branch template definition item and the $name item.

To create a branch template from an existing EXM message template:

  1. Open the Content Editor, and navigate to /sitecore/templates/Branches/System/Email/Messages. In the Options window, click New Branch.

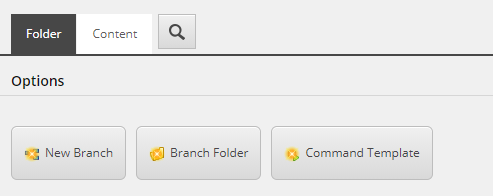

    Folder tab showing the New Branch button to create a new branch.
  2. To make sure that your email campaign is AB testable, in the Create a new branch dialog box that opens, navigate to System/Email/Messages, click AB Testable Message, and then click Create.

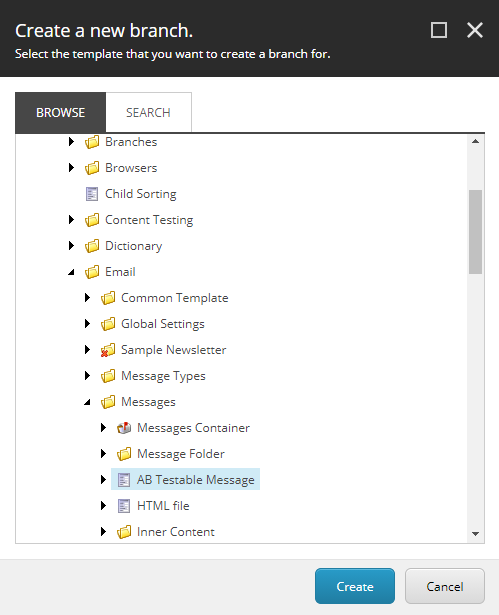

    The Create a new branch dialog box showing where to select the AB Testable Message.
  3. Rename the branch. To do so, either right-click and select Rename, or press F2. In the following example, we have named it Simple Email.

  4. On the Content tab for your branch, navigate to the Appearance tab, and upload a new thumbnail with the size 180x249 pixels. The thumbnail is used for your message template when users create a new email campaign in EXM. Also on the Content tab, scroll to the Help section, and add a Long Description. The long description is the text users see below the thumbnail when they create new messages using a template.

    Note

    If you do not see these options for thumbnail and description on the Content tab, on the View tab in the top navigation bar, select the Standard Fields check box.

  5. To bind your message template with the content layout, you must insert a message root under the $name item. Right-click the $name item, and click InsertInsert from template.

  6. In the Insert from Template dialog box, navigate to /Templates/System/Email/Messages/ Inner Content/Message Root, and in the Item name field, enter a name, for example, Message root, and click Insert.

  7. To connect the message root with the $name item, click the $name item, and in the Message section, in the Body field, click the drop-down arrow and navigate to the message root.

Your new branch template now looks like this:

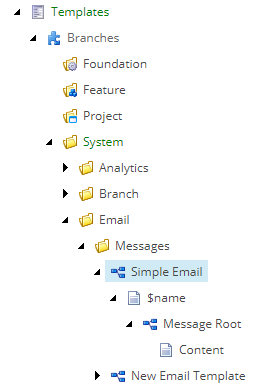

Content Editor Templates node showing your branch template, including a $name, message root, and content file.

Create a message data template

Create a new template to specify the standard values that you want to use as the default message content, for example, the text in the header and footer.

To create a message data template:

  1. In the Content Editor, navigate to sitecore/Templates/System/Email/Messages/Inner Content.

  2. On the Folder Tab, under Options, click New Template. In the Select Name window that opens, give your template a name, and click Next.

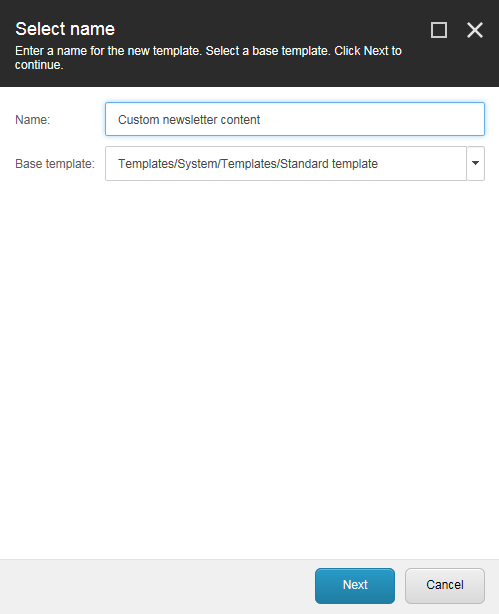

    The Select name dialog box where you can enter a name for your template.
  3. For your new template, on the Builder tab, in the Add a new section field, add the relevant data template fields, for example, header text and footer text.

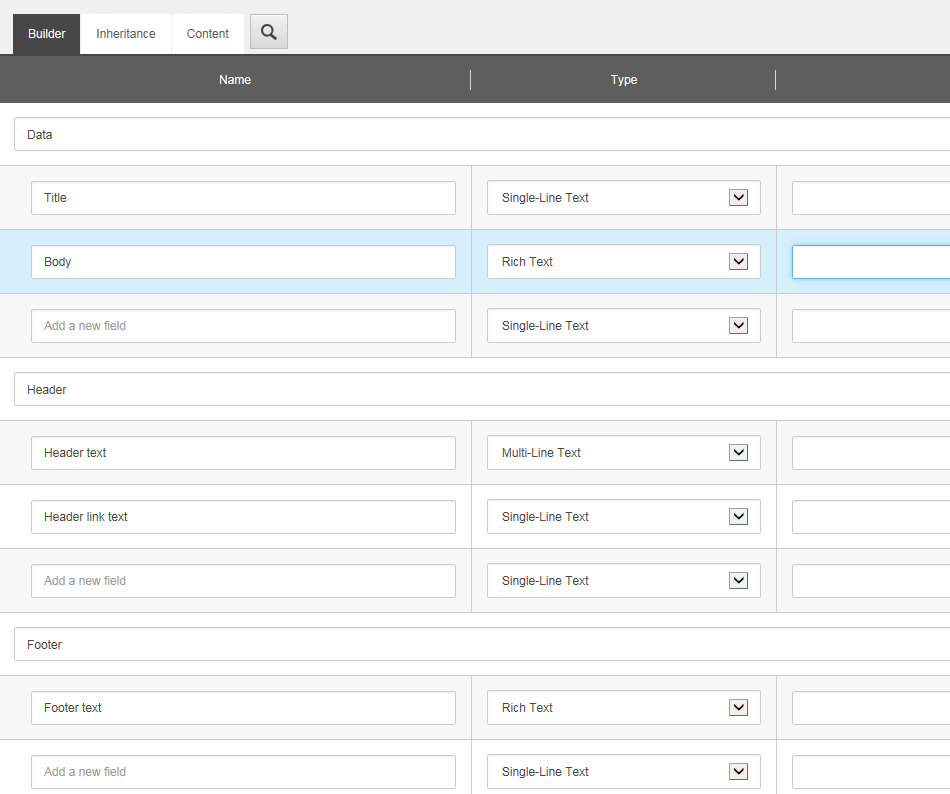

    The builder tab showing where to add the relevant template fields.
  4. Save your changes.

  5. In the tree navigation, go to the Message Root of your custom template, and create a Content child item. This means that you can now add content to your email messages.

Create the layout and view

For layouts, Sitecore uses the ASP.NET MVC framework. For more information on this, see MVC and renderings.

To create the layout of your message template using MVC:

  1. On your computer, navigate to \sitecore modules\Web\EXM\layouts, and create a <Your custom template>.cshtml file with the following content:

    RequestResponse
    @using Sitecore.Mvc
    @using Sitecore.Mvc.Presentation

    <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
    <html lang="en" xml:lang="en" xmlns="http://www.w3.org/1999/xhtml"
    <head>
    @Html.Sitecore().Placeholder("msg-html-title")
    </head>

    <body class="em_body" style="margin: 0px auto; padding: 0px;" bgcolor="#ffffff">
    @Html.Sitecore().Placeholder("msg-html-body")
    </body
    </html
  2. In Sitecore, in the Content Editor, navigate to /sitecore/Layout/Layouts/System/Email/. On the Folder tab, under Options, Layout, enter a new name for your layout, for example, Simple Email Layout, and click OK.

    The Folder tab showing where to enter a name for your layout.
  3. In the content tree, select the new layout and, on the Content tab, in the Data section, click in the Path field and navigate to where the layout file is saved, for example, /sitecore modules/Web/EXM/Layouts/SimpleEmailLayout.cshtml.

  4. On your computer, navigate to \Views, and create another <Your custom template>.cshtml file with the following content:

    RequestResponse
    @using Sitecore.Mvc.Presentation
    @using Sitecore.Mvc
    @model RenderingModel

    <h1>@Html.Sitecore().Field("Header", Model.Item)</h1>

    @Html.Sitecore().Field("Body", Model.Item)
  5. In Sitecore, the Content Editor, navigate to /sitecore/layout/Renderings/System/Email. On the Folder tab, under Options, click View rendering to create a new view rendering for your template. Set the Path to ~/Views/<Your custom template>.cshtml.

Bind the layout and the message template

To bind the layout and view to the message template:

  1. Navigate to the message root of the branch template that you created, for example, /sitecore/Templates/Branches/System/Email/Messages/<YourCustomTemplate>/Name/Message root.

  2. On the Presentation tab, in the Layout group, click Details.

  3. In the Layout Details dialog box, for the Default device, click Edit.

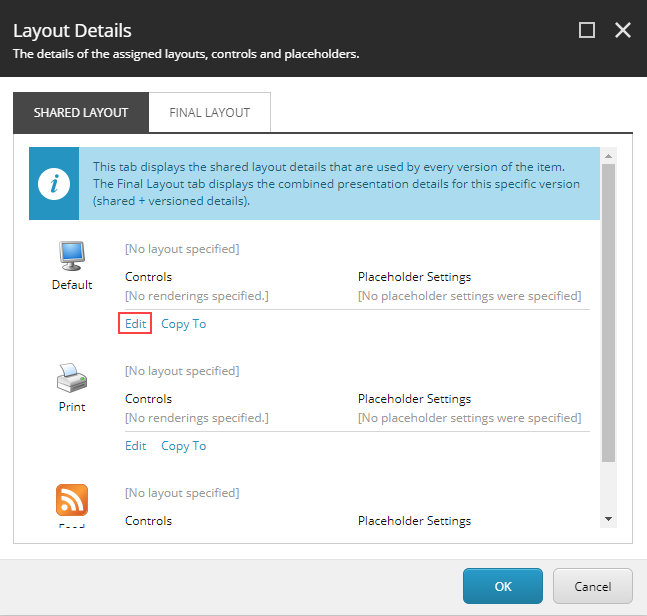

    The Layout Details dialog box showing where to edit the settings for Default device.
  4. In the Device Editor dialog box, on the Layout tab, click the drop-down menu and navigate to the layout that you created. In this example, we created Simple Email Layout.

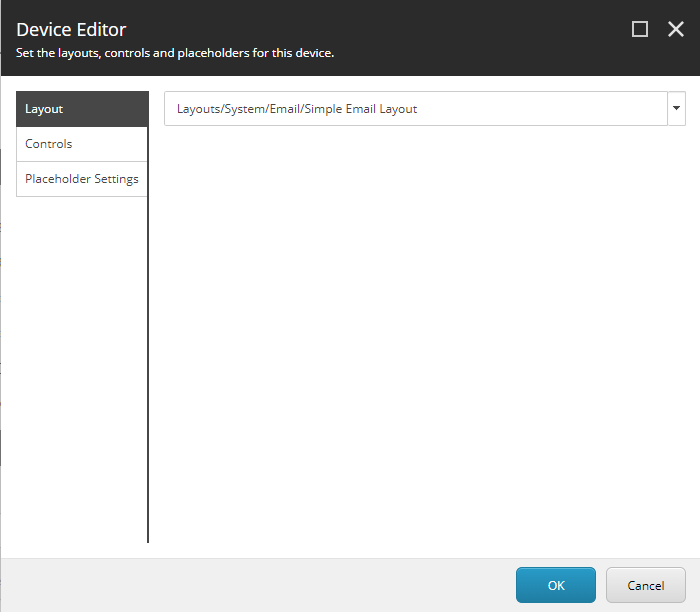

    The Device Editor showing where to select the layout you created in the drop-down menu on the Layout tab.
  5. Under Controls, click Add, and navigate to Renderings, System, Email. Expand the menu for your custom template. You must map the content from your MVC code snippet to the placeholders. As a minimum, add and map the following controls:

    • Set Page Title - under Add to Placeholder, map this to msg-html-title.

    • <YourCustomTeplate> Content - under Add to Placeholder, map this to msg-html-body. Under Data Source, write the path for your custom template's message root: /sitecore/Templates/Branches/System/Email/Messages/<YourCustomTemplate>/Name/Message root/<Your Content>.

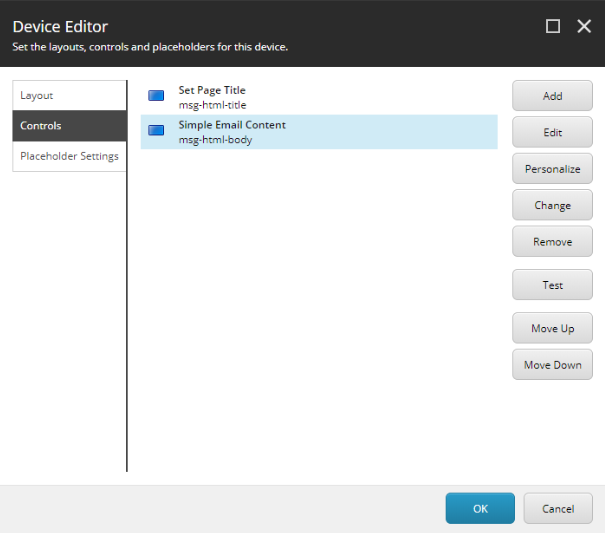

    The Device Editor dialog box showing how to map the controls to your MVC code.
  6. Under Control Properties, in the Caching section, select the following check boxes:

    • Cacheable

    • Vary by Data

    • Vary by Parameters

    • Vary by Query String

  7. Click OK.

Make your template available in EXM

To make the template available for your users in EXM:

  1. In the Content Editor, navigate to sitecore/Content/Email/Message Types.

  2. Expand the message type where you want to add the new message template and click the Default item.

  3. On the Configure tab, in the Insert Option group, click Assign.

  4. In the Insert Options dialog box, navigate to your message template, for example, /templates/Branches/System/Email/Messages/Simple Email, find your custom template, and add it to the Selected pane.

  5. Click OK and save your changes.

In EXM, your users can now choose your message template from the list of templates when they create a new message. If you uploaded a thumbnail and added a long description when you created your branch template, these display with the template. In the following example, we created the Simple Email template.

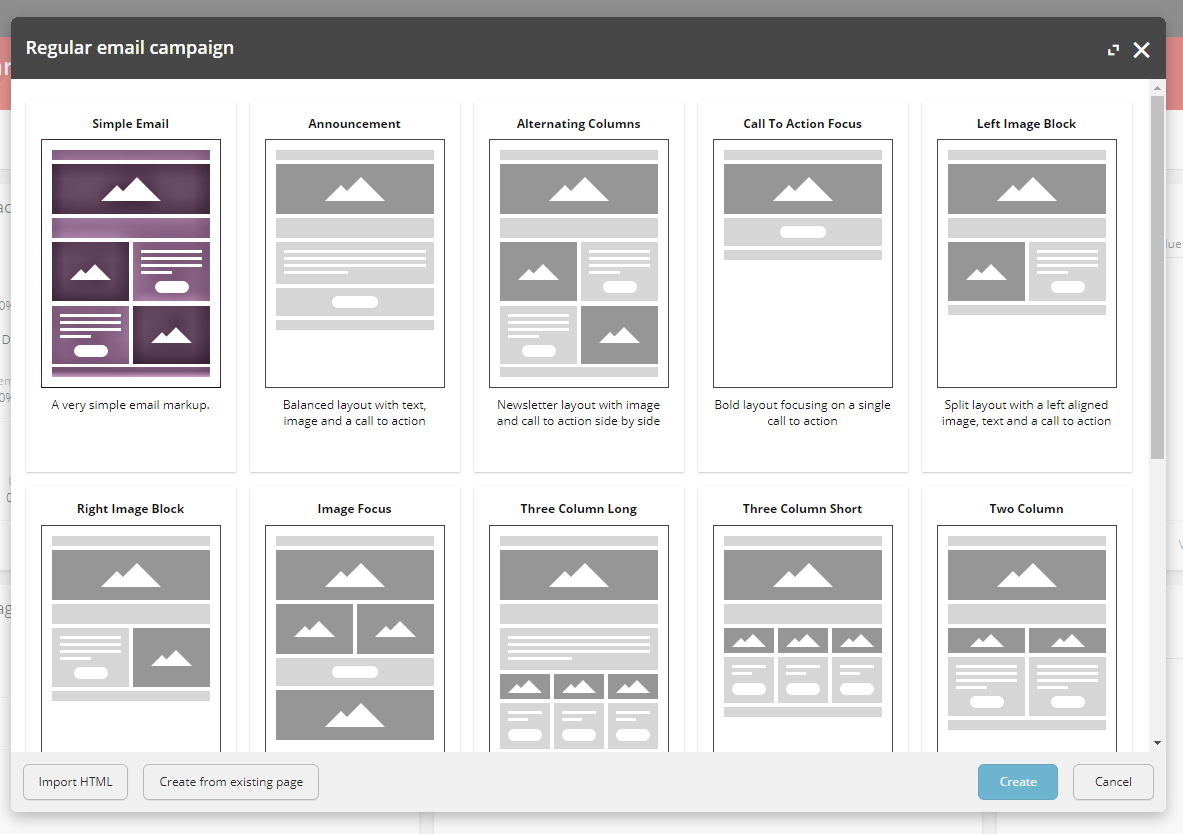

A visual example of the templates, including your new custom template.
