Data sources

Version: 9.3

SXA comes with a library of predefined renderings to ensure modular component based design. Most SXA renderings are designed for reusability and pull data from data source items. This means that the content they display is not bound to the page on which they appear but is stored in data source items. When you add a rendering to a page, in the Associated Content dialog you can select an existing or create a new data source item.

The following fields determine how a rendering relates to its data source item:

Datasource Location – specify where the user is allowed to look for the data source.
Datasource Template – specify the types of data sources users can create.
Data source – specifies a data source item.

This topic describes how SXA renderings, depending on how they use data source items.

Note

When building a new rendering, the Sitecore developer must decide which category a new custom rendering falls into, so the rendering can be properly configured.

No data source item

Renderings without data source items do not store their own data, for example, the Navigation and Breadcrumb renderings. They are static and not editable by content authors.

Field	Value
Datasource Location	Leave empty.
Datasource Template	Leave empty.
Data source	Leave empty.

Optional data source item

By default, renderings with an optional data source item read data from the current page, but can be set to read information from the data source item instead. For example, the Title, Subtitle, and Content renderings.

Field	Value
Datasource Location	Leave empty
Datasource Template	Leave empty
Data source	Leave empty or reference a data source item

Single data source item per platform/tenant/site

Renderings with a single data source item always use one data source that is unique for a specific platform, tenant, or site. For example, the Cookie Warning and Promo renderings.

Field	Value
Datasource Location	Leave empty
Datasource Template	Leave empty
Data source	Data source item reference

Reusable data source

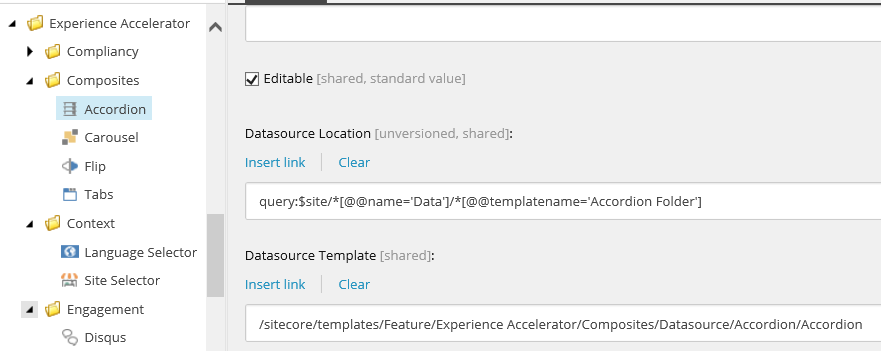

Renderings with a reusable data source enable the content editor to create and/or select a data source item. For example, the Accordion, Carousel, and Video renderings.

Field	Value
Datasource Location	Reference to the item that groups rendering data source items.
Datasource Template	Reference to the data source item template.
Data source	Leave empty.

Note

To select additional templates, navigate to the rendering sitecore/Layout/Renderings/Feature/rendering group/rendering and in the Experience Accelerator section, in the Additional compatible templates field, click the template and click the right arrow to move it to the list of selected templates.

Select Page as a data source

Renderings that can use content from the current page have an option to select the page as a data source. When the Can select Page as a data source box is selected, it lets you use a page as a data source. This option is available for renderings that take content from the current page such as Page Content, Page List, JSON content, and JSON list.

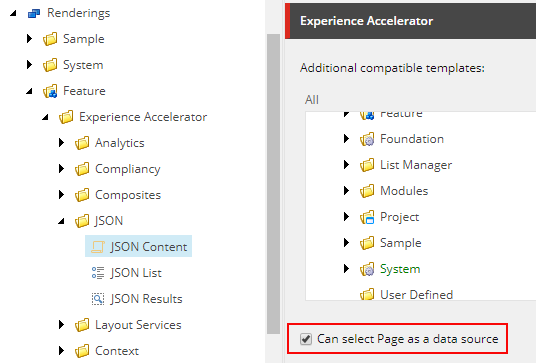

For example, navigate to sitecore/Layout/Renderings/Feature/JSON/JSON Content and in the Experience Accelerator section select the Can select Page as a data source option.

Use content from the current page and select the Page as data source option.

Auto-generated data source

Renderings with an automatically generated data source store data and create the data source item when a content editor places the rendering on the page. For example, the Rich Text, Image, and Plain HTML renderings.

Field	Value
Datasource Location	Reference to the item that groups rendering data source items.
Datasource Template	Reference to the data source item template.
Data source	Leave empty.

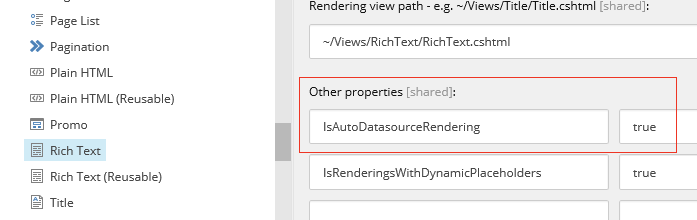

Other Properties	`IsAutoDatasourceRendering` - set to true for renderings for which a data source is automatically created after adding that rendering to a page: `IsRenderingsWithDynamicPlaceholders` - set to True if dynamic placeholders are enabled for the rendering.

Administrators can configure the behavior of non-reusable components in the Editing section of the Settings item (/sitecore/content/<TENANT_GROUP>/<TENANT>/<SITE>/Settings) by selecting one of the following options:

Auto-generate name and store item under site data – a new data source item is created with an auto-generated name and is stored in the location shared across the entire site.
Auto-generate name and store item under current page – a new data source item is created with an auto-generated name and is stored as a page relative data source item under a given page.
Prompt user for name and store item under site data – the author is prompted to provide a name for the new data source item, which is stored in the location shared across the entire site.
Prompt user for name and store item under current page – the author is prompted to provide a name for the new data source item, which is stored as a page relative data source item under a given page.

Rename local data sources

We recommend that you do not rename local data source items (<Page>/Data) manually. Changing the name of a local data source item can break the link with the component (because the links are stored as relative paths).

If you do rename a local data source item, you must reselect the item in the data source selection dialog.

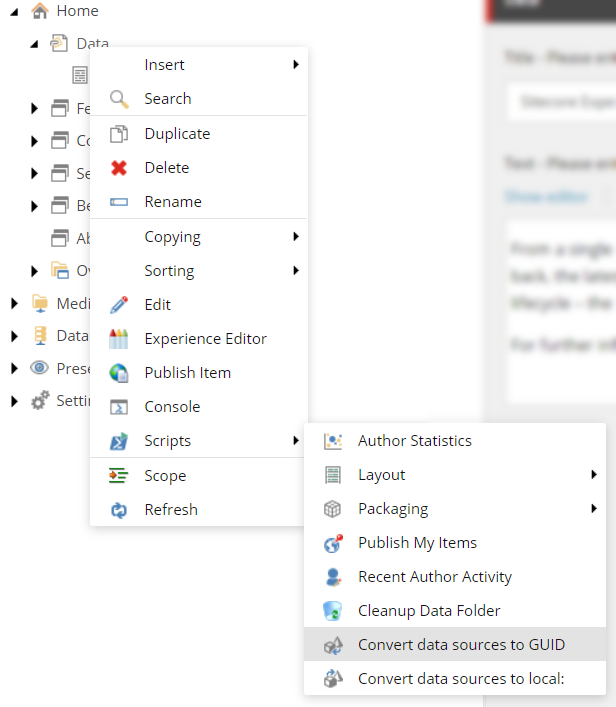

Alternatively, you can convert the data source references to GUIDs before you rename them. After you do that, it is safe to rename them.
