Enable IP whitelisting

Version:

For Managed Cloud Containers, there are two Azure Web Application Firewall (WAF) policies that are associated with the CD/CM frontend host. This topic describes how to enable whitelisting for IP addresses and range.

To enable IP whitelisting:

  1. Go to the Infrastructure repository and create a new branch.

  2. Update /frontdoor/main.tf with the following:

    • In the azurerm_frontdoor_firewall_policy, navigate to the custom_rule block and replace the match-values ["192.0.2.0/24"] with your values [your whitelisting IP address in CIDR format].

      For more information about how to manage an Azure Front Door Web Application Firewall Policy instance, go to AzureRM documentation on Terraform.

    • In the azurerm_frontdoor_firewall_policy, navigate to the custom_rule block and set enabled to true.

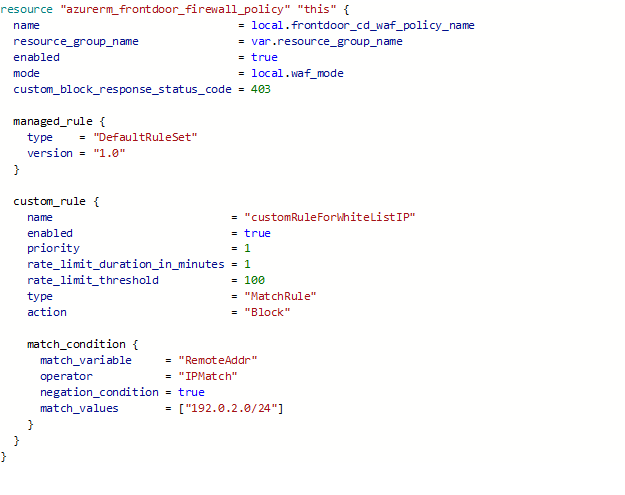

    For example, to apply the 192.0.2.0/24 whitelisting IP address for CD:

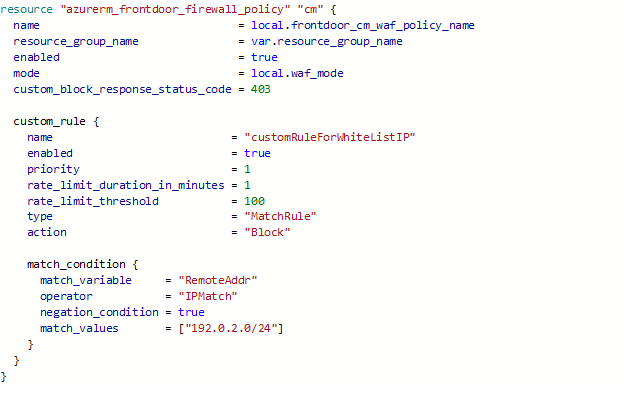

    For example, to apply whitelisting IP address 1.2.3.4. for CM:

  3. Create a pull request to merge with the main branch and complete it.

  4. Run the frontdoor pipeline and ensure that the pipeline executes successfully.
