Install Data Exchange Framework on-prem

Current version: 8.0

This section describes how you install Data Exchange Framework (DEF) in an on-prem solution. You must install DEF on your Content Management and Content Delivery servers.

The Data Exchange Framework (DEF) installation also installs the Tenant Service. If you install DEF on several servers you must enable the Tenant Service to communicate across servers.

Prerequisites for on-prem installation

Data Exchange Framework 8.0 requires Sitecore 10.3. Download the Data Exchange Framework 7.0 software package.

Note

If you want to install the Data Exchange Framework (DEF) on an earlier version of Sitecore, you can find all the DEF versions on the Sitecore download page.

You cannot install DEF on a Sitecore XM deployment topology.

Install on the content management role

Typically, data synchronization runs on a Content Management (CM) server. This requires the entire DEF product to be installed on your CM server.

To install the Data Exchange Framework on the CM server:

  1. In Sitecore, open the Installation Wizard.

  2. Install the Data Exchange Framework package.

  3. Before you close the Installation Wizard, select the Restart Server check box.

    Note

    You must restart the Sitecore Server to force Sitecore to build/convert the xDB Collection Model as Sitecore items.

  4. To confirm the module was installed, open the Content Editor and verify that the /sitecore/system/Data Exchange item is present.

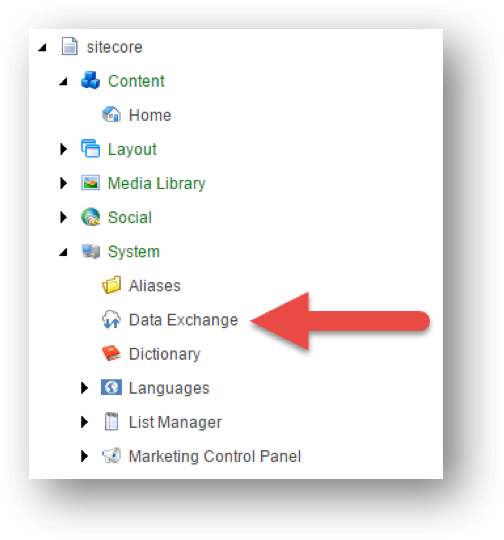

    The Data Exchange node in the content tree

Install on the content delivery role

In most cases, you do not run data synchronization on your Sitecore Content Delivery (CD) servers. However, the CD servers use the data that is synchronized. You must therefore install parts of DEF on all your CD servers.

Note

Before installing DEF on a CD server, you must install DEF on your Content Management server.

Because there is no installation interface on a CD server, to install DEF you must deploy the necessary .dat files manually.

Note

Starting with DEF 7.0, DEF items are provided as .dat files, in line with Sitecore items as resources introduced in Sitecore 10.2.

To deploy the files:

  1. On the content management (CM) instance, in the sitecore modules/items/ folder, copy all database folders, that is core, master, and web, and paste them to the content delivery (CD) instance, following the same folder structure.

    When you have copied the folders, on the CD instance, the sitecore modules/items folder contains three <db type>/items.<db type>.dat files, one for each database type. For example:

    • items/core/items.core.def.dat

    • items/master/items.master.def.dat

    • items/web/items.web.def.dat

  2. Restart the CD server.

Enable Tenant Service to communicate on different servers

If you have DEF with the Tenant Service installed on a different server than your Sitecore content management server, you must enable communication between the two servers:

  1. On your Sitecore Content Management server, in the \App_Config\Sitecore\Services.Client\ folder, open the Sitecore.Services.Client.config file.

  2. Locate the following setting:

    RequestResponseshell
    <setting name="Sitecore.Services.SecurityPolicy" value="Sitecore.Services.Infrastructure.Web.Http.Security.ServicesLocalOnlyPolicy,Sitecore.Services.Infrastructure"/>

    Change the setting to:

    RequestResponseshell
    <setting name="Sitecore.Services.SecurityPolicy" value="Sitecore.Services.Infrastructure.Web.Http.Security.ServicesOnPolicy,Sitecore.Services.Infrastructure"/>

The Sitecore ItemService service provides you with an API to read Sitecore items remotely. For example, the Tenant Service needs the ItemService to read the configuration.
