Walkthrough: Adding the Horizon module

Walkthrough: Adding the Horizon module

Version:

Horizon is the next-generation editor in Sitecore Experience Platform. To add the Horizon module, you must create specific Docker images, add them to the Azure Container Registry (ACR), and then change the item in the Application repository before running the Mssql containers. You must also extend the Front Door configuration with an additional public-facing service name.

This walkthrough describes the infrastructure changes that you have to apply when you want to deploy the Horizon module on top of an already deployed Managed Cloud containers environment.

This walkthrough describes how to:

Register a domain name
Extend the Front Door configuration
Prepare the Docker files
Push the images to the Azure Container Registry (ACR)
Download the Horizon Container Deployment package
Copy the base Horizon Kubernetes configuration files
Define Horizon configuration overlays
Change the image in the Application repository
Run the mssql_init_hrz container
Configure Ingress
Enable the Horizon component
Apply the change

Register a domain name

Because Horizon is a separate publicly available service, you must register a domain name for it.

To register a domain name:

Navigate to the portal where your DNS name is managed from.
Create an additional CNAME record for Horizon that points to Azure Front Door: {infrastructure_id}fdr.azurefd.net,

where infrastructureId is your environment identifier that starts with mcc.

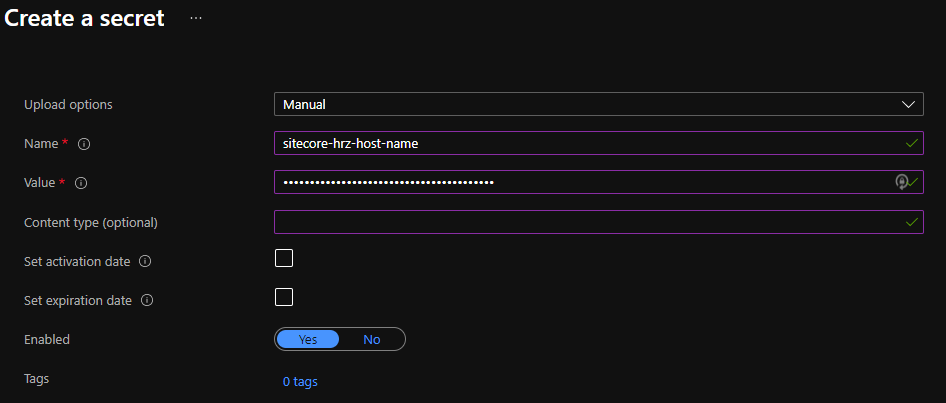

Navigate to the Azure Portal and create a secret within the Key Vault for the environment:
- Secret name - sitecore-hrz-host-name
- Secret value - the Horizon hostname that you created in the previous step.

Extend the Front Door configuration

You must extend the Front Door configuration with an additional public-facing service name.

To extend the Front Door configuration:

Navigate to frontdoor\backend-config.json and define the Horizon back-end config:

{
        "name": "hrz-ingress",
        "probe_path": "/healthz/live",
        "backend_list": [
            {
                "host_header": "hrz.sitecore"
            }
          ]
}

Navigate to frontdoor\main.tf and in the locals section, add a new variable to "sitecore_hrz_host_name“:
sitecore_hrz_host_name = data.azurerm_key_vault_secret.sitecore_hrz_host_name.value

Define the data resource to retrieve the Horizon host name from the Key Vault:

data "azurerm_key_vault_secret" "sitecore_hrz_host_name" {
name         = "sitecore-hrz-host-name"
key_vault_id = data.azurerm_key_vault.this.id
}

In the "azurerm_frontdoor" resource, define an additional routing_rule:

routing_rule {
    name               = "HTTPS-hrz"
    accepted_protocols = ["Https"]
    patterns_to_match  = ["/*"]
    frontend_endpoints = ["hrz-frontend-endpoint"]
    forwarding_configuration {
      forwarding_protocol = "MatchRequest"
      backend_pool_name   = "hrz-ingress"
    }
  }

In the "azurerm_frontdoor" resource, define the frontend_endpoint:

frontend_endpoint {
    name      = "hrz-frontend-endpoint"
    host_name =  local.sitecore_hrz_host_name
}

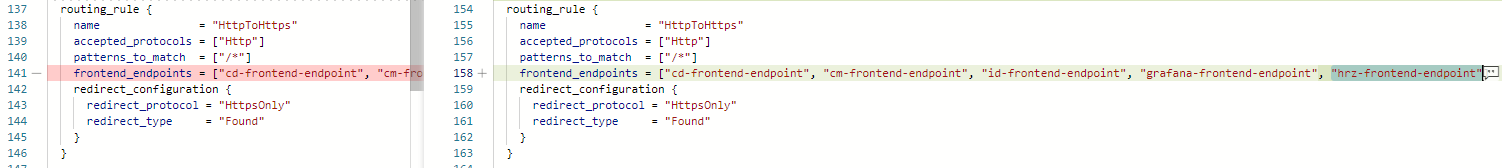

Adjust HttpToHttps so that it covers the HTTPS-hrz routing rule:
You must now apply the changes with a pull request to the Infrastructure repository before you can continue with the next steps.
Run the FrontDoor pipeline to apply the changes and wait until the pipeline is executed successfully.

Define the “azurerm_frontdoor_custom_https_configuration” resource:

resource "azurerm_frontdoor_custom_https_configuration" "hrz_https_configuration" {
  frontend_endpoint_id              = azurerm_frontdoor.this.frontend_endpoints["hrz-frontend-endpoint"]
  custom_https_provisioning_enabled = true

  custom_https_configuration {
    certificate_source                      = "AzureKeyVault"
    azure_key_vault_certificate_secret_name = data.azurerm_key_vault_certificate.sitecore_ingress_certificate.name
    azure_key_vault_certificate_vault_id    = data.azurerm_key_vault.this.id
    azure_key_vault_certificate_secret_version = data.azurerm_key_vault_certificate.sitecore_ingress_certificate.version
  }

  depends_on = [azurerm_frontdoor.this]
}

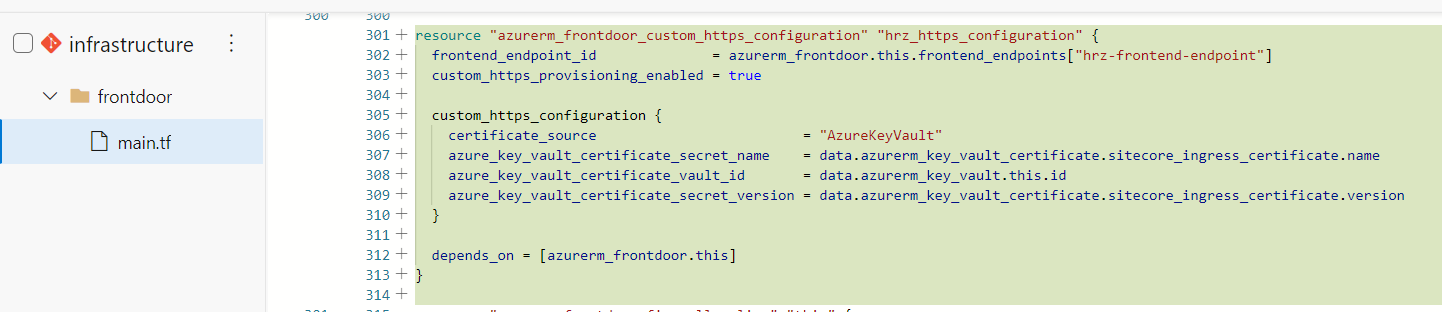

Apply the changes to the environment with a pull request to the infrastructure repository.

The expected result:
Run the FrontDoor pipeline to apply the changes and wait until the pipeline is executed successfully.

Prepare the Docker files

To prepare the Sitecore platform images to work with the Horizon service:

Install the Horizon integration asset image on top of Sitecore content management (CM) and MSSQL-INIT images.

Refer to the Kubernetes deployment guide for Sitecore Horizon for instructions on how to build corresponding custom images.

Push the images to the Azure Container Registry (ACR)

To push the images to the ACR:

In PowerShell, execute the docker push command. You must push all images to the pre-provisioned ACR: {infrastructure_id}acr

Download the Horizon Container Deployment package

A prerequisite for adding the Horizon module is the Horizon Container Deployment package.

To download the package:

On dev.sitecore.net, navigate to the page for the specific Sitecore version that you use and in the Download options section, go to Container Deployment Package.
Download the SitecoreHorizonContainerDeployment zip package and unarchive it to a local folder.

Copy the base Horizon Kubernetes configuration files

To copy the Horizon configuration files:

Navigate locally to the Application repository folder and create a folder with the following path:
roles\sitecore-{topology}\bases\components\horizon
Copy the following Horizon base configuration files from the SitecoreHorizonContainerDeployment package into the folder that you created earlier:
- k8s\ltsc2019\horizon\hrz.yaml
- * k8s\ltsc2019\horizon\ patch-hrz-enable-dam.yaml
- * k8s\ltsc2019\horizon\ patch-hrz-enable-sxa.yaml
- overrides\{topology}\patch-cm.yaml
- overrides\{topology}\patch-id.yaml

  Note

  The files marked with * are optional. They are required if you want integration with SXA and/or Dam. For more details about the SXA/Dam integration refer to the Horizon deployment guide.

In the folder created in step 1, create the kustomization.yaml file with the following content:

apiVersion: kustomize.config.k8s.io/v1alpha1
kind: Component

resources:
  - hrz.yaml

patchesStrategicMerge:
- patch-id.yaml
- patch-cm.yaml
# Uncomment following line to enable DAM integration in the Horizon
#- patch-hrz-enable-dam.yaml
# Uncomment following line to enable SXA integration in the Horizon
#- patch-hrz-enable-sxa.yaml

Define Horizon configuration overlays

To integrate the Horizon module configuration with the Managed Cloud Containers environment, you must define an overlay layer on top of the Horizon base configuration. This abstraction makes it easier to replace the Horizon base configuration in Horizon module upgrades in future releases.

To define the overlays:

Create the roles\sitecore-{topology}\overlays\components\horizon\cm.yaml file with the following content:

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: cm
spec:
  progressDeadlineSeconds: 3600
  template:
    spec:
      containers:
      - name: sitecore-xp1-cm
        image: "{{ docker_images.sitecore.cm }}"
        env:
        - name: SITECORE_HOSTNAME_HRZ
          valueFrom:
            secretKeyRef:
              key: hrz
              name: sitecore-hostname
        - name: Sitecore_Horizon_ClientHost
          value: "https://$(SITECORE_HOSTNAME_HRZ)"

Create the roles\sitecore-{topology}\overlays\components\horizon\id.yaml file with the following content:

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: id
spec:
  progressDeadlineSeconds: 3600
  template:
    spec:
      containers:
      - name: sitecore-xp1-id
        image: "{{ docker_images.sitecore.id }}"
        env:
        - name: SITECORE_HOSTNAME_CM
          valueFrom:
            secretKeyRef:
              key: cm
              name: sitecore-hostname
        - name: SITECORE_HOSTNAME_ID
          valueFrom:
            secretKeyRef:
              key: id
              name: sitecore-hostname
        - name: SITECORE_HOSTNAME_HRZ
          valueFrom:
            secretKeyRef:
              key: hrz
              name: sitecore-hostname
        - name: Sitecore_Sitecore__IdentityServer__AccountOptions__PasswordRecoveryUrl
          value: "https://$(SITECORE_HOSTNAME_CM)/sitecore/login?rc=1"
        - name: Sitecore_Sitecore__IdentityServer__Clients__DefaultClient__AllowedCorsOrigins__AllowedCorsOriginsGroup1
          value: "https://$(SITECORE_HOSTNAME_CM)"
        - name: Sitecore_Sitecore__IdentityServer__PublicOrigin
          value: "https://$(SITECORE_HOSTNAME_ID)"
        - name: SITECORE_ENVIRONMENT_TYPE
          value: "{{ sitecore_environment_type }}"
        - name: Sitecore_Sitecore__IdentityServer__Clients__DefaultClient__AllowedCorsOrigins__AllowedCorsOriginsGroup2
          value: "https://$(SITECORE_HOSTNAME_HRZ)"

Create the roles\sitecore-{topology}\overlays\components\horizon\hrz.yaml file with the following content:

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: hrz
spec:
  progressDeadlineSeconds: 3600
  template:
    spec:
      containers:
      - name: sitecore-horizon
        image: "{{ docker_images.sitecore.hrz }}"
        env:
        - name: SITECORE_HOSTNAME_HRZ
          valueFrom:
            secretKeyRef:
              key: hrz
              name: sitecore-hostname
        - name: SITECORE_HOSTNAME_CM
          valueFrom:
            secretKeyRef:
              key: cm
              name: sitecore-hostname
        - name: SITECORE_HOSTNAME_ID
          valueFrom:
            secretKeyRef:
              key: id
              name: sitecore-hostname
        - name: Sitecore_Sitecore__Authentication__OpenIdConnectOptions__CallbackAuthority
          value: "https://$(SITECORE_HOSTNAME_HRZ)"
        - name: Sitecore_SitecorePlatform__ContentManagementInternalUrl
          value: http://cm.{{ solution_id }}.svc.cluster.local
        - name: Sitecore_SitecorePlatform__ContentManagementUrl
          value: "https://$(SITECORE_HOSTNAME_CM)"
        - name: Sitecore_Sitecore__Authentication__OpenIdConnectOptions__Authority
          value: "https://$(SITECORE_HOSTNAME_ID)"
        - name: Sitecore_Sitecore__Authentication__BearerAuthenticationOptions__Authority
          value: "https://$(SITECORE_HOSTNAME_ID)"

Create the roles\sitecore-{topology}\overlays\components\horizon\kustomization.yaml file with the following content:

---
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

resources:
- sitecore-roles.yaml

patchesStrategicMerge:
- cm.yaml
- id.yaml
- hrz.yaml

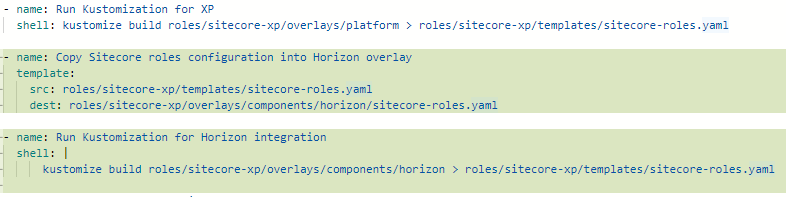

To execute the overlays, navigate to roles\sitecore-{topology}\tasks\main.yaml and add the following:

- name: Copy Sitecore roles configuration into Horizon overlay
  template:
    src: roles/sitecore-xp/templates/sitecore-roles.yaml
    dest: roles/sitecore-xp/overlays/components/horizon/sitecore-roles.yaml

- name: Run Kustomization for Horizon integration
  shell: |
      kustomize build roles/sitecore-xp/overlays/components/horizon > roles/sitecore-xp/templates/sitecore-roles.yaml

The expected result:

Note

This code example is for XP topology. For XM, replace ‘sitecore-xp’ with ‘sitecore-xm’.

Change the image in the Application repository

Now you can add the Horizon-specific image and two new properties to the Application repository.

To change the images in the Application repository:

In the Application repository, navigate to config/docker-images and edit the docker-images.json file as follows:
- Replace the cm image with cm-hrz, that you created earlier.
- Add the mssql_init_hrz property, that you created earlier.
- Add the hrz property, and point it to the Horizon service public image that corresponds to your Sitecore version. You can find this value from Horizon artifacts downloaded earlier.

  Navigate to k8s\ltsc2019\horizon\kustomization.yaml to find the actual image name and tag. For example:

Run the mssql_init_hrz container

To run the mssql-init-horizon container:

Navigate to roles\sitecore-{topology}\templates\ and add the mssql-init-horizon job file under the name: mssql-init-horizon.yaml with the following content:

apiVersion: batch/v1
kind: Job
metadata:
 name: horizon-mssql-init
spec:
  template:
    spec:
      nodeSelector:
        kubernetes.io/os: windows
      imagePullSecrets:
        - name: sitecore-docker-registry
      containers:
      - name: mssql-init-horizon
        image: "{{ docker_images.sitecore.mssql_init_hrz }}"
        env:
        - name: sitecore_admin_password
          valueFrom:
            secretKeyRef:
              name: sitecore-admin
              key: sitecore-adminpassword.txt
        - name: SQL_ADMIN_PASSWORD
          valueFrom:
            secretKeyRef:
              name: sitecore-database
              key: sitecore-databasepassword.txt
        - name: SQL_ADMIN_LOGIN
          valueFrom:
            secretKeyRef:
              name: sitecore-database
              key: sitecore-databaseusername.txt
        - name: SQL_SERVER
          valueFrom:
            secretKeyRef:
              name: sitecore-database
              key: sitecore-databaseservername.txt
        - name: SQL_ELASTIC_POOL_NAME
          valueFrom:
            secretKeyRef:
              name: sitecore-database
              key: sitecore-database-elastic-pool-name.txt
        - name: DATABASES_TO_DEPLOY
          value: hrz
      restartPolicy: Never
  backoffLimit: 5

To add the Ansible tasks to execute the mssql-init-horizon job, navigate to roles\sitecore-{topology}\tasks\init.yaml and add the following script at the end of the file:

- name: Execute horizon mssql-init jobs
  k8s:
    apply: true
    namespace: "{{ solution_id }}"

    state: present
    definition: "{{ lookup('template', 'mssql-init-horizon.yaml') }}"

- name: 'Wait - Horizon Mssql-init job'
  k8s_info:
    kind: Job
    name: horizon-mssql-init
    namespace: "{{ solution_id }}"

  register: horizon_mssql_init_result
  until: (horizon_mssql_init_result.resources[0].status.conditions[0].type | default('')) == 'Complete'
  retries: 60
  delay: 60

- name: Get all Horizon Mssql completed pods
  k8s_info:
    kind: Pod
    namespace: "{{ solution_id }}"

    label_selectors:
      - job-name = horizon-mssql-init
  no_log: true
  register: horizon_mssql_pod_list

- name: Remove Horizon Mssql job's pods
  k8s:
    kind: Pod
    name: "{{ item.metadata.name }}"
    namespace: "{{ solution_id }}"

    state: absent
  no_log: true
  with_items: "{{ horizon_mssql_pod_list.resources }}"

Configure Ingress

Next you must define and apply the Ingress configuration and define the secrets.

To configure Ingress:

In the Application repository, navigate to the roles\sitecore-{topology}\templates\ folder and create the ingress-hrz.yaml file with the following content:

---
kind: Service
apiVersion: v1
metadata:
  name: hrz-external
spec:
  type: ExternalName
  externalName: hrz.{{ solution_id }}.svc.cluster.local
  ports:
  - port: 80
---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: sitecore-hrz-ingress
  annotations:
    kubernetes.io/ingress.class: "nginx"
    nginx.ingress.kubernetes.io/force-ssl-redirect: "false"
    nginx.ingress.kubernetes.io/rewrite-target: /
    nginx.ingress.kubernetes.io/proxy-buffering: "on"
    nginx.ingress.kubernetes.io/proxy-buffers-number: "4"
    nginx.ingress.kubernetes.io/proxy-buffer-size: "256k"
spec:
  rules:
  - host: "hrz.sitecore"
    http:
      paths:
      - path: /
        backend:
          serviceName: hrz-external
          servicePort: 80

To define secrets, navigate to roles\sitecore-{topology}\templates\secrets.yaml and define the sitecore-hrz-host-name secret with sitecore-secret-provider.
Extend the sitecore-hostname secret:
- key: hrz objectName: sitecore-hrz-host-name
The expected result

Add sitecore-hrz-host-name as a secret-provider parameter:

- |
          objectName: sitecore-hrz-host-name
          objectType: secret

The expected result:

Add the new task to roles\sitecore-{topology}\tasks\main.yaml:

- name: Install external horizon ingress service
  k8s:
    apply: true
    namespace: "nginx"
    state: present
    definition: "{{ lookup('template', 'ingress-hrz.yaml') }}"
    validate:
      fail_on_error: yes

Enable the Horizon component

To enable the Horizon component:

In the Application repository, navigate to the roles\sitecore-{topology}\overlays\platform\kustomization.yaml file and enable Horizon with the components element, pointing to the Horizon module configuration scripts folder.
components: - ../../bases/components/horizon

Apply the changes

Now that you have made all the required changes for the Horizon module to be added, you must apply the changes.

To apply the changes:

Apply the application changes to the environment with a pull request to the application repository.
Follow Kubernetes deployment guide from Horizon documentation to configure the SolrCloud search indexes after deployment.

If you have suggestions for improving this article, let us know!
