Query examples for the Delivery GraphQL API

This topic describes query examples for the Delivery GraphQL API.

Although some differences exist between the Preview GraphQL API and the Delivery GraphQL API, they share the same query and response shape, so you can try the queries in both APIs. You can test the queries in the GraphQL IDEs during development, before you use them in your application.

Note that the item IDs and paths in the query examples will not necessarily match those in your solution.

Before you begin

Review the GraphQL schema, including the relevant Sitecore concepts, the GraphQL entry points, and the available fields for search when creating queries.
Note the following about languages: If you specify a language value in the query, the results will only include items in that language. If your site supports a fallback language, enable publishing language fallback before making queries.

Starter queries

To get started, make the following queries in order. In the queries, replace paths, site names, and languages with values from your environment.

List sites with basic information

Retrieve information about all your sites, including every site name, language, and root path:

Query

graphql

query {
  site {
    allSiteInfo {
      results {
        name
        hostname
        language
        rootPath
      }
    }
  }
}

Result

json

{
  "data": {
    "site": {
      "allSiteInfo": {
        "results": [
          {
            "name": "<YOUR_SITE_NAME>",
            "hostname": "",
            "language": "en",
            "rootPath": "/sitecore/content/<YOUR_SITE_COLLECTION>/<YOUR_SITE_NAME>"
          }
        ]
      }
    }
  }
}

Get the Home item's rendered output

The rootPath retrieved in the previous query is the entry point into your site. Appending /home to the root path lets you retrieve details for your site's home page. For example, you can use the rendered field to retrieve the page layout data.

Query

graphql

query {
  item(path: "/sitecore/content/<YOUR_SITE_COLLECTION>/<YOUR_SITE_NAME>/home", language: "en") {
    id
    name
    rendered
  }
}

Result

json

{
  "data": {
    "item": {
      "id": "<ITEM_ID>",
      "name": "Home",
      "rendered": {
        "sitecore": {
          "context": { /* metadata */ },
          "route": { /* Content fields, components... */ }
        }
      }
    }
  }
}

Get an item and its fields

Using fields, you can retrieve the name and value of every content field stored on the item itself.

Query

graphql

query {
  item(path: "/sitecore/content/<YOUR_SITE_COLLECTION>/<YOUR_SITE_NAME>/home", language: "en") {
    id
    name
    fields {
      name
      value
    }
  }
}

Result

json

{
  "data": {
    "item": {
      "id": "<ITEM_ID>",
      "name": "Home",
      "fields": [
        {
          "name": "Title",
          "value": "Home"
        },
        {
          "name": "Content",
          "value": ""
        },
        {
          "name": "NavigationTitle",
          "value": "Home"
        },
        {
          "name": "__Created",
          "value": "20260311T150455Z"
        },
        {
          "name": "__Updated",
          "value": "20260311T150551Z"
        }
      ]
    }
  }
}

Get an item by ID or path

You can query items anywhere in your content tree by path or ID to read their fields and other properties. You can use inline fragments to cast items to their projected data template type and fields to their field type.

Query

graphql

query {
  # path can be an item tree path or GUID-based id
  item(path: "/sitecore/content/Experience-Edge/home", language: "en") {
    # items can be cast to a Template type with inline fragments
    ... on AppRoute {
      pageTitle {
        value
      }
    }
    # fields can be cast to a Field type with inline fragments
    field(name: "pageTitle") {
      ... on TextField {
        value
      }
    }
  }
}

Result

json

{
  "data": {
    "item": {
      "pageTitle": {
        "value": "Welcome to Sitecore JSS"
      },
      "field": {
        "value": "Welcome to Sitecore JSS"
      }
    }
  }
}

Layout and route data

Get item layout for a URL

Most often used with Headless SDKs, you can find items by their site name and HTTP URL and then obtain their Layout Service output for rendering by framework-specific Sitecore placeholder implementations.

Query

graphql

query {
  layout(site: "experienceedge", routePath: "/", language: "en") {
    item {
      rendered
    }
  }
}

Result

json

{
  "data": {
    "layout": {
      "item": {
        "rendered": {
          "sitecore": {
            "context": {
              "pageEditing": false,
              "site": {
                "name": "experienceedge"
              },
              "pageState": "normal",
              "language": "en",
              "itemPath": "/"
            },
            "route": {
              "name": "home",
              "displayName": "home",
              "fields": {
                "pageTitle": {
                  "value": "Welcome to Sitecore JSS"
                }
              },
              "deviceId": "fe5d7fdf-89c0-4d99-9aa3-b5fbd009c9f3",
              "itemId": "2bde2083-5542-5569-ac5e-f1f42e29f75a",
              "itemLanguage": "en",
              "itemVersion": 1,
              "layoutId": "714096fc-3998-52cf-b87a-951fc7ce39d3",
              "templateId": "e34d8c4f-7e6c-560c-be24-e4d1fcdb16d8",
              "templateName": "AppRoute",
              "placeholders": {
                "jss-main": [
                  {
                    "uid": "2c4a53cc-9da8-5f51-9d79-6ee2fc671b2d",
                    "componentName": "ContentBlock",
                    "dataSource": "{CC3A044C-776B-5423-9BEA-CC5C2EDA8C9B}",
                    "fields": {
                      "heading": {
                        "value": "Welcome to Sitecore JSS"
                      },
                      "content": {
                        "value": "<p>Thanks for using JSS!! Here are some resources to get you started:</p>\n\n<h3><a href=\"https://jss.sitecore.net\" rel=\"noopener noreferrer\">Documentation</a></h3>\n<p>The official JSS documentation can help you with any JSS task from getting started to advanced techniques.</p>\n\n<h3><a href=\"/styleguide\">Styleguide</a></h3>\n<p>The JSS styleguide is a living example of how to use JSS, hosted right in this app.\nIt demonstrates most of the common patterns that JSS implementations may need to use,\nas well as useful architectural patterns.</p>\n\n<h3><a href=\"/graphql\">GraphQL</a></h3>\n<p>JSS features integration with the Sitecore GraphQL API to enable fetching non-route data from Sitecore - or from other internal backends as an API aggregator or proxy.\nThis route is a living example of how to use an integrate with GraphQL data in a JSS app.</p>\n\n<div class=\"alert alert-dark\">\n  <h4>This app is a boilerplate</h4>\n  <p>The JSS samples are a boilerplate, not a library. That means that any code in this app is meant for you to own and customize to your own requirements.</p>\n  <p>Want to change the lint settings? Do it. Want to read manifest data from a MongoDB database? Go for it. This app is yours.</p>\n</div>\n\n<div class=\"alert alert-dark\">\n  <h4>How to start with an empty app</h4>\n  <p>To remove all of the default sample content (the Styleguide and GraphQL routes) and start out with an empty JSS app:</p>\n  <ol>\n    <li>Delete <code>/src/components/Styleguide*</code> and <code>/src/components/GraphQL*</code></li>\n    <li>Delete <code>/sitecore/definitions/components/Styleguide*</code>, <code>/sitecore/definitions/templates/Styleguide*</code>, and <code>/sitecore/definitions/components/GraphQL*</code></li>\n    <li>Delete <code>/data/component-content/Styleguide</code></li>\n    <li>Delete <code>/data/content/Styleguide</code></li>\n    <li>Delete <code>/data/routes/styleguide</code> and <code>/data/routes/graphql</code></li>\n    <li>Delete <code>/data/dictionary/*.yml</code></li>\n  </ol>\n</div>\n"
                      }
                    }
                  }
                ]
              }
            }
          }
        }
      }
    }
  }
}

This sample query combines finding the site root with the ability to traverse item children. You can use the hasLayout argument to find only items with layout (navigable pages) and the includeTemplateIds argument to filter on a (base) data template.

Query

graphql

fragment navigationFields on Item {
  ... on AppRoute {
    pageTitle {
      value
    }
  }
  url {
    path
  }
}

query {
  layout(site: "experienceedge", routePath: "/", language: "en") {
    item {
      ...navigationFields
      children(hasLayout: true, includeTemplateIDs: "e34d8c4f7e6c560cbe24e4d1fcdb16d8") {
        results {
          ...navigationFields
          children(hasLayout: true, includeTemplateIDs: "e34d8c4f7e6c560cbe24e4d1fcdb16d8") {
            results {
            	...navigationFields
            }
          }
        }
      }
    }
  }
}

Result

json

{
  "data": {
    "layout": {
      "item": {
        "pageTitle": {
          "value": "Welcome to Sitecore JSS"
        },
        "url": {
          "path": "/"
        },
        "children": {
          "results": [
            {
              "pageTitle": {
                "value": "GraphQL | Sitecore JSS"
              },
              "url": {
                "path": "/graphql"
              },
              "children": {
                "results": [
                  {
                    "pageTitle": {
                      "value": "Sample 1 Page Title"
                    },
                    "url": {
                      "path": "/graphql/sample-1"
                    }
                  },
                  {
                    "pageTitle": {
                      "value": "Sample 2 Page Title"
                    },
                    "url": {
                      "path": "/graphql/sample-2"
                    }
                  }
                ]
              }
            },
            {
              "pageTitle": {
                "value": "Styleguide | Sitecore JSS"
              },
              "url": {
                "path": "/styleguide"
              },
              "children": {
                "results": [
                  {
                    "pageTitle": {
                      "value": "Custom Route Type | Sitecore JSS"
                    },
                    "url": {
                      "path": "/styleguide/custom-route-type"
                    }
                  }
                ]
              }
            }
          ]
        }
      }
    }
  }
}

You can use the ancestors field on the item graph type to create breadcrumb navigation. Use the hasLayout argument to find only items with layout (navigable pages), and includeTemplateIds to filter on a (base) data template.

Query

graphql

fragment breadcrumbFields on Item {
  ... on AppRoute {
    pageTitle {
      value
    }
  }
  url {
    path
  }
}

query {
  # Assume the item id is available on the page
  item(path: "e2c5c62f42a95b17bc0e71bc9193db9a", language: "en") {
    ...breadcrumbFields
    ancestors(
      hasLayout: true
      includeTemplateIDs: "e34d8c4f7e6c560cbe24e4d1fcdb16d8"
    ) {
      ...breadcrumbFields
    }
  }
}

Result

json

{
  "data": {
    "item": {
      "pageTitle": {
        "value": "Custom Route Type | Sitecore JSS"
      },
      "url": {
        "path": "/styleguide/custom-route-type"
      },
      "ancestors": [
        {
          "pageTitle": {
            "value": "Styleguide | Sitecore JSS"
          },
          "url": {
            "path": "/styleguide"
          }
        },
        {
          "pageTitle": {
            "value": "Welcome to Sitecore JSS"
          },
          "url": {
            "path": "/"
          }
        }
      ]
    }
  }
}

Search and filtering

For information about search operators, see Search operator behavior.

Search for items using CONTAINS

Query

Here's an example of searching for items using the CONTAINS operator in a user-defined field:

graphql

query Search {
  search(
    where: {
      name: "title",
      value: "Sitecore",
      operator: CONTAINS
    }
  ) {
    results {
      id
      name
    }
  }
}

Result

json

{
  "data": {
    "search": {
      "results": [
        {
          "id": "D7B0CE08752847CDB433DCB599FC3CFF",
          "name": "About Sitecore"
        },
        {
          "id": "110D559FDEA542EA9C1C8A5DF7E70EF9",
          "name": "Home"
        }
      ]
    }
  }
}

Search for items using EQ

Query

Here's an example of searching for items that match exactly using the EQ operator:

graphql

query Search {
  search(
    where: {
      name: "_language"
      value: "en"
      operator: EQ
    }
  ) {
    results {
      id
      name
    }
  }
}

Result

json

{
  "data": {
    "search": {
      "results": [
        {
          "id": "DA5339458E674DBB99D8DEB8CE01DCFE",
          "name": "Text 7"
        },
        {
          "id": "6258935A37BA4EA6BE241AFF44939D49",
          "name": "Text 6"
        }
      ]
    }
  }
}

Search for items using multiple operators

Query

Here's an example of searching using both the CONTAINS and the EQ operators:

graphql

query Search {
  search(
    where: {
      AND: [
        { name: "title", value: "Sitecore", operator: CONTAINS }
        { name: "_language", value: "en", operator: EQ }
      ]
    }
  ) {
    results {
      id
      name
    }
  }
}

Result

json

{
  "data": {
    "search": {
      "results": [
        {
          "id": "D7B0CE08752847CDB433DCB599FC3CFF",
          "name": "About Sitecore"
        }
      ]
    }
  }
}

Get items filtered by multiple paths

You can filter items based on multiple paths. This query example assumes the following site structure:

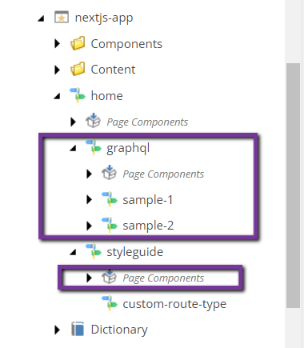

Content tree highlighting the items used in this example.

Assume that the /home/graphql and home/styleguide/Page Components items have the UUIDs 0C6F4AAF-DD7E-5FAF-B9B0-61070D496055 and AB99BA2B-B606-51E3-BAD9-FD8358DE1333, respectively. You want to get the /home items and descendants that are not /home/graphql and home/styleguide/Page Components or their children. The following query uses the NCONTAINS operator to exclude the path of these items and their children from the result.

Query

graphql

query {
  pageOne: search(
     where: {
       AND: [
         {
           name: "_path"
           value: "54C8E9B5-0B2C-5363-8FA6-D32A3A302F51"
           operator: CONTAINS
         }
         {
           AND: [
             {
               name: "_path"
               value: "0C6F4AAF-DD7E-5FAF-B9B0-61070D496055"
               operator: NCONTAINS
             }
             {
               name: "_path"
               value: "AB99BA2B-B606-51E3-BAD9-FD8358DE1333"
               operator: NCONTAINS
             }
           ]
         }
       ]
     }
     # defaults to 10
     first: 10
   ) {
     total
     pageInfo {
       endCursor
       hasNext
     }
     results {
       url {
         path
       }
     }
   }
 }

Result

The search query result does not contain items with the paths /home/graphql and home/styleguide/Page Components or any of their descendants but returns the /home item and the remaining child items.

json

{
  "data": {
    "pageOne": {
      "total": 5,
      "pageInfo": {
        "endCursor": "NQ==",
        "hasNext": false
      },
      "results": [
        {
          "url": {
            "path": "/styleguide/custom-route-type"
          }
        },
        {
          "url": {
            "path": "/styleguide"
          }
        },
        {
          "url": {
            "path": "/Page-Components/home-jss-main-ContentBlock-1"
          }
        },
        {
          "url": {
            "path": "/Page-Components"
          }
        },
        {
          "url": {
            "path": "/"
          }
        }
      ]
    }
  }
}

Get items filtered by dates and numbers within a range

You can use the CONTAINS, NCONTAINS, EQ, and NEQ operators to query for numbers and dates.

In addition, you can use the GT, GTE, LT, and LTE operators to query a range of numbers or dates.

When using range operators, the value must be wrapped in quotation marks. The date comparison supports all standard date/time formats, as well as yyyyMMddTHHmmssZ. Dates are stored in UTC format, but the values supplied in the query are treated as local time.

Important

Before using range operators for the first time, republish the content you want to query, to rebuild the internal data structure. Otherwise, the value will be compared lexicographically as strings. For example, without republishing, a value of 3 is considered greater than 123.

Query - date range

Here's an example of querying items within a date range:

graphql

query {
  search(
    where: {
      AND: [
        { name: "birthdate" operator: LT value: "2024-01-01"}
        { name: "birthdate" operator: GT value: "1950-01-01"}
      ]
    }
  ) {
    results {
      name
      BirthDate: field(name: "birthdate") {
        value
      }
    }
  }
}

Result - date range

json

{
  "data": {
    "search": {
      "results": [
        {
          "name": "john-smith",
          "BirthDate": {
            "value": "19820315T000000Z"
          }
        },
        {
          "name": "jane-doe",
          "BirthDate": {
            "value": "19701122T000000Z"
          }
        },
        {
          "name": "alex-jones",
          "BirthDate": {
            "value": "20001005T000000Z"
          }
        }
      ]
    }
  }
}

Query - number range

Here's an example of querying items within a number range:

graphql

query {
  search(
    where: {
      AND: [
        { name: "count" operator: LTE value: "300.0" }
        { name: "count" operator: GTE value: "71" }
      ]
    }
  ) {
    results {
      name
      Count: field(name: "count") {
        value
      }
    }
  }
}

Result - number range

json

{
  "data": {
    "search": {
      "results": [
        {
          "name": "3",
          "Count": {
            "value": "71"
          }
        },
        {
          "name": "2",
          "Count": {
            "value": "300"
          }
        },
        {
          "name": "1",
          "Count": {
            "value": "100"
          }
        }
      ]
    }
  }
}

Paginate items in an item bucket

When you work with Sitecore item buckets, a common requirement is to paginate all the items that descend from a particular template within that bucket. The following search query is helpful for these use cases.

Query

graphql

fragment bucketItemFields on Item {
  ... on AppRoute {
    pageTitle {
      value
    }
  }
  url {
    path
  }
}

query {
  search(
    where: {
      AND: [
        {
          name: "_templates"
          value: "0929f436c3f3500a9f8bd1c57a67a192"
          operator: CONTAINS
        }
        {
          name: "_path"
          value: "7ab00eca411249818420666fc9110faf"
          operator: CONTAINS
        }
      ]
    }
    first: 5
    orderBy: { name: "pageTitle", direction: ASC }
  ) {
    results {
      ...bucketItemFields
    }
    pageInfo {
      endCursor
      hasNext
    }
    total
  }
}

Result

json

{
  "data": {
    "search": {
      "results": [
        {
          "pageTitle": {
            "value": "Route A"
          },
          "url": {
            "path": "/bucket/2021/05/13/13/12/Route-A"
          }
        },
        {
          "pageTitle": {
            "value": "Route B"
          },
          "url": {
            "path": "/bucket/2021/05/13/13/12/Route-B"
          }
        },
        {
          "pageTitle": {
            "value": "Route C"
          },
          "url": {
            "path": "/bucket/2021/05/13/13/12/Route-C"
          }
        },
        {
          "pageTitle": {
            "value": "Route D"
          },
          "url": {
            "path": "/bucket/2021/05/13/13/12/Route-D"
          }
        },
        {
          "pageTitle": {
            "value": "Route E"
          },
          "url": {
            "path": "/bucket/2021/05/13/13/13/Route-E"
          }
        }
      ],
      "pageInfo": {
        "endCursor": "NQ==",
        "hasNext": true
      },
      "total": 26
    }
  }
}

Site discovery and structure

Get the root item of a site

The Experience Edge schema does not currently allow querying of sites and their root items, but you can still find the root item of a site by using the layout query.

Query

graphql

query {
  layout(site: "experienceedge", routePath: "/", language: "en") {
    item {
      homeItemPath: path
      contentRoot: parent {
        id
        path
      }
    }
  }
}

Result

json

{
  "data": {
    "layout": {
      "item": {
        "homeItemPath": "/sitecore/content/Experience-Edge/home",
        "contentRoot": {
          "id": "5AAA894246145088B7AD604B4D177B39",
          "path": "/sitecore/content/Experience-Edge"
        }
      }
    }
  }
}

Get all site paths/pages

You can use the site query to find all the items in a specific language with layout data/presentation details on that site. This is useful, for example, for obtaining paths for a static site generator. The route results are paginated and, by default, return only 10 results. You must use the endCursor property with the first and after query arguments to paginate the results.

Query

graphql

query {
 site {
  siteInfo(site: "example") {
   routes(language: "en") {
    results {
     route{
      id
     }
     routePath
    }
    total
    pageInfo {
     endCursor
     hasNext
    }
   }
  }
 }
}

Result

json

{
 "data": {
  "site": {
   "siteInfo": {
    "routes": {
     "routesResult": [
      {
       "route": {
        "id": "31FB4D08F5E14B4C9AA4EFE8F486B87D"
       },
       "routePath": "/Page-B"
      },
      {
       "route": {
        "id": "49195BCAB09241A3BC30311F00B7DDC8"
       },
       "routePath": "/Page-A"
      },
      {
       "route": {
        "id": "BCDA1741BF0D4CA695519FEAE634FFFF"
       },
       "routePath": "/"
      }
     ],
     "total": 3,
     "pageInfo": {
      "endCursor": "Mw==",
      "hasNext": false
     }
    }
   }
  }
 }
}

Site metadata and operations

Get information about all content sites

You can fetch information about all the content sites in a site query using the allSiteInfo field. For example, to get the name and root path of the first 100 available sites, use the following query:

Query

graphql

query {
 site {
  allSiteInfo(pageSize:100, pageNumber:1){
   results {
       name
       rootPath
    }
   total
  }
 }
}

Result

json

{
 "data": {
  "site": {
   "allSiteInfo": {
     results: [
        {
         "name": "example",
         "rootPath": "/sitecore/content/sxa/example"
        },
        {
         "name": "website",
         "rootPath": "/sitecore/content"
        }
     ],
    "total": 2
    }
  }
 }
}

Get information about a specific content site

You can use the siteInfo field in a site query to get information about a specific content site. For example, the following query returns the site name and root path.

Query

graphql

query {
 site {
  siteInfo(site: "example") {
   name
   rootPath
  }
 }
}

Result

json

{
 "data": {
  "site": {
   "siteInfo": {
    "name": "example",
    "rootPath": "/sitecore/content/sxa/example"
   }
  }
 }
}

List redirect rules

When querying for information about a specific site, you can request a list of redirect rules. In the following example query, the response includes the redirect type, target, pattern, and whether the redirection preserves any query string parameters.

Query

graphql

query {
 site {
  siteInfo(site: "example") {
   name
   rootPath
   redirects {
    redirectType
    isQueryStringPreserved
    target
    pattern
   }
  }
 }
}

Result

json

{
 "data": {
  "site": {
   "siteInfo": {
    "name": "example",
    "rootPath": "/sitecore/content/sxa/example",
    "redirects": [
     {
       "redirectType": "REDIRECT_302",
      "isQueryStringPreserved": true,
      "target": "/page C",
      "pattern": "/page b/"
     }
    ]
   }
  }
 }
}

Get error-handling pages

When querying for information about a specific site, you can request information on all the pages involved in the error-handling process. The result can help you determine if all the required error codes are handled and by which pages.

Query

graphql

query {
 site {
  siteInfo(site: "example") {
  	errorHandling(language: "en") {
    notFoundPage {
     id
     path
     field (name: "Title") {
      name
      value
     }
    },
    notFoundPagePath,
    serverErrorPage {
     id
     name
     path
     field (name: "Title") {
      name
      value
     }
    },
   serverErrorPagePath
   }
  }
 }
}

Result

json

{
 "data": {
  "site": {
   "siteInfo": {
    "errorHandling": {
     "notFoundPage": {
      "id": "7AC72838792444A389BDD10D63A30FA6",
      "path": "/sitecore/content/sxa/example/Home/custom-404-error-page",
      "field": {
       "name": "Title",
       "value": "custom-404-error-page"
      }
     },
     "notFoundPagePath": "/custom-404-error-page",
     "serverErrorPage": {
      "id": "846C9D39299740D0A25235ECA3F5B202",
      "name": "custom-500-error-page",
      "path": "/sitecore/content/sxa/example/Home/custom-500-error-page",
      "field": {
       "name": "Title",
       "value": "custom-500-error-page"
      }
     },
     "serverErrorPagePath": "/custom-500-error-page"
    }
   }
  }
 }
}

Get robot information

You can request information about which search engine crawlers can access the site using a site query.

Query

graphql

query {
 site {
  siteInfo(site: "example") {
   robots
  }
 }
}

Result

json

{
 "data": {
  "site": {
   "siteInfo": {
    "robots": "google, bing\r\nSitemap: https://xmcloudcm.localhost/sitemap.xml\r\n"
   }
  }
 }
}

Get the sitemap of an SXA site

You can query for the path to the media items generated for an SXA site sitemap.

Query

graphql

query {
 site {
  siteInfo(site: "example") {
   sitemap
  }
 }
}

Result

json

{
 "data": {
  "site": {
   "siteInfo": {
    "sitemap": " /-/media/Project/sxa/example/Sitemaps/sitemap.xml"
   }
  }
 }
}

Get dictionary entries

You can retrieve individual dictionary entries for a site by using the site query. You can combine cursor arguments to apply paging to the results. If those aren't provided, the default is a first page size of 500.

Query

graphql

query  {
  site {
    siteInfo(site: "example") {
      name
      dictionary(language:"en",first:2, after:"eyJzZWFyY2hBZnRlciI6WyJrZXkyIiwiZGVtb3NpdGUtMzVjZDg5NjJjNzE4NDI4Nzk2YzBmYTU2YmY2ZjRmMjIta2V5Mi11ay11YSJdLCJjb3VudCI6Mn0=")
      {
        total
        pageInfo{
          hasNext
          endCursor
        }
        results
        {
          key
          value
        }
      }
    }
  }
}

Result

json

{
  "data": {
    "site": {
      "siteInfo": {
        "name": "example",
        "dictionary": {
          "total": 2,
          "pageInfo": {
            "hasNext": false,
            "endCursor": "eyJzZWFyY2hBZnRlciI6WyJ0ZXN0MiIsIm5ldyBzaXRlLWU1MmU1ZjBiZmMxMzQ0Mzc5YWQ4YzcyMjY2NzIzZmI0LXRlc3QyLWVuIl0sImNvdW50IjoyfQ=="
          },
          "results": [
            {
              "key": "key1",
              "value": "value1"
            },
            {
              "key": "key2",
              "value": "value2"
            }
          ]
        }
      }
    }
  }
}

SDK rendering helpers

Use item fields with Sitecore Headless SDKs

The various Sitecore Headless SDKs all contain helpers for rendering field values. These helpers assist with rendering complex fields (such as images or links) and editable values in the context of inline editing. Item fields in the Experience Edge schema include jsonValue that outputs the field in a format compatible with these field helpers.

For example, the following link field could be rendered in React or Next.js using the Link field helper:

jsx

<Link field={data.linkFieldExample?.externalLink?.jsonValue} />

Query

graphql

query {
  richTextFieldExample: item(path: "d979794f76fd51829f3ece48d16dc36c", language: "en") {
    displayName
    ... on StyleguideFieldUsageRichText {
      sample {
        jsonValue
      }
    }
  }
  imageFieldExample: item(path: "c05be0b464885343b5670145b6815d03", language: "en") {
    displayName
    ... on StyleguideFieldUsageImage {
      sample1 {
        jsonValue
      }
    }
  }
  linkFieldExample: item(path: "d299e65e1f6c5ea3b71381c8e2f85baf", language: "en") {
    displayName
    ... on StyleguideFieldUsageLink {
      externalLink {
        jsonValue
      }
    }
  }
}

Result

json

{
  "data": {
    "richTextFieldExample": {
      "displayName": "Styleguide-FieldUsage-RichText-3",
      "sample": {
        "jsonValue": {
          "value": "<p>This is a sample rich text field. <mark>HTML is always supported.</mark> In Sitecore, editors will see a WYSIWYG editor for these fields.</p>"
        }
      }
    },
    "imageFieldExample": {
      "displayName": "Styleguide-FieldUsage-Image-4",
      "sample1": {
        "jsonValue": {
          "value": {
            "src": "https://cm.experience_edge.localhost/-/media/experienceedge/data/media/img/sc_logo.png?iar=0&hash=F4F969FF95009AE0A80FA094C497ED25",
            "alt": "Sitecore Logo"
          }
        }
      }
    },
    "linkFieldExample": {
      "displayName": "Styleguide-FieldUsage-Link-9",
      "externalLink": {
        "jsonValue": {
          "value": {
            "href": "https://www.sitecore.com",
            "text": "Link to Sitecore",
            "url": "https://www.sitecore.com",
            "linktype": "external"
          }
        }
      }
    }
  }
}

If you have suggestions for improving this article, let us know!

Query examples for the Delivery GraphQL API

Starter queries

List sites with basic information

Query

Result

Get the Home item's rendered output

Query

Result

Get an item and its fields

Query

Result

Get an item by ID or path

Query

Result

Layout and route data

Get item layout for a URL

Query

Result

Build site navigation

Query

Result

Build a page breadcrumb

Query

Result

Search and filtering

Search for items using CONTAINS

Query

Result

Search for items using EQ

Query

Result

Search for items using multiple operators

Query

Result

Get items filtered by multiple paths

Query

Result

Get items filtered by dates and numbers within a range

Query - date range

Result - date range

Query - number range

Result - number range

Paginate items in an item bucket

Query

Result

Site discovery and structure

Get the root item of a site

Query

Result

Get all site paths/pages

Query

Result

Site metadata and operations

Get information about all content sites

Query

Result

Get information about a specific content site

Query

Result

List redirect rules

Query

Result

Get error-handling pages

Query

Result

Get robot information

Query

Result

Get the sitemap of an SXA site

Query

Result

Get dictionary entries

Query

Result

SDK rendering helpers

Use item fields with Sitecore Headless SDKs

Query

Result
