The CXAObservable service

Current version: 10.3

The CXAObservable service provides the necessary support required for renderings to communicate and still remain loosely coupled, independent and unaware of other renderings in use. The basic concept is similar to the Observer design pattern except that it is not an Observable object that changes state but individual renderings that can trigger an event through the Observable, which other renderings are listening for. A rendering subscribes to events and when the event is emitted by another rendering, the subscriber is notified of the event through CXAObservable.

Internally, the CXAObservable service uses an implementation of CustomObservable to subscribe and emit using an instance of the observable. To support more complicated scenarios, you can swap out this implementation with other implementations such as RxJs Subject.

Communication between the renderings is managed during rendering initialization. For example, if any event is emitted before all the renderings are initialized (CXAApplication.IsInitialized = false), which could happen if a rendering emits an event during initialization, the event is held in the queue until all renderings have been initialized. The events in the queue are emitted in sequence. This helps prevent a missed event by the subscribers such as renderings that subscribe to an event after another rendering has emitted the event.

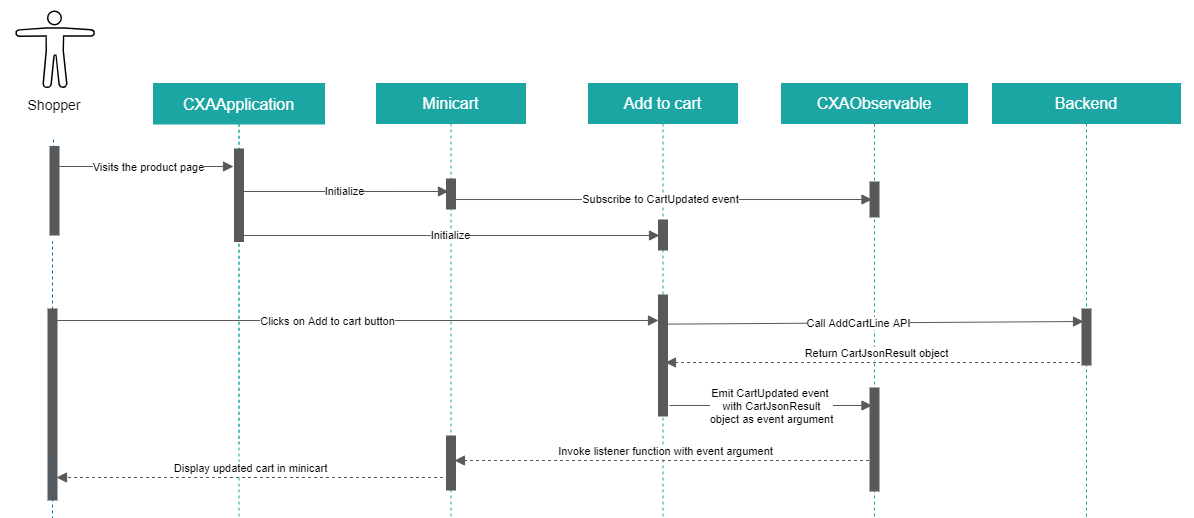

Sequence diagram illustrating the calls that occur

The CXAObservable service performs the following methods. It interacts with CXACartContext and uses various shared events.

Method	Description	Code
Subscribe to an event	A rendering subscribes to the event to perform a method. The message parameter used depends on what is passed in when the `emitEvent` function is called. The listener is called with the event argument. It handles the argument based on the type of object emitted for the event. This method returns the subscriber.	RequestResponse `CXAObservable.subscribeToEvent(CXAEvent.SendMessage, function (message) { // Do something with the message console.log(message); });` where: `CXAEvent.SendMessage` is the event name `function (message)` is the listener
Emit an event	Rendering emits an event, which can be a string or any type of object. Best practice is to have a consistent type for each event that can be handled by all listeners.	RequestResponse `CXAObservable.emitEvent(CXAEvent.SendMessage, "This parameter can be a string"); CXAObservable.emitEvent(CXAEvent.SendMessage, { message: "This parameter can be any object" });`
Subscribe to a product	Rendering subscribes to all events associated with a specific product ID in order to perform a method. The listener is called with two arguments: The event name The event argument Returns the subscriber.	RequestResponse `CXAObservable.subcribeToProduct(productid,ProductEventHandler);` where: `ProductEventHandler` is the listener.
Subscribe to a product event	Rendering subscribes to the event associated with the specific product ID to perform a method. The listener is called with the event argument.	RequestResponse `CXAObservable.subcribeToProduct(productId, ProductEventHandler);` where: `ProductEventHandler` is the listener.
Unsubscribe from an event	Rendering unsubscribes from an event.	RequestResponse `CXAObservable.unsubscribeFromEvent(subscriber);` where: `subscriber` is the object returned when `subscribeToEvent/subscribeToProduct/subscribeToProductEvent` is called.

SXA Storefront uses the following shared events.

Event	Description	Methods
`CXAEvent.ClearMessage`	Requests the Message Summary rendering to remove displayed messages.	Listening Message Summary Emitting Add to Cart Checkout Billing Checkout Review Cart Lines Product Bundle Product Variant
`CXAEvent.SendMessage`	Requests the Message Summary rendering to display the message. Event argument: RequestResponse `{ type: CXAMessageType, message: String }` `CXAMessageType` enum: Info Error Warning	Listening Message Summary Emitting Product Bundle Product Inventory Product Variant
`CXAEvent.CartUpdated`	Emits the event when the latest cart is received. This event is emitted by the CXACartContext whenever the object received by the context is of type CartJsonResult.	Listening Free Gift Selections Cart Lines Minicart Cart Promotion Cart Total Emitting Free Gift Selection Cart Lines Minicart CXACartContext
`CXAEvent.SetPrice`	Requests the Product Price rendering to display the price of the current product variant or product bundle selection. Event argument: RequestResponse `{ productId: String, listPrice: Number, adjustedPrice: Number, isOnSale: Boolean, savingsMessage: String }`	Listening Product Price Emitting Product Bundle Product Variant
`CXAEvent.SelectedProduct`	Emits an event when a product variant is selected. RequestResponse `Event argument: { CurrentCatalogName: String, CurrentProductId: String, CurrentVariantId: String }`	Listening Add to Cart Product Inventory Emitting Product Variant
`CXAEvent.SelectedBundleProduct`	Emits an event when a product bundle is selected. Event argument: RequestResponse `{ bundleSelection: BundleSelection }`	Listening Add to Cart Product Inventory Emitting Product Bundle
`CXAEvent.SelectedProductValid`	Emits the event to indicate that the current product selection is valid so that the Add to Cart rendering can enable the Add to Cart button.	Listening Add to Cart Emitting Product Bundle Product Inventory Product Variant
`CXAEvent.SelectedProductInvalid`	Emits the event to indicate that the current product selection is valid so that the Add to Cart rendering can disable the Add to Cart button.	Listening Add to Cart Emitting Product Bundle Product Inventory Product Variant
`CXAEvent.BundleStockStatusValid`	Emits the event to indicate that the current bundle selection’s stock status is valid so that the Product Bundle can then request for the Bundle Selection’s price. Event argument: RequestResponse `{ productId: String }`	Listening Product Bundle Emitting Product Inventory
`CXAEvent.GetStockInfo`	Product Inventory rendering emits this event when the response is received from the API endpoint `Catalog/GetCurrentProductStockInfo`. Event argument: RequestResponse `{ productId: String, stockInfos: Array }`	Listening Product Bundle Emitting Product Inventory
`CXAEvent.DiscountApplied`	The CXACartContext service emits the event after calling to the API endpoint `Cart/ApplyDiscount`.	Listening Cart Lines Cart Promotion Cart Total Emitting CXACartContext
`CXAEvent.DiscountRemoved`	The CXACartContext service emits the event after calling to the API endpoint `Cart/RemoveDiscount`.	Listening Cart Lines Cart Promotion Cart Total Emitting CXACartContext
