Crop examples
When you create a custom download for asset renditions, you define additional options, including whether to crop the rendition. The following examples illustrate how you can use each of the available crop options. In the Custom download dialog, you can see a real-time preview of the expected result of the crop before you apply it to your asset.
Crop options are only available for Image formats. They are not available for Vector formats or for file types associated with proprietary software (such as Photoshop), although you can still change the dimensions of these files by amending their width or height. The aspect ratio, however, stays locked. For a complete list of Image formats, see Asset types.
The dimensions of the new rendition must be smaller than the dimensions of the original image.
Don't crop
Don't crop lets you resize the rendition but locks the aspect ratio. When you change the height value, the width changes automatically, and vice versa.
The following example changes the width and height of an image asset but does not crop the image:
|
Dimensions |
Rendition |
|---|---|
|
Original - Output dimensions 6000 x 4000 px |
|
|
Don't crop - Output dimensions 3000 x 2000 px |
|
Crop to center
Crop to center provides a rendition that can be resized with the aspect ratio unlocked. This option positions the crop box in the center of the image. You must select either the custom width and height, or a preset value.
The following example crops the image using the Crop to center option:
|
Dimensions |
Rendition |
|---|---|
|
Original - Output dimensions 3088 x 4624 px |
|
|
Crop to center - Output dimensions 1000 x 2000 px |
|
Smart crop
Smart crop examines the content of an image and automatically examines the image for edges, skin tones, and areas of saturated color, and crops it based on what are assumed to be the most important features. The width and height values specify the dimensions of the cropped area.
The following example illustrates the Smart crop option:
|
Dimensions |
Rendition |
|---|---|
|
Original - Output dimensions 5000 x 7502 px |
|
|
Smart crop - Output dimensions 1000 x 600 px |
|
Manual crop
Manual crop lets you select the aspect ratio from a list of preset values, resize the image using preferred width and height values, or manually adjust the cropping box in the preview pane.

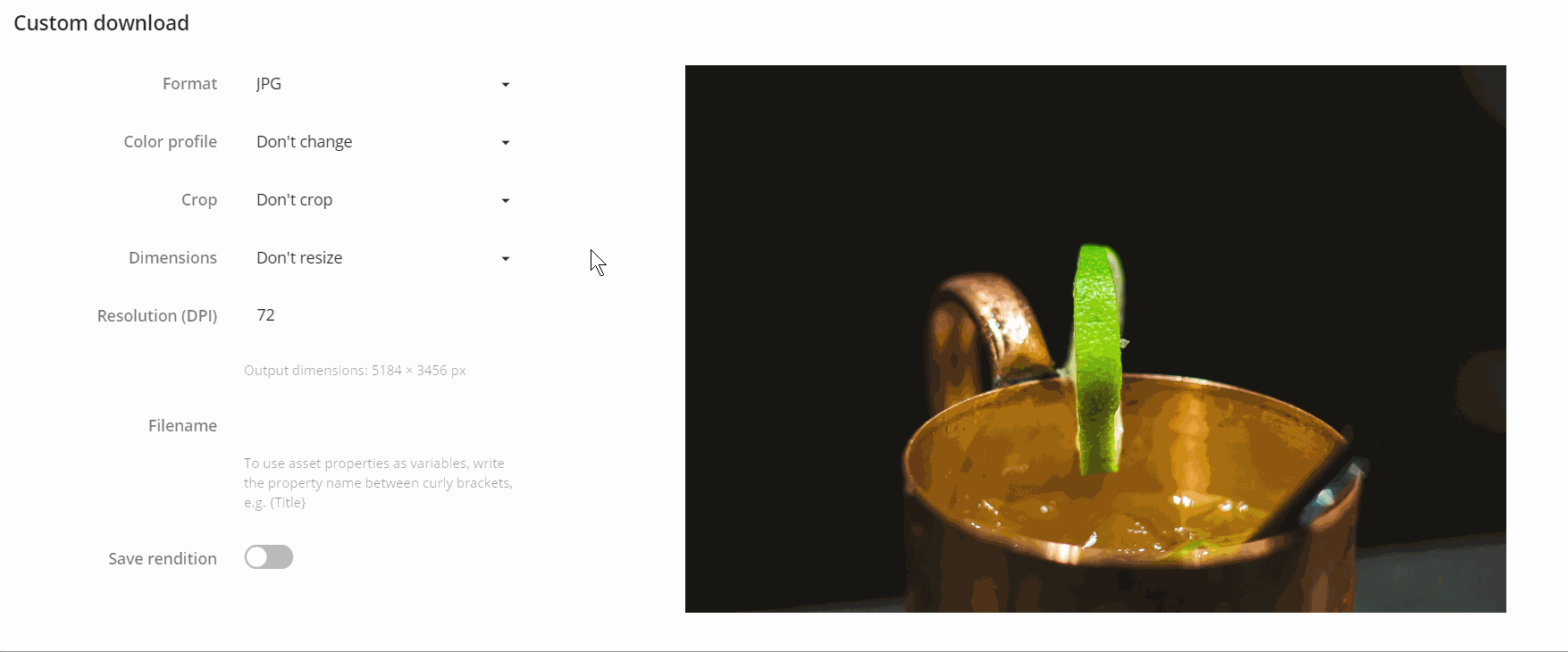

The following example illustrates the Manual crop option using the selection tool on the preview:

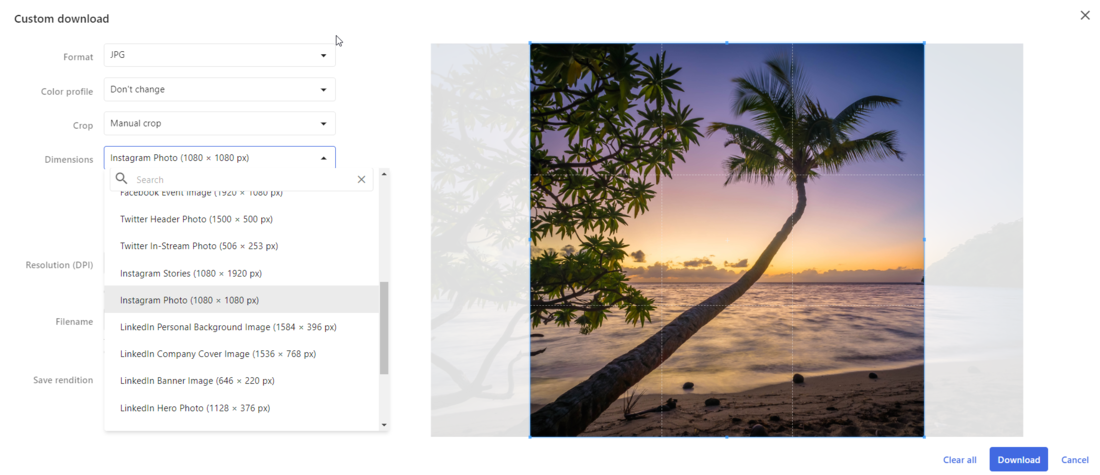

You can also apply specific preset dimensions. The following example illustrates the Manual crop option using Instagram photo:
If you want a custom width and height, the image is cropped to fit the specified aspect ratio, preserving as much of the original area as possible within those proportions. It is then resized to match the specified dimensions.

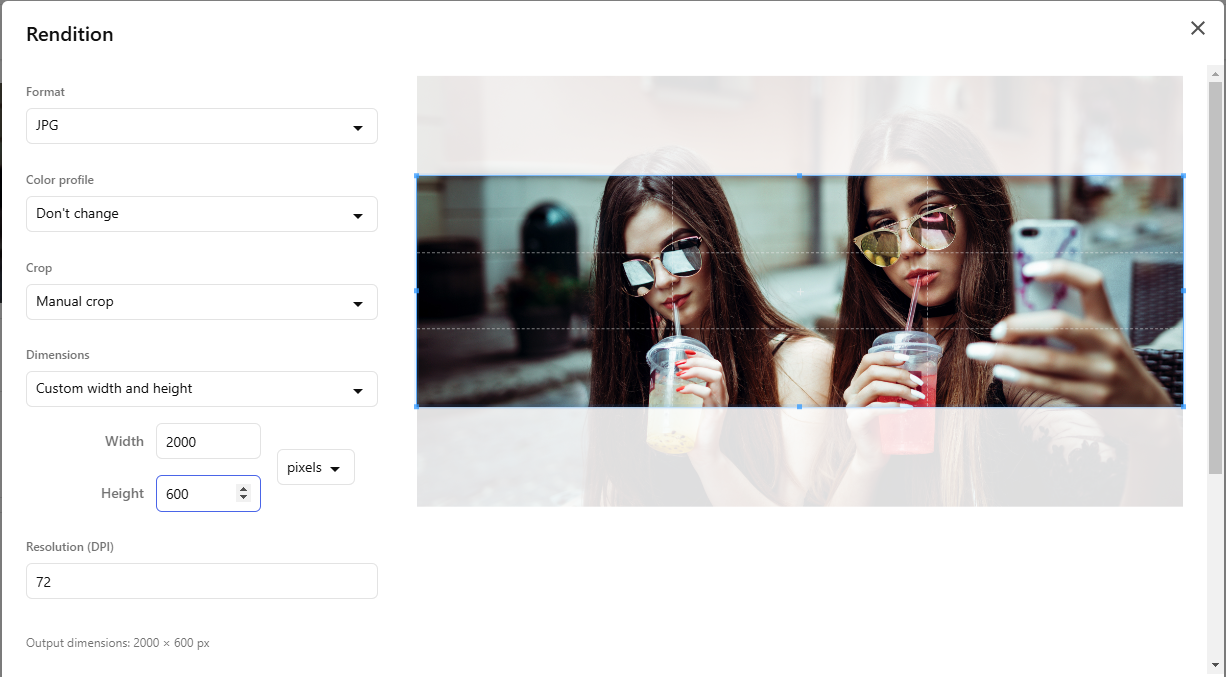

In this third example, the image is sized at 6000 × 3375 px. If you set the dimensions to 2000 × 600, the tool selects an area that matches the specified aspect ratio, prioritizing proportions over exact size. After saving, the image is resized to the specified dimensions of 2000 × 600. You can move or resize the selection area in the preview pane, but the proportions remain locked to those specified values.
Considerations concerning manual cropping

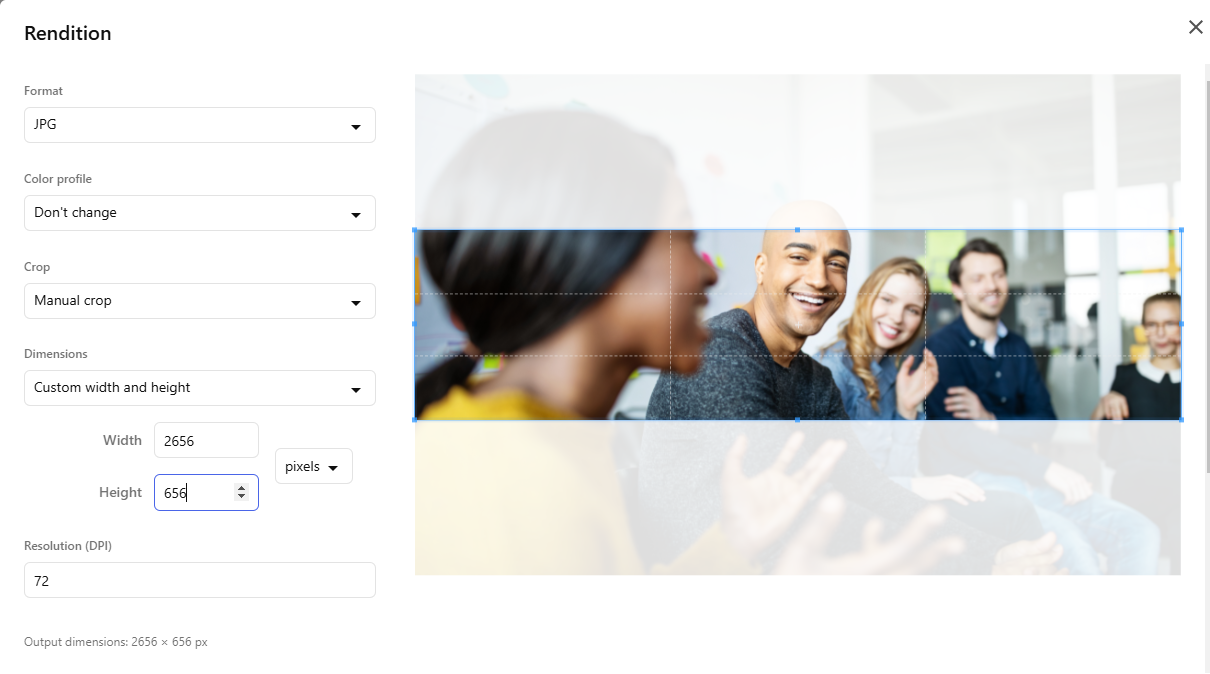

In a different example, you have an image with original dimensions of 6663 × 4361 px and want to crop it to 2656 × 656 px. The cropping area is adjusted based on the specified aspect ratio. When the image is resized, the final dimensions are 2655 × 656 px, resulting in a 1-pixel discrepancy. This happens because the tool scales both width and height proportionally to preserve the aspect ratio, rounding to the nearest whole number to maintain pixel accuracy.
