OneDrive checkouts configurations

The OneDrive integration includes a dedicated Checkouts page and Checkout operation, which can be included on Sitecore Content Hub pages (for example, Assets page).

Showing the Checkouts page

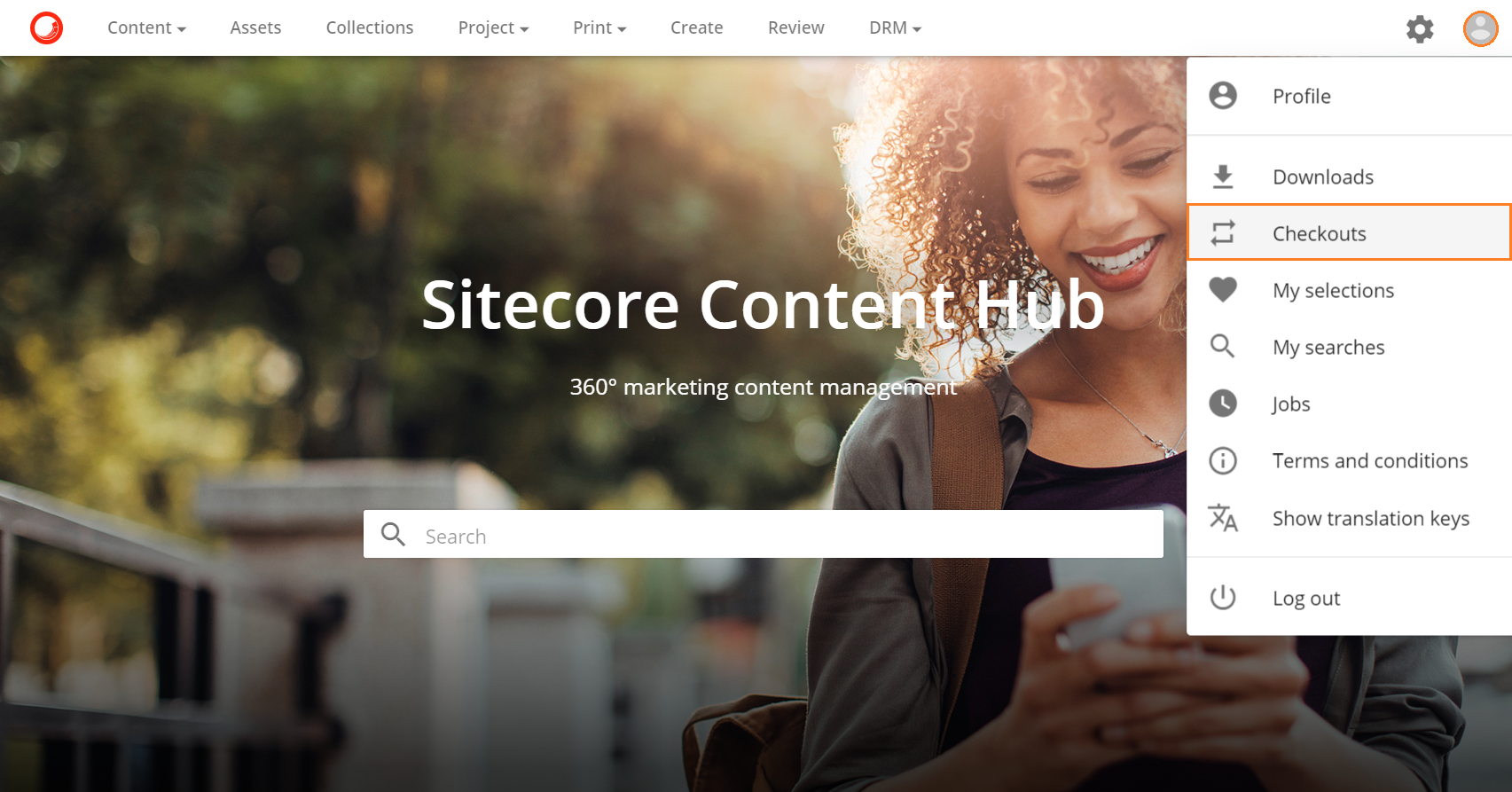

You can display the Checkouts page in the User pages menu. The User pages menu is available under the Profile icon avatar icon:

How to access the Checkouts page from the menu available from your avatar.

You can enable the visibility of this page by navigating to the Manage page, which is available via the cog icon icon.

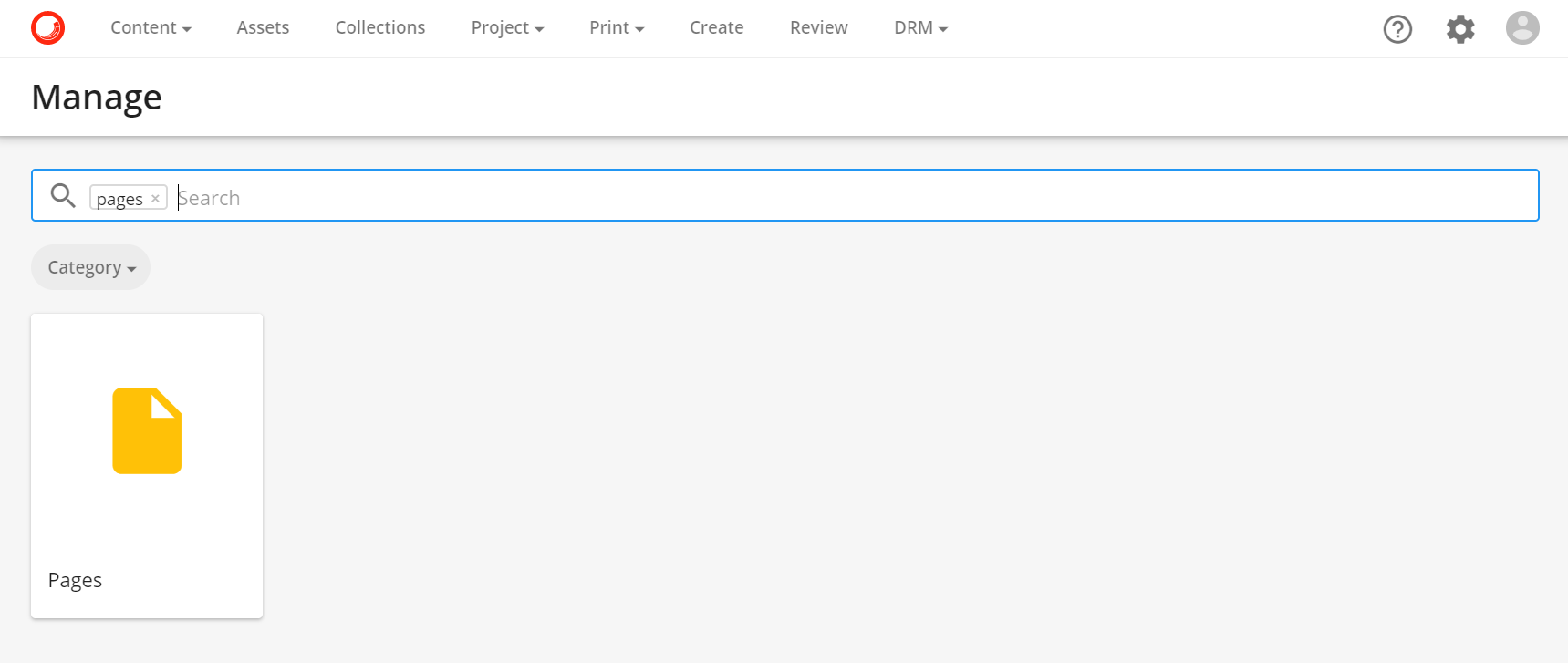

Select the Pages option on the Manage page:

Manage page showing the Pages tile

In the pages manager, use the search box to find and select the Checkouts page:

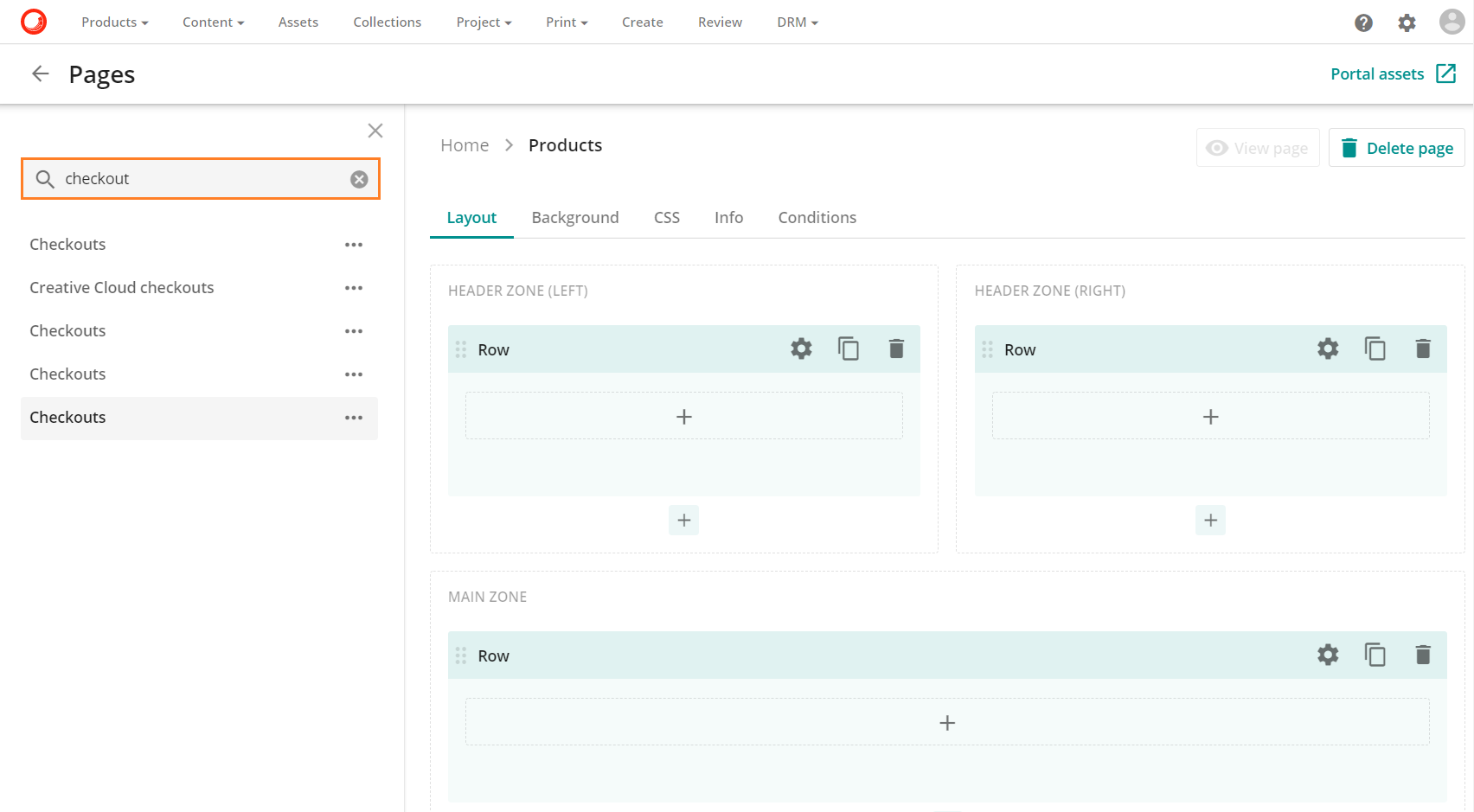

Checkouts page

Make sure the Checkouts page you selected has the path of Home User Checkouts. The path is shown at the top of the page.

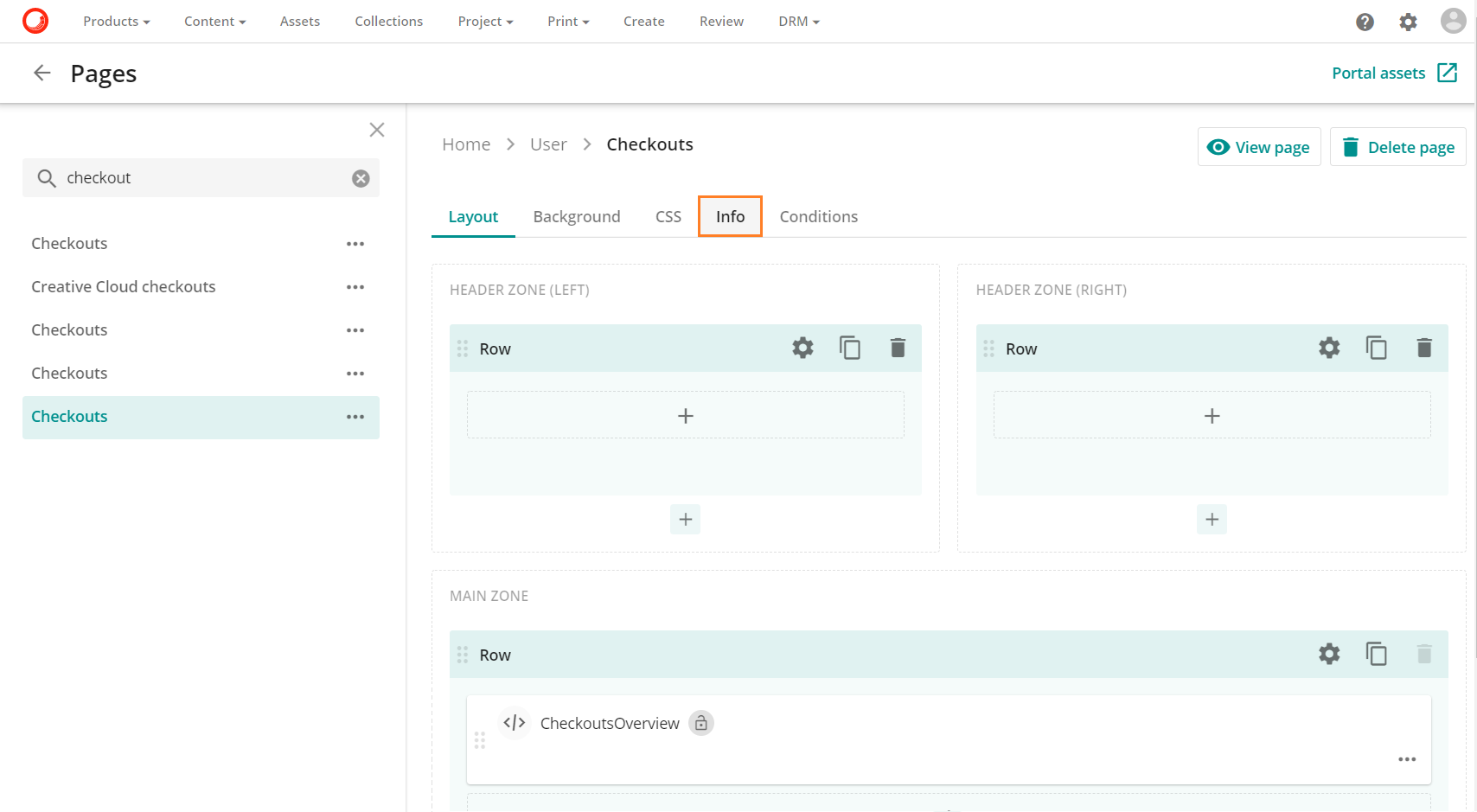

Click the Info tab on the Checkouts page:

Page Info tab

On the Info tab, click the edit icon Edit icon:

Edit icon on the Info tab highlighted

On the editable version of the page, toggle the Appears in menu option to active:

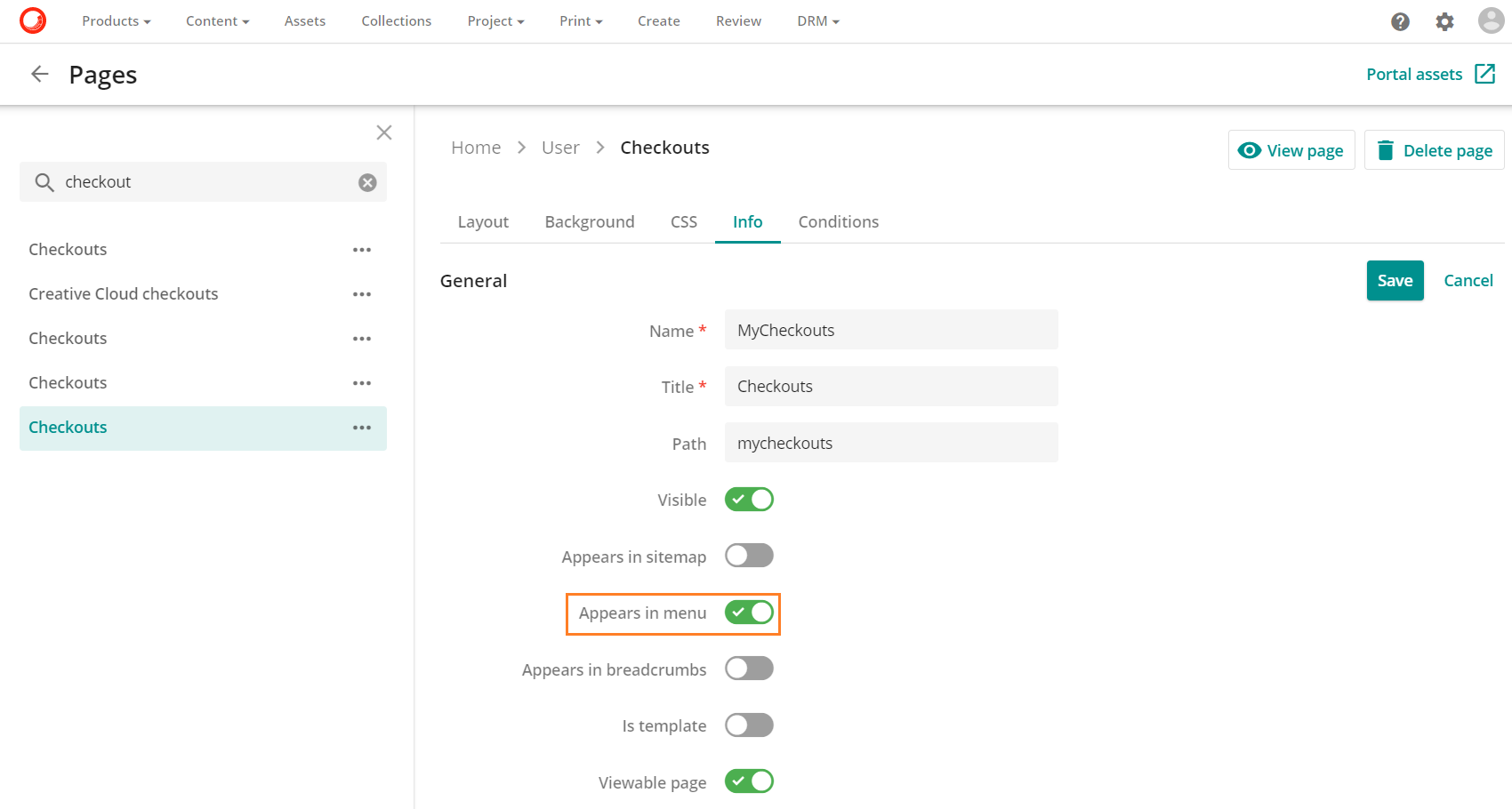

Appears in menu switch on the Info tab

Click Save before leaving the page:

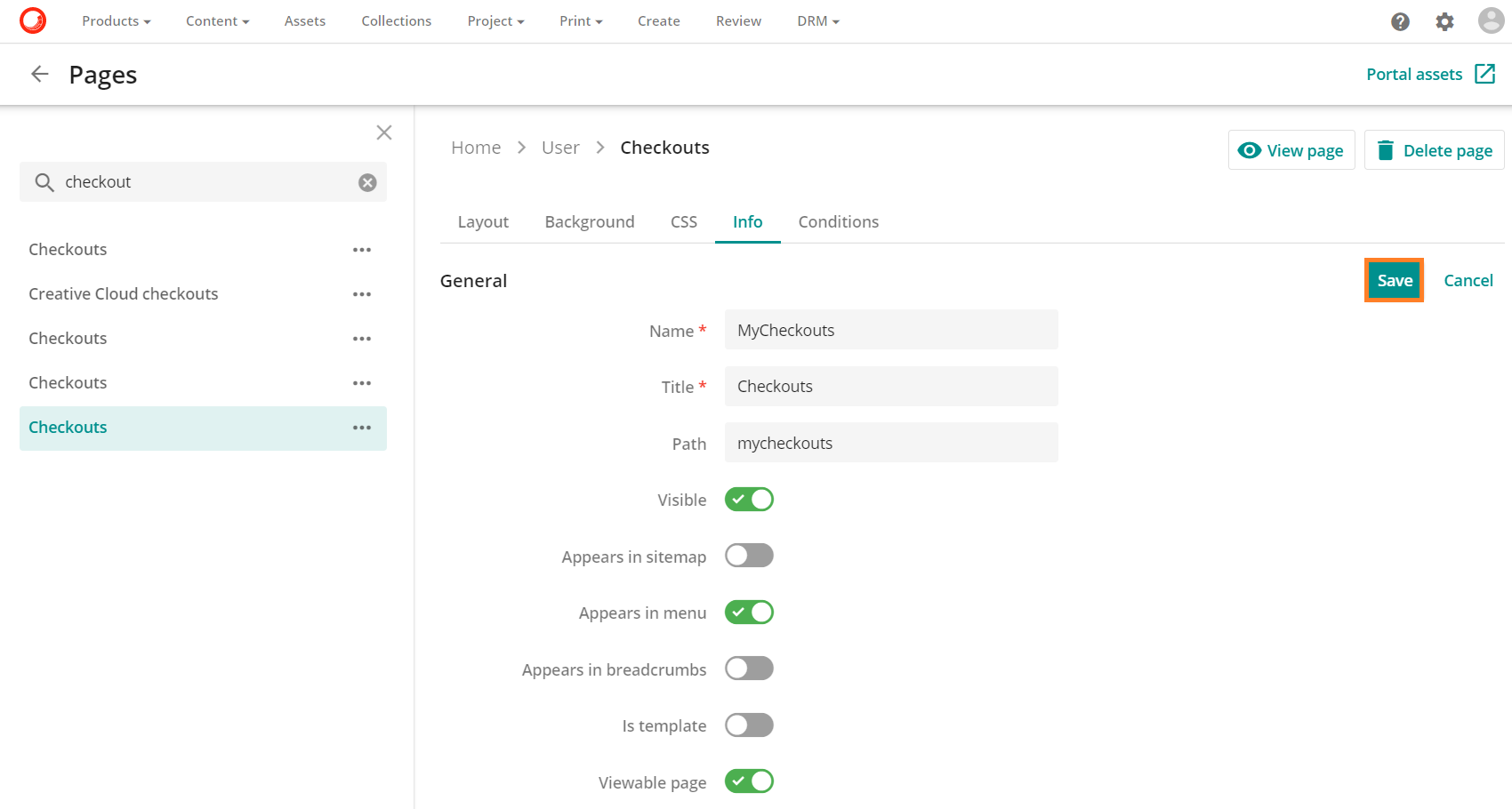

Save button on the Info page highlighted

As the Checkouts page is a subpage of the User page, this is the menu under which the page will be displayed. You can check if the page is made available under the User pages menu by clicking on the Profile icon.

Enabling the checkout operation

You can display the Checkout operation on Content Hub pages (for example, the Assets page):

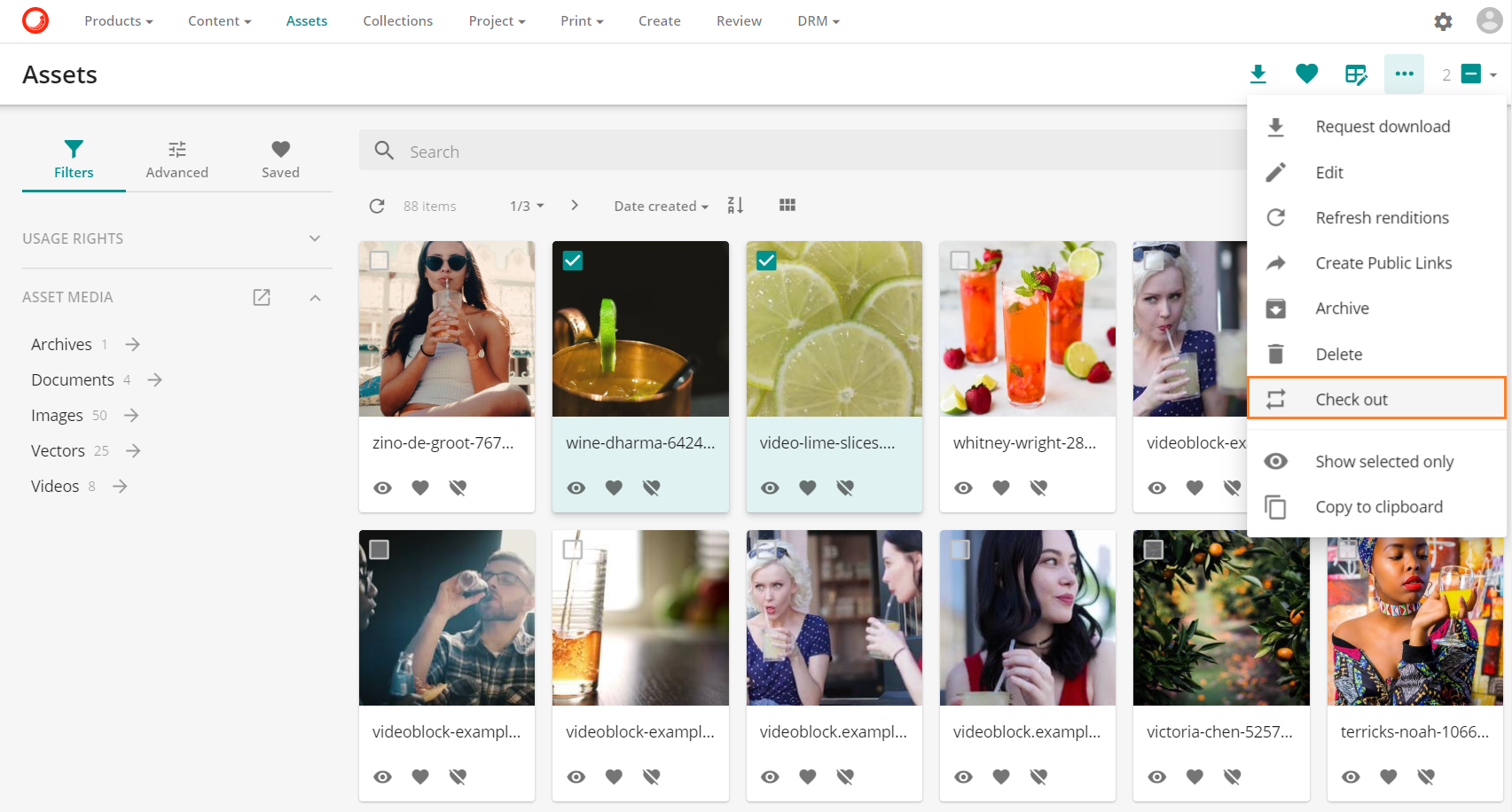

asset page with checkout operation highlighted

You can enable the visibility of this page by navigating to the Manage page, which is available via the cog icon icon.

Select the Pages option on the Manage page:

pages searched for on manage page

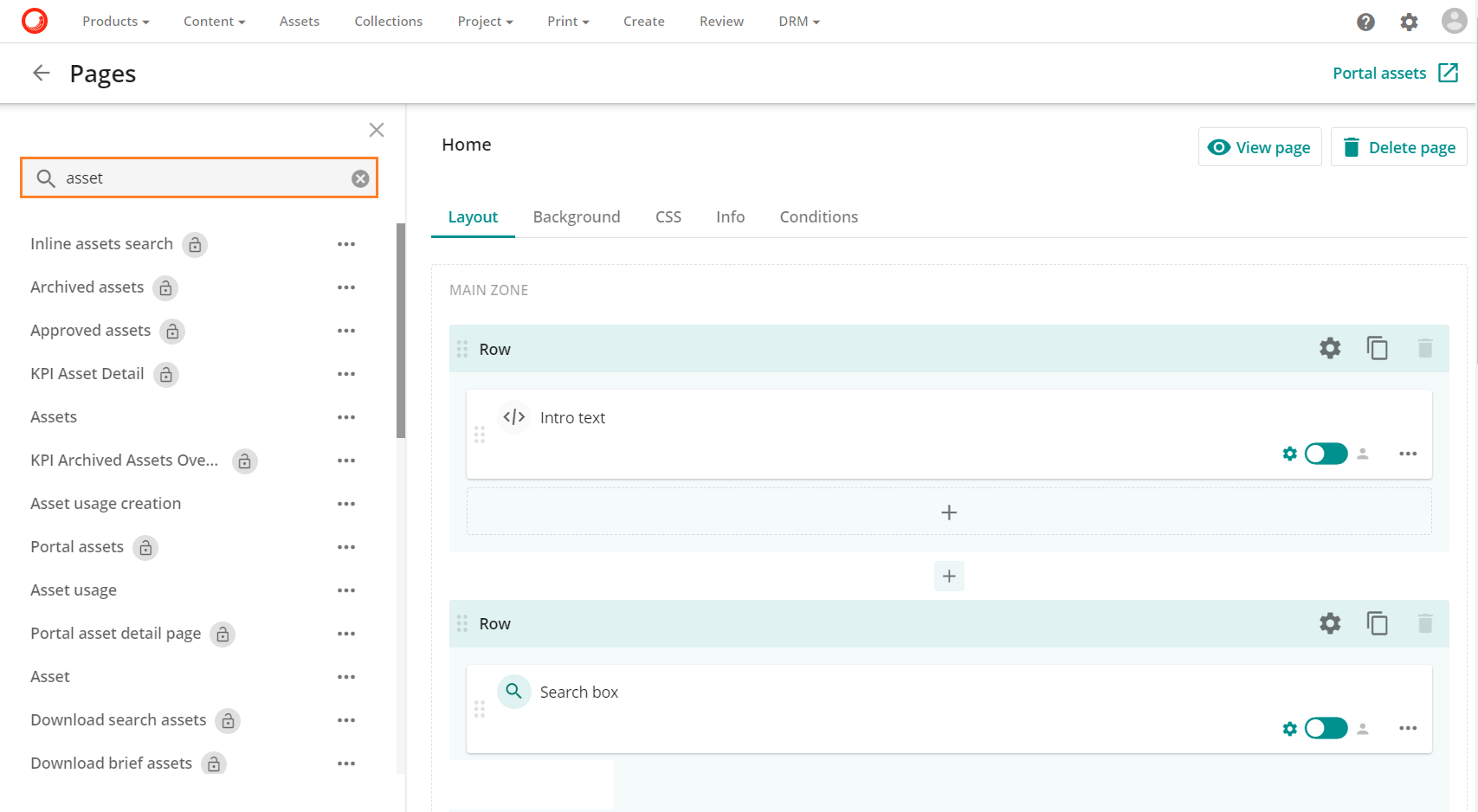

In the pages manager, use the search box to find and select the Assets page:

Make sure the Assets page you selected has the path of Home Assets. The path is shown at the top of the page.

On the Assets page, navigate to the selection component:

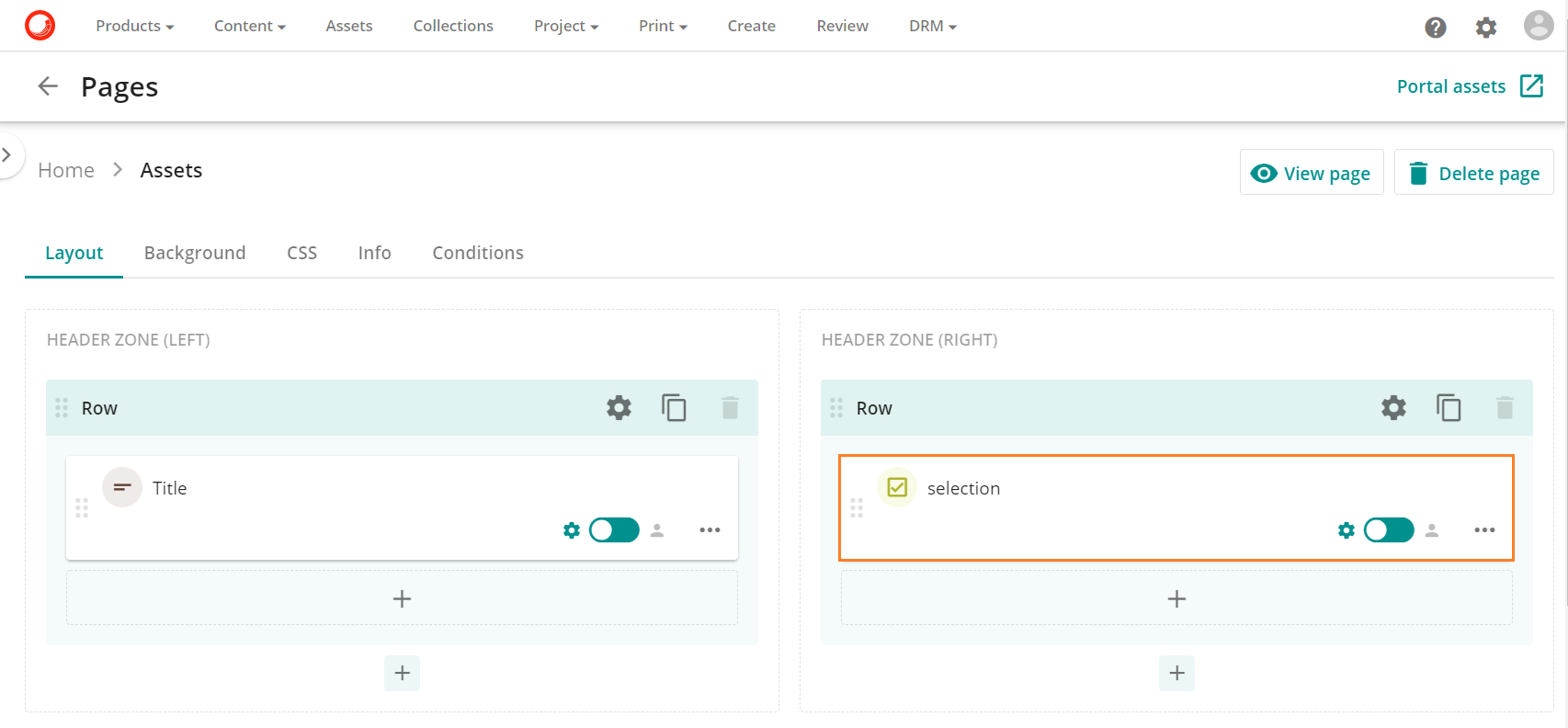

duplicate option on selection component

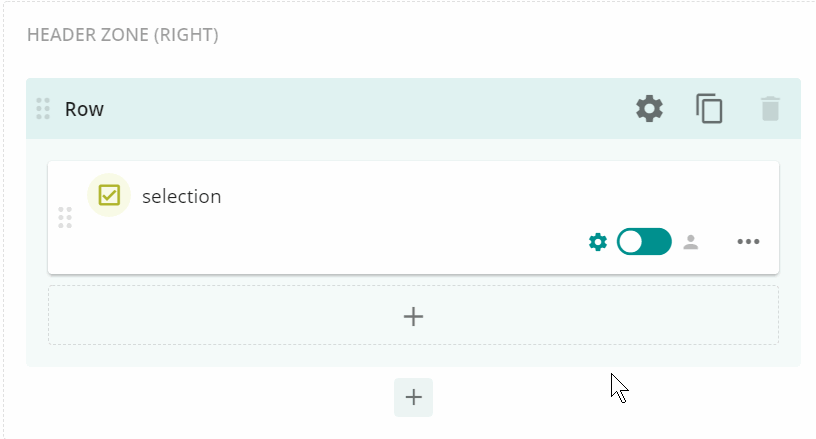

Toggle the selection component from System-settings-enabled to Custom-settings-enabled:

toggle the selection component

On the selection component, you can now select the Edit option:

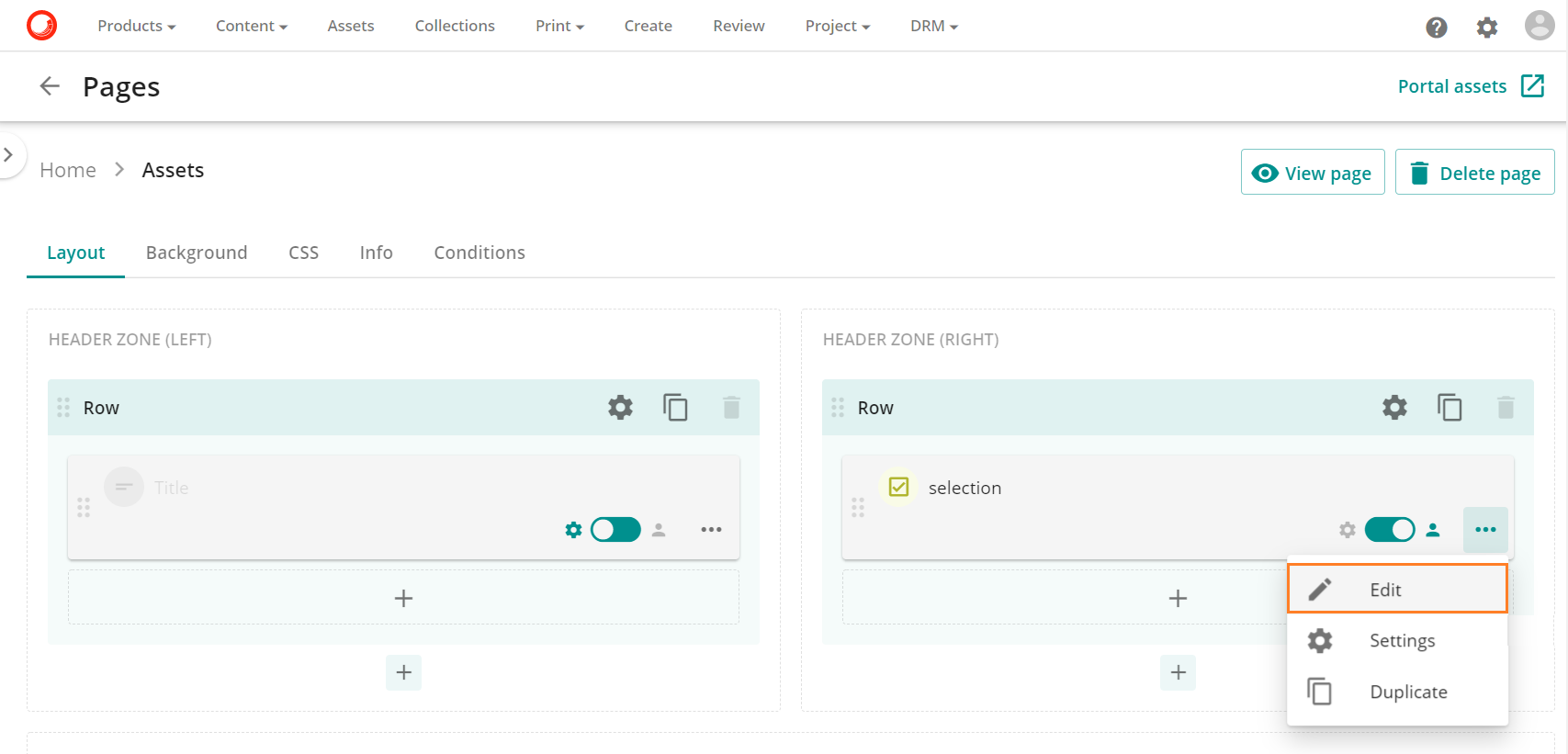

settings on selection option:

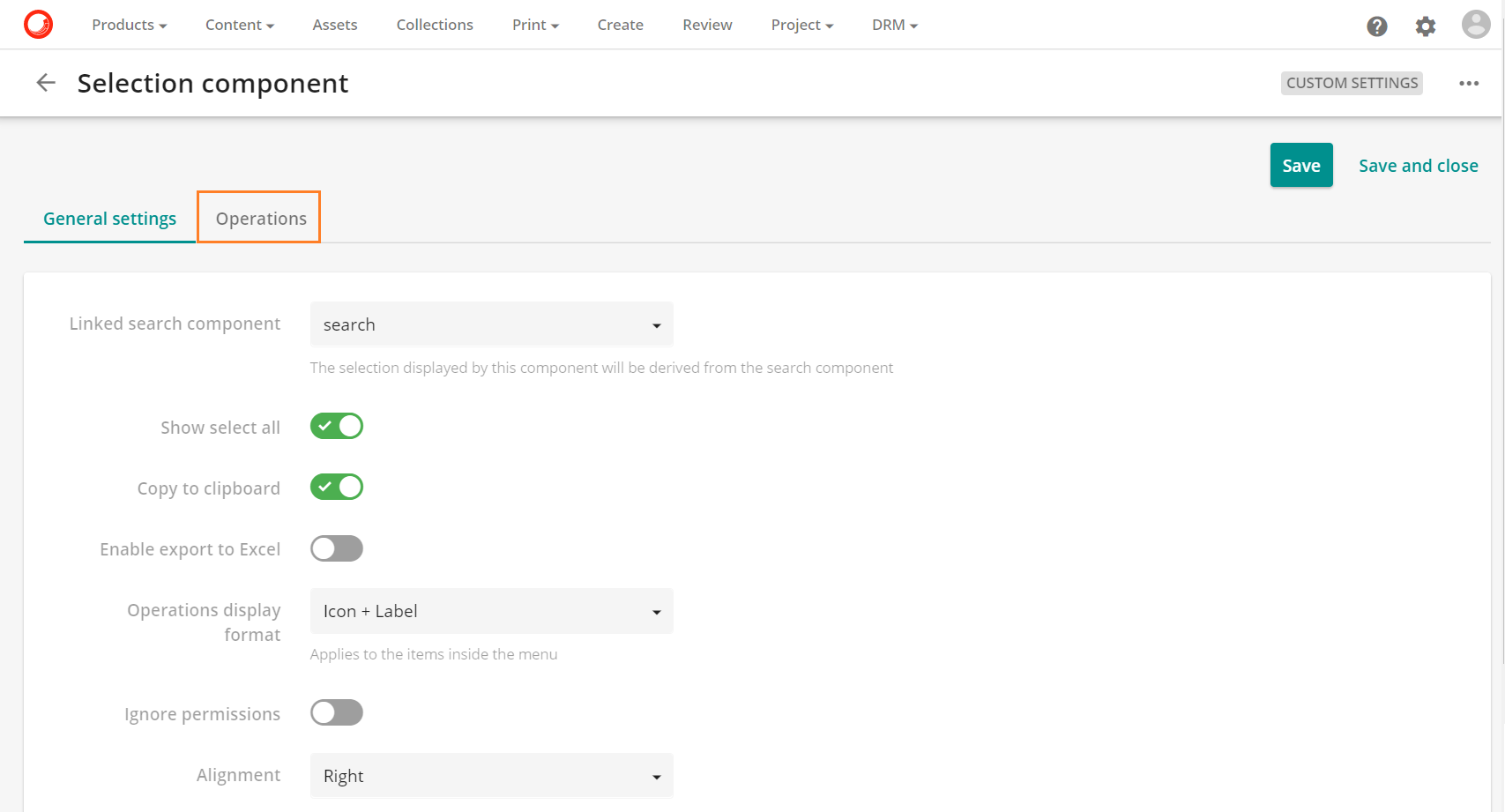

On the details page of the Selection component, select the Operations tab:

operations tab highlighted on selection details

Click the Add operation button:

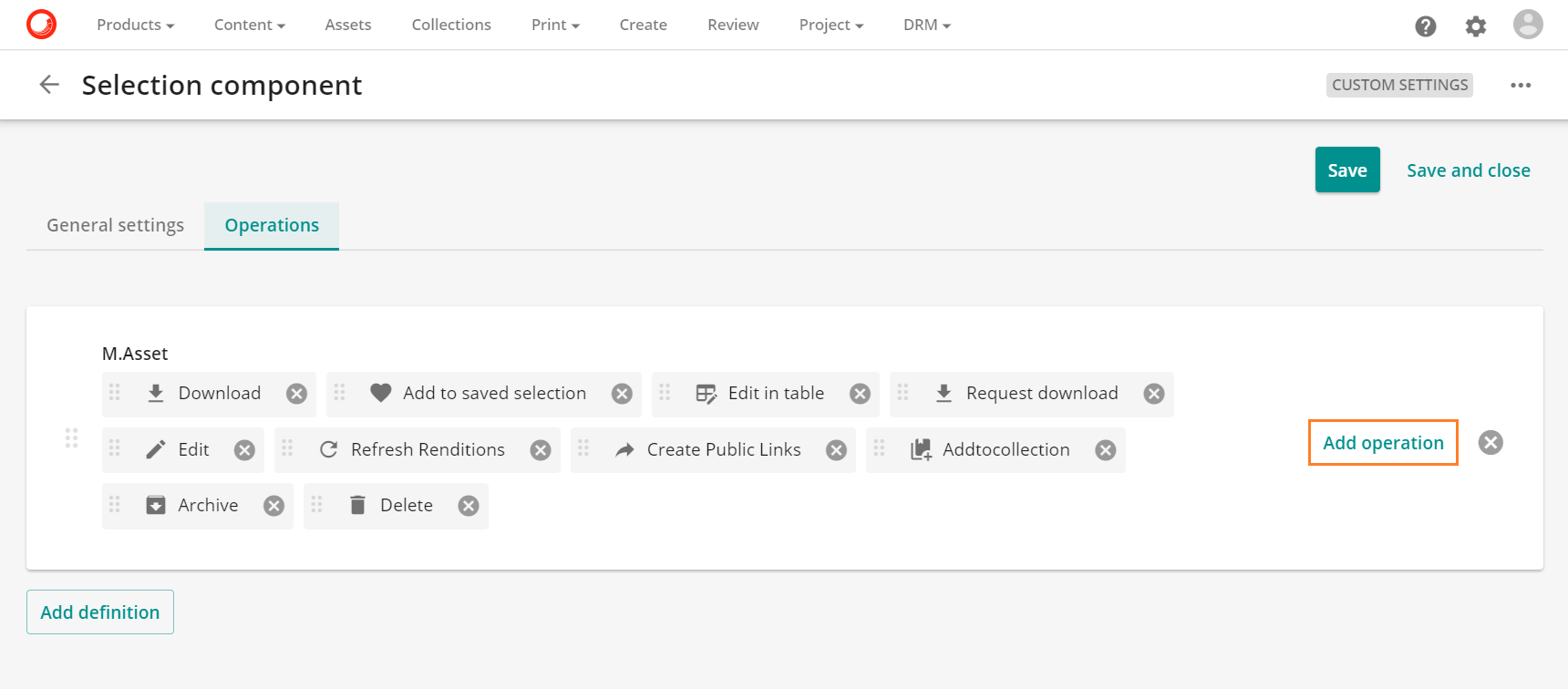

operation button highlighted on operations tab

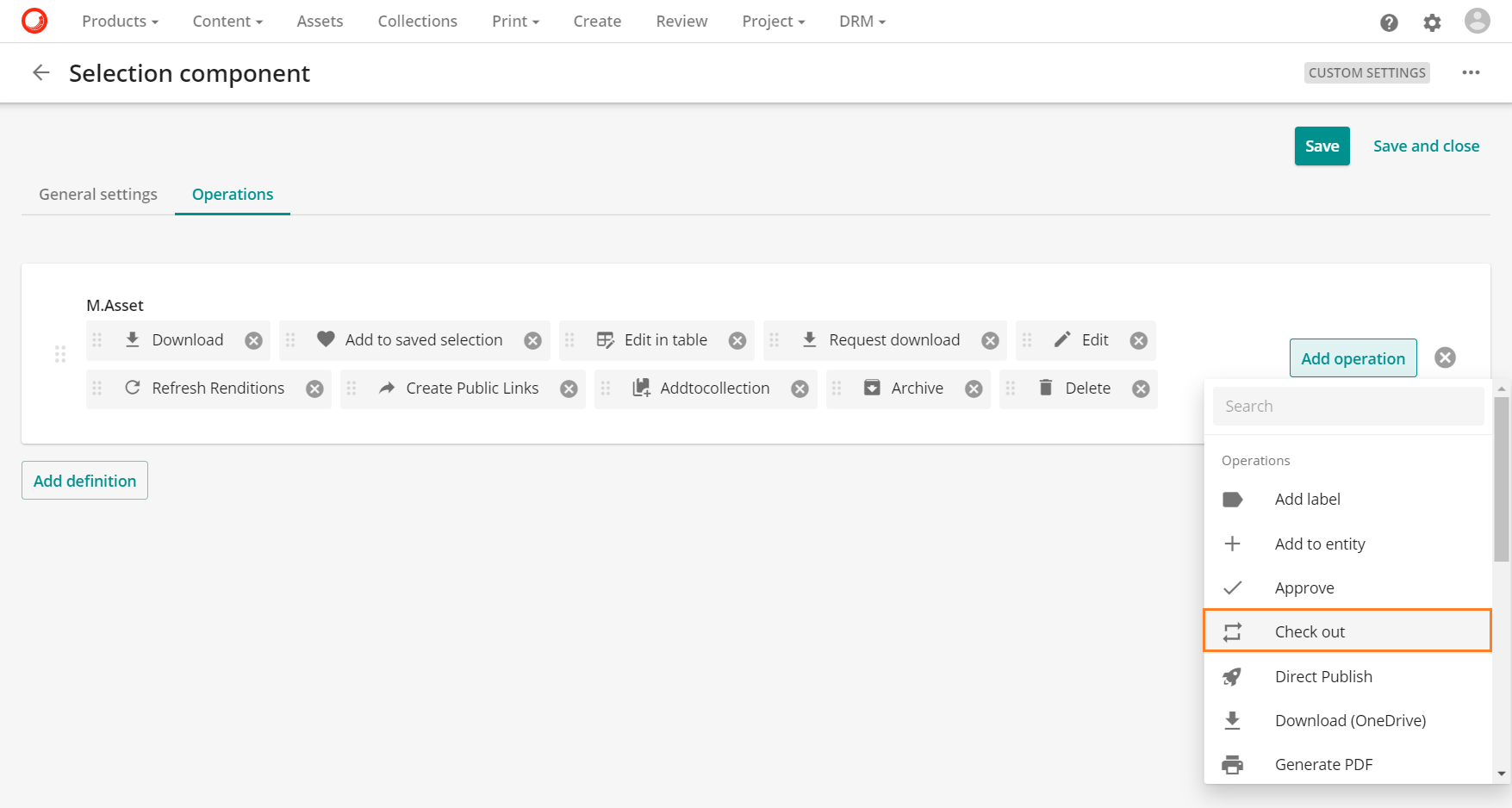

The available operations are displayed. Search for and select the Checkout operation:

operations listed and highlighted on selection component:

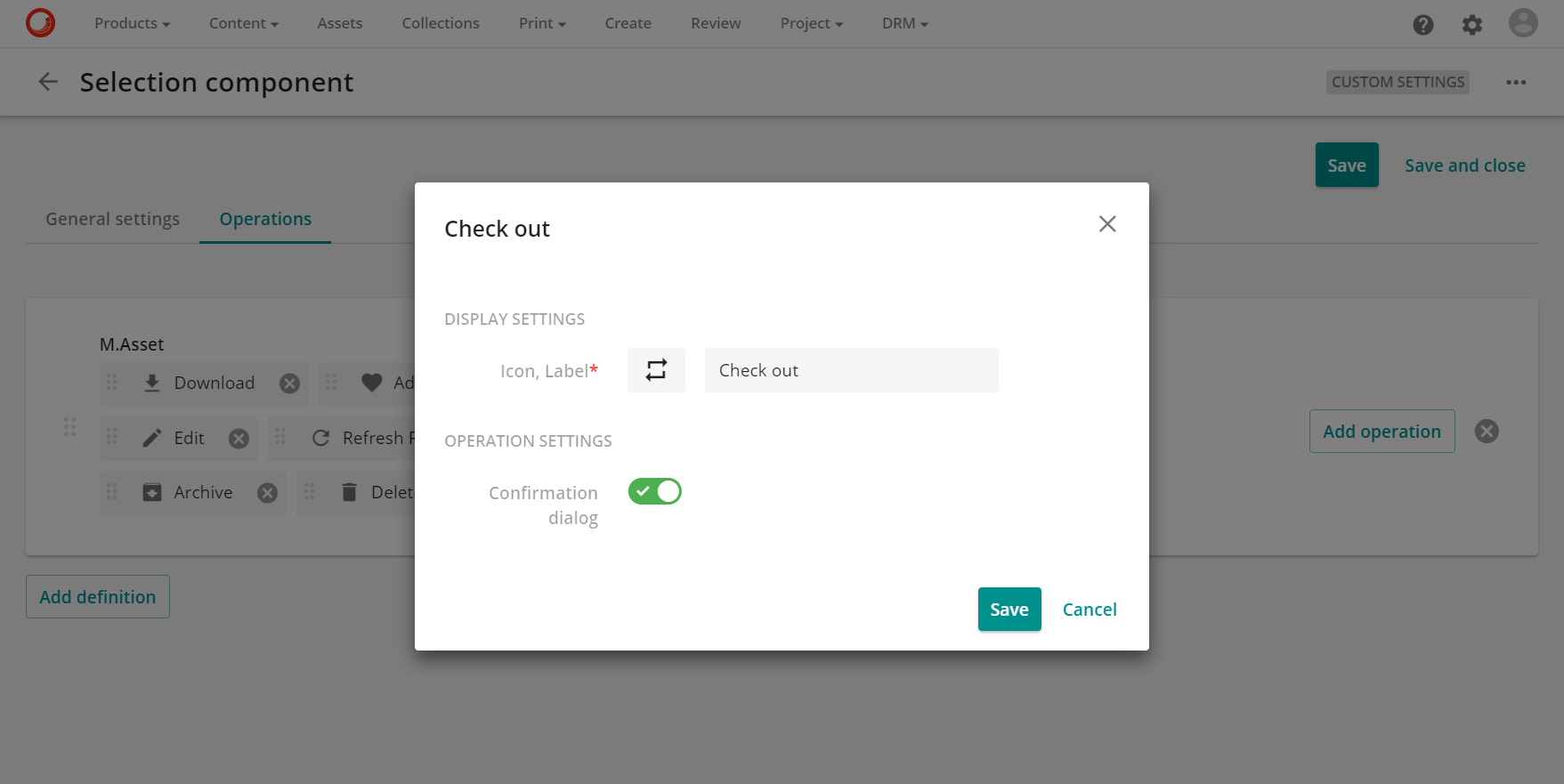

The Checkout modal opens, which allows you to chose the Icon, Label, and whether the checkout requires a confirmation. Once you have made your choices, click Save:

checkout modal opened

The Checkout operation is now included on the Selection component as the last operation in the list. The Checkout operation can be moved by dragging the operation into a new position via the check out icon option. Click on Save and close to finalize the changes.

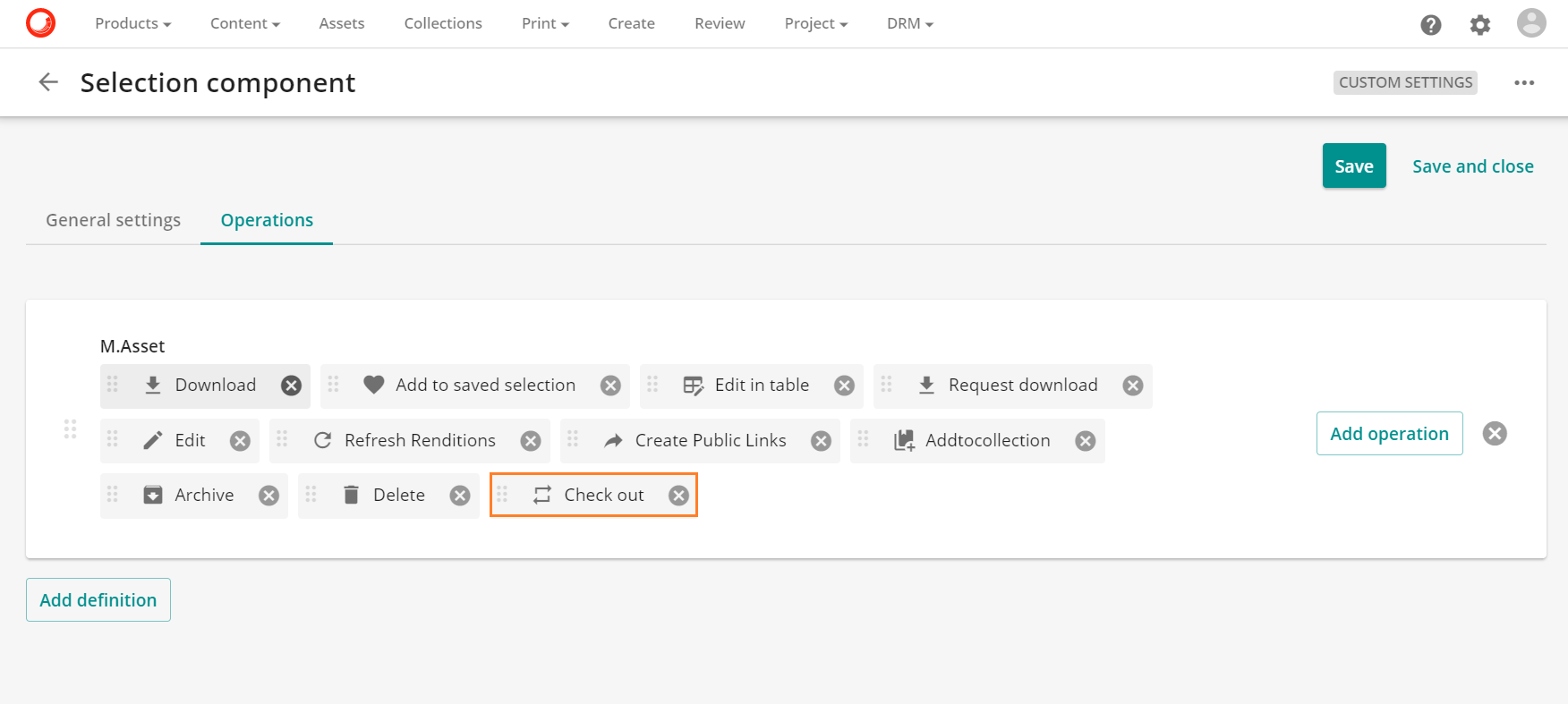

checkout operation included on selection component

You can check if the operation has been correctly added by navigating to the Assets page and checking the operations of the selection menu.
