Add the Product Gallery tab

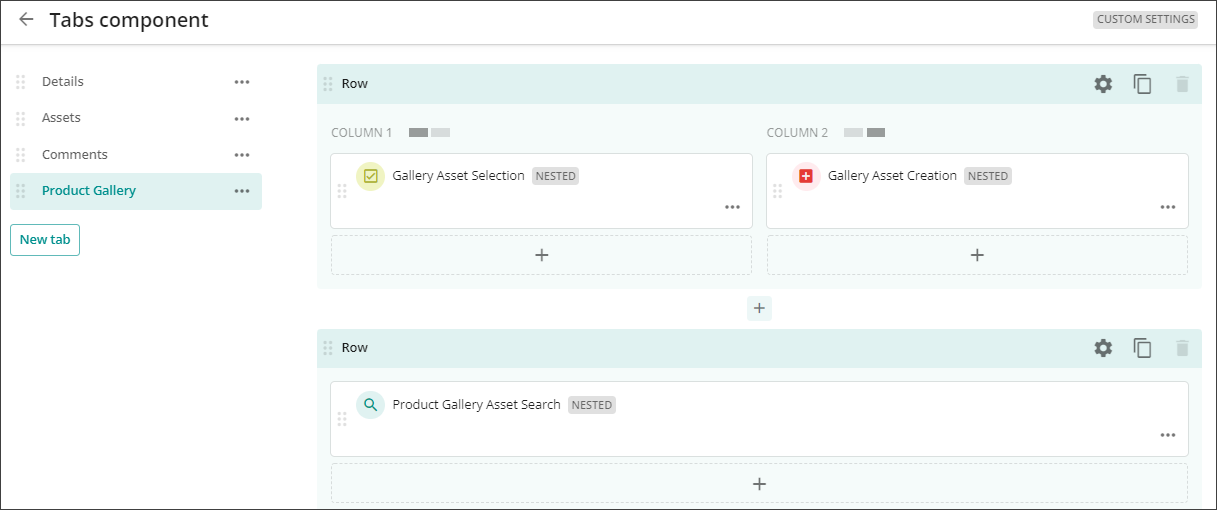

Images are retrieved from Sitecore Content Hub for display in the D365 Product Gallery using a public link to a specific rendition. To achieve this, you need to add a Product Gallery tab to the product details page and create the Gallery Asset Selection component, the Gallery Asset Creation component, and the Product Gallery Asset Search component as shown in the following image.

To add the Product Gallery tab to the product details page:
-
On the menu bar, click Manage
.
-
On the Manage page, click Pages and, in the search box, type Product details and press Enter.
-
In the left pane, click Product details.
-
On the Product details page, in the MAIN ZONE, click the Tabs component.
-
On the Tabs component page, in the left pane, click New tab.
-
In the New tab dialog, in the Name field, type Product Gallery.
-
Click the Visible switch to make it active if it is not already, and click Create.
-
With the Product Gallery tab selected, click Row
to add a new row.
-
In the top row, click Row settings

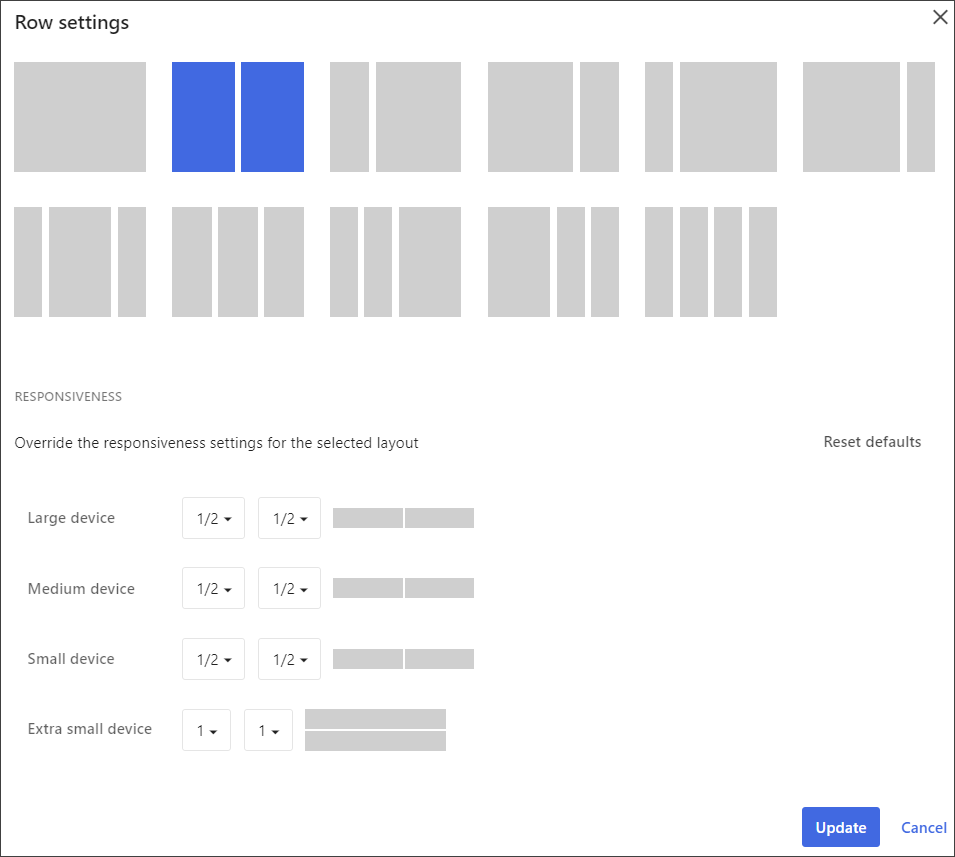

and, in the Row settings dialog, click the Columns tab, select the two column option, specify the settings shown in the following image, and then click Update.
To create the Product Gallery Asset Search component:
-
On the Tabs component page, under COLUMN 2, click Add component
, and, in the Add component dialog box, select the Search component.
-
In the Add component dialog box, in the Title field, type Product Gallery Asset Search, click the Visible switch to make it active, and click Add.
-
Click the Search component you just created.
-
On the Filters tab, on the System tab, click Add filter
and do the following:
-
Select the Simple option.
-
Select the Definition filter type.
-
From the Definition list, select Asset (M.Asset).
-
-
Click Save.
-
Click Add filter
again and do the following::
-
Select the Simple option.
-
Select the Relation filter type.
-
From the Definition list, select Status (M.Final.LifeCycle.Status).
-
From the Field list, select Assets (FinalLifeCycleStatusToAsset).
-
For the Operator list, select Equals.
-
-
Click + Add and, in the Status dialog box, select the Approved check box, and click Select.
-
Click Save. With this defined search component, the search page displays only approved assets from the standard repository.
To add a fixed filter to the Product Gallery Asset Search component:
-
On the Search component page, on the Filters tab, click the Fixed tab.
-
Click Add fixed filter
again and do the following:
-
From the Input type list, select Page entity.
-
From the Filter type list, select Relation.
-
From the Filter list, select Assets(ProductToGalleryAsset).
-
Choose the Parent option.
-
-
Click Save.
-
On the Search component page, click the Functionality tab, and click the following switches to make them active (On):
-
Full-Text
-
Facets
-
Manual relation sort
-
Selection
-
Refresh button
-
-
Click Save.
To update facets for the Product Gallery Asset Search component:
-
On the Search component page, click the Facets tab.
-
On the Standard tab, click Add Facet
.
-
Define in the following settings to add a product color facet:
-
Next to Facet type, select the Taxonomy item option.
-
From the Taxonomy item list, select Localization (M.Localization).
-
From the Label type list, choose Default.
-
From the Sorting list, choose Count.
-
From the Direction list, choose Descending.
-
Next to Position, select the Top Horizontal option.
-
-
Click Save.
-
Repeat steps 2 to 4 to create three additional facets using the following taxonomy items:
-
Asset type (M.AssetType)
-
Asset media (M.AssetMedia)
-
Restricted (M.DRM.Restricted)
-
-
Click Save.
To update the selection and output:
-
Click the Selection tab.
-
Next to Selection pool, choose the Page-specific pool option.
-
Click the Output tab.
-
In the left pane, click the List switch to make it active.
-
With List selected in the left pane, from the Image list, select Thumbnail (if available).
-
From the Icon and color list, select From taxonomy relation.
-
From the Relation list, select Asset media (AssetMediaToAsset).
-
In the Fields section, click Add
and define the following:
-
Next to Type, select the Property option.
-
From the Field list, select Title(Title).
-
Accept the remaining default settings.
-
-
Click Save.
To add indicators to the Product Gallery Asset Search component:
-
On the Search component page, on the Output tab, in the Indicators section, click Add Indicator.
-
From the list, select Duplicates exist.
-
In the Duplicates exist dialog box, accept the default values, and click Save.
-
Repeat steps 1 to 3 to add a Public links exist indicator.
-
In the left pane of the Search component page, click the Inline preview switch to make it active.
-
With Inline preview selected in the left pane, do the following:
-
From the Image list, select Thumbnail (if available).
-
From the Icon and color list, select From taxonomy relation.
-
From the Relation list, select Asset media (AssetMediaToAsset).
-
-
In the Fields section, click Add
and choose From details component ‘AssetsEntityDetails.
-
In the Operations section, click Add Operation and select View detail page.
-
In the View detail page dialog box, next to the Link field, Add
, and select Asset detail for Link, accept the default values, and click Save.
-
Repeat steps 6 to 9 to add the following operations:
-
Download
-
Set as cover image
-
Archive
-
Delete
-
-
In the Indicators section, click Add Indicator and select Duplicates exist, leave the default values in the pop-up window and click Save.
-
Repeat step 11 to add Draft, Public links exist, Locked, and Processing indicators.
-
Click Save and close.
To add the Gallery Asset Selection component:
-
On the Tabs component page, with the Product Gallery tab selected, in COLUMN 1 beneath the Product Gallery Asset Search component, click Add component Add
.
-
In the Add component dialog box, choose the Selection component and, in the Add component dialog box, define the following:
-
In the Title field, type Gallery Asset Selection.
-
Click the Visible switch to make it active.
-
Click Add.
-
-
On the Tabs component page, click the newly created Selection component.
-
On the Selection component page, on the General settings tab, from the Linked search component list, select ProductGalleryAssetSearch.
-
Click the Show select all switch to make it active (On).
-
From the Operations display format list, select Icon + Label.
-
From the Alignment list, select Left.
-
Next to Selection pool, select the Page-specific pool option.
-
On the Operations tab, click Add definition button and select M.Asset.
-
Click Add Operation and select the Delete option.
-
In the dialog box, from the Relations list, select Product Gallery (ProductGalleryToAsset) and click Save.
-
Repeat steps 9 to 11 to add a Create public links operation and a Refresh renditions operation.
-
Click Save and close.
To add the Gallery Asset Creation component:
-
On the Tabs component page, with the Product Gallery tab selected, in COLUMN 2, click Add component Add
.
-
In the Add component dialog, select the Creation component and do the following:
-
In the Title field, type Gallery Asset Creation.
-
Click the Visible switch to make it active.
-
Click Add.
-
-
On the Tabs component page, click the newly created Creation component.
-
In the left pane, select General and, on the General page, click the Refresh page entity switch to make it active (On).
-
In the Linked search component section, select the Product Gallery Asset Search check box.
-
In the left pane, click the Linked items switch to make it active.
-
With Linked items selected, in the Linked items section, from the Label type list, select Custom.
-
Next to the Label field, click + Add translation.
-
In the Add translation dialog, click Choose existing and select T_system..AddToGallery.
-
For the search component, select Add approved assets for Product Gallery search.
-
Click Add definition and select Gallery Assets (ProductToGalleryAsset).
-
Click Save and close.
After you add the Product Gallery tab, you create the Product Gallery URL mapping asset Search component.
