Edit a processing flow
Sitecore Content Hub provides a visual representation of media processing flows and the tasks they contain.

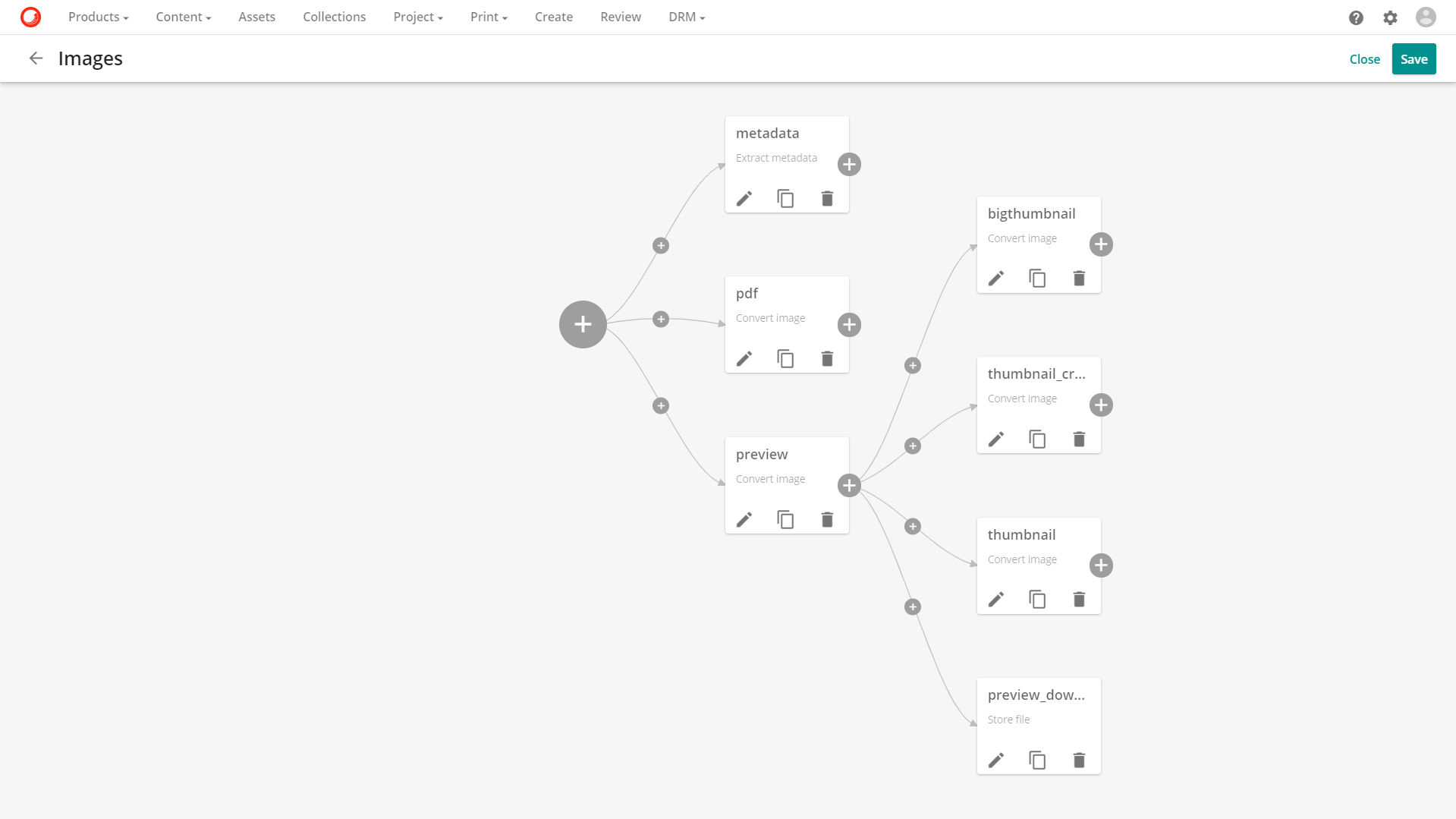

The following example shows the media processing flow for the Images set:
Using this visual canvas, you can edit the selected flow in a variety of ways.
To edit processing flows:
-
On the menu bar, click Manage
. -
On the Manage page, click Media processing.
-
On the Media processing page, select a processing set, then click the flow you want to update.
-
On the visual canvas, make required changes using the following actions:
Action
Result
Click a task.
Selects a task and displays the parameters tab.
Click Edit
.Unlocks the parameters tab for editing.
Click Remove
.Deletes the selected task and its child tasks.
Click Clone
.Clones the selected task, but not associated child tasks.
Left-click and drag the mouse.
Move around the canvas
Roll the mouse wheel.
Adjust the canvas zoom level.
-
Click Save.
By default, automatic reprocessing of renditions is disabled. You need to refresh the renditions of existing assets to apply your updated processing flow.
