Entity indicators

The Entity indicators component highlights information about an entity, for example when the entity is a Draft, is Locked, or has been Rejected. The component can include multiple indicators, each indicating distinct information about the entity and only appearing when a specific condition is met.

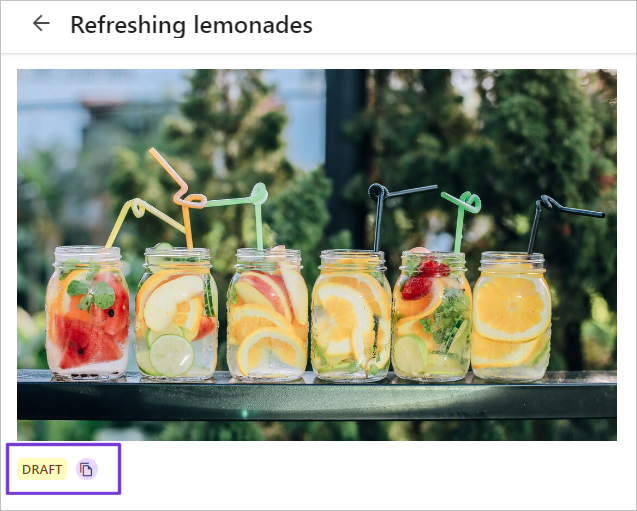

In the following example, the entity indicator component includes two indicators: a label displaying the entity's status (draft), and an icon indicating that the associated file is a duplicate.

Entity indicator example

To add an Entity indicators component:

  1. On the menu bar, click Manage .

  2. On the Manage page, click Pages.

  3. On the Pages page, select the details page you want to modify.

  4. On the Layout tab, add the page component.

  5. Click the component to open its detail page.

  6. On the component detail page, click Add indicator and, from the list, select one of the following indicators:

    Indicator

    Type

    Icon

    Description

    Cover image

    isMaster

    cover image

    The entity is a cover image.

    Draft

    draft

    draft icon

    The entity is a draft.

    Duplicates exist

    duplicate

    duplicates icon

    The entity is a duplicate file. To see the duplicate file ID and type, next to the image thumbnail, click All files More Actions icon > Show duplicate files.

    Lock

    lock

    closed lock

    The entity is locked and cannot be changed.

    Processing

    process

    process icon

    The entity is currently being processed.

    Publishing status

    publishingStatus

    publishing status

    The entity's publishing status (for example, Ready to publish and Published).

    Read only

    readOnly

    read only icon

    The entity is read-only.

    Rejected

    rejected

    read only icon

    The entity was rejected.

    Linked assets have been changed

    linkedAssetParentSync

    linked assets have been changed icon

    The asset has at least one child linked to a more recent main file. Restricted to M.Asset entities. Applies only to Adobe InDesign files.

    Custom

    customIndicator

    wrench icon

    A custom indicator, which can be configured based on a string, integer, or boolean value so that it only appears when a specific condition is met. A boolean value can be true, false, or empty.

  7. In the DISPLAY SETTINGS section, define the following properties.

    Field

    Description

    Display format

    The format of the indicator (icon, label, or icon + label).

    Icon

    Icon of the indicator when the format is icon or icon + label.

    Title

    Indicator text used for the tooltip or label.

    Color

    Color of the icon or label. Gray by default.

    Display if

    For a Custom indicator, use this section to specify the condition required for the indicator to appear. An example of this is displaying an indicator if a selected product is a variant.

    relationToMaster

    For a Cover image indicator, which relation to display if the entity is the master version.

  8. Repeat steps 6 and 7 until you have added all the indicators you want.

  9. Click Save.

Tip

You can add or remove indicators later by editing this component as needed.
