StateMachine viewer
The StateMachine viewer component displays the entity status, which is retrieved from the associated state flows. It can only be added to details pages.

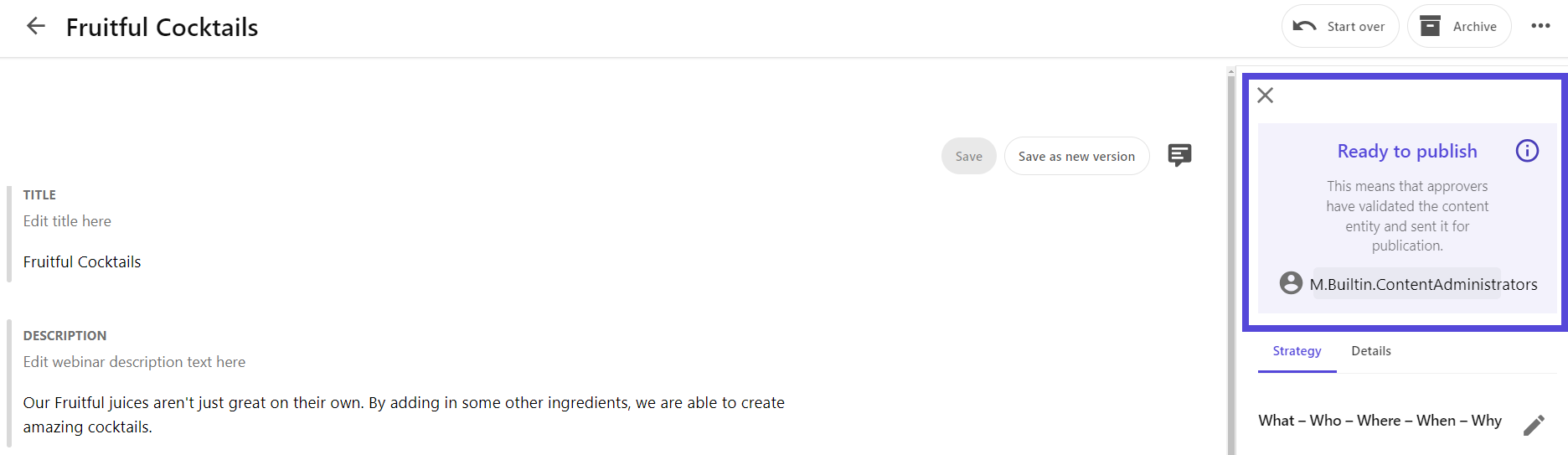

In this example, the Content detail page, which is associated with the Ideation state flow, includes a StateMachine viewer in the SIDEBAR ZONE that displays the current state of the item.
To see the full workflow and its details, an Info
button is added.
To add a StateMachine viewer component:
-
On the menu bar, click Manage
. -
On the Manage page, click Pages.
-
On the Pages page, select the page you want to modify.
-
On the Layout tab, add the page component.
-
Click the component to open its details page.
-
In the SELECTION OPTIONS section, select one of the following options:
Option
Description
All state flows
Every state flow associated with the page’s definition is shown.
Select a state flow
Only one of the state flows associated with the page definition is shown. Use the field provided to select the desired state flow.
-
In the DISPLAY OPTIONS section, select one of the following options:
Option
Description
Current state only
Only the current step in the state flow is displayed (for example, In review).
Horizontal steps
The steps of the state flow are displayed horizontally in a horizontal sequence, with the current status highlighted.
Vertical steps
The steps of the state flow are displayed in a vertical sequence, with the current status highlighted.
-
Turn the Show description or the Show assignee switch on or off to show or hide the description or assignees of the respective state flow without having to hover over it.
-
Click Save and close.

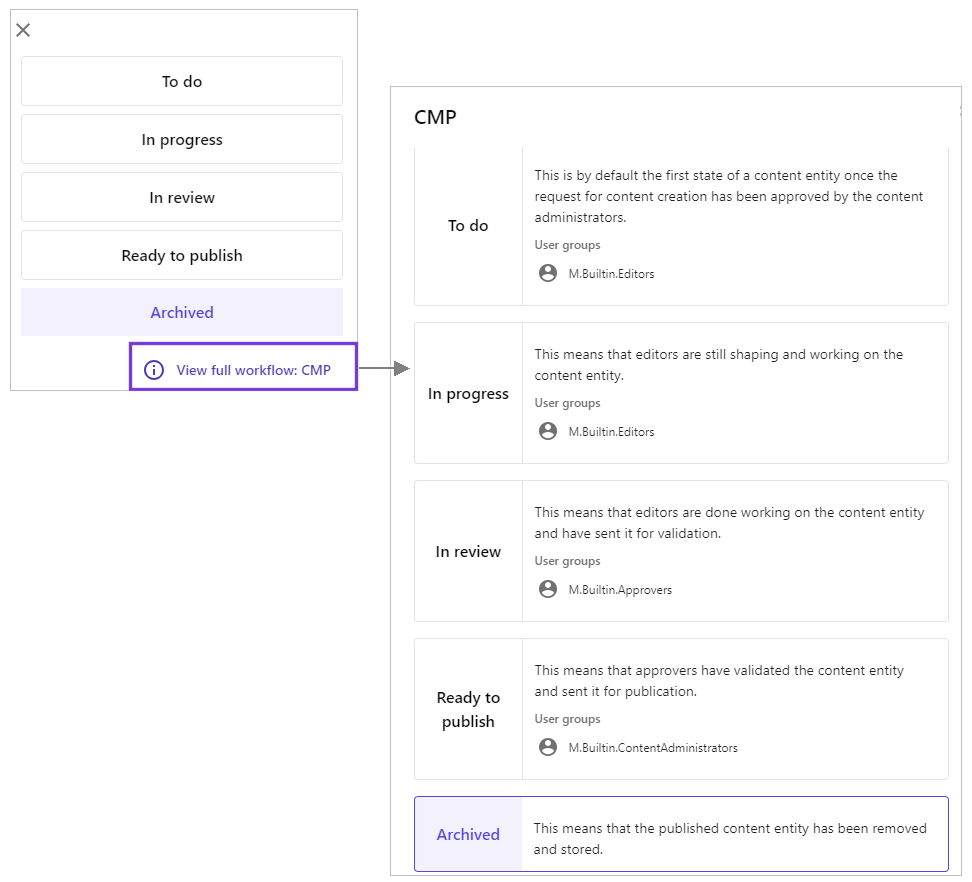

The Horizontal steps and Vertical steps display options can show a maximum of five steps. If more than five steps are available, only the current step is shown. Complex state flows cannot be displayed as horizontal and vertical steps; instead the current state is displayed alongside an Info button.
